PCISA-945GSE CPU Card

Page 22

3.2.4 Battery Connector

CN Label:

BT1

CN Type:

2-pin wafer (1x2)

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-6

The battery connector is for the system battery. The battery retains the system date and

time while the computer is turned off.

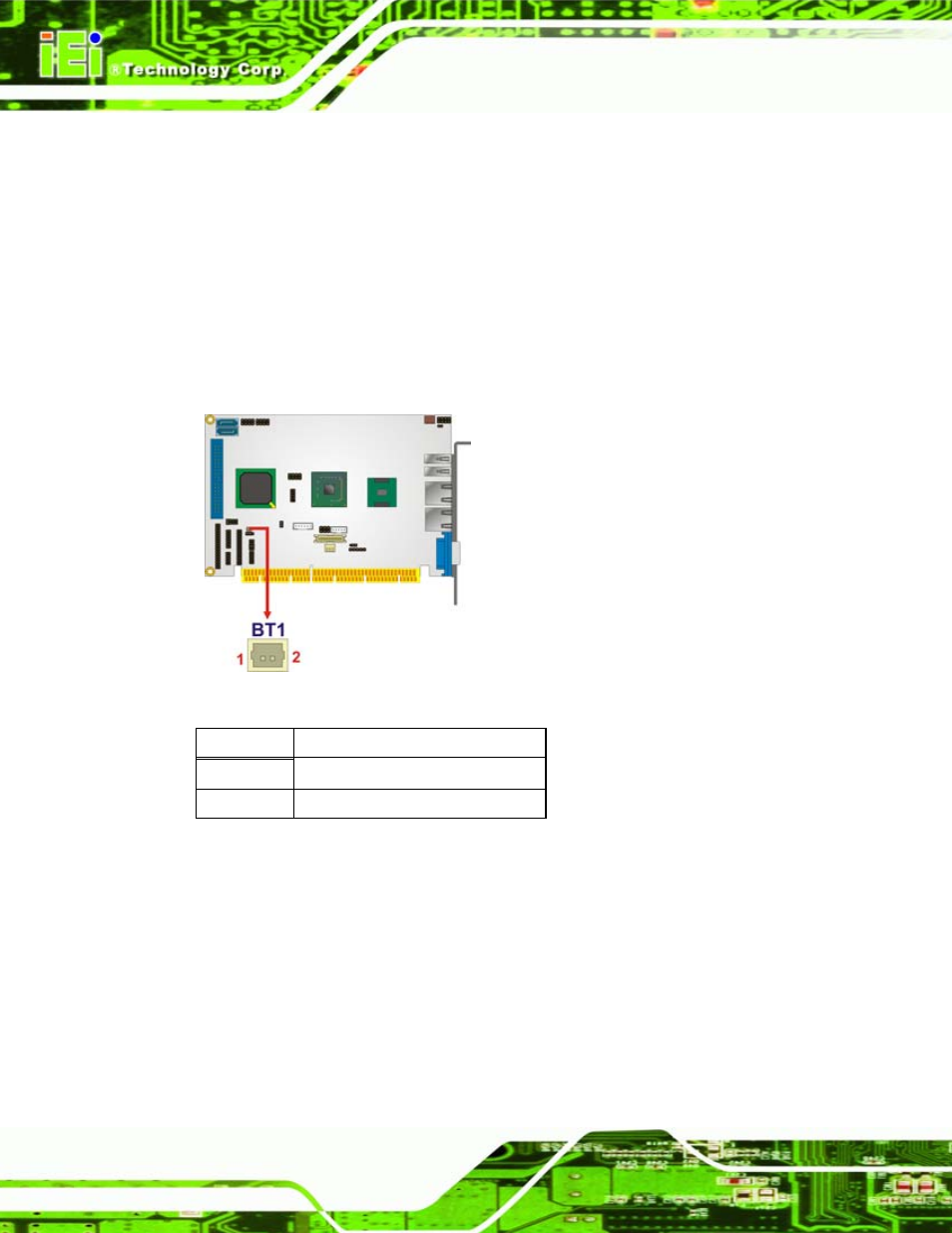

Figure 3-6: Battery Connector Location

PIN NO.

DESCRIPTION

1

Battery+

2

Battery-

Table 3-6: Battery Connector Pinouts

3.2.5 BIOS Programming Connector

CN Label:

JSPI1

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-7

The 8-pin SPI Flash connector is used for the BIOS.
