PCISA-945GSE CPU Card

Page 37

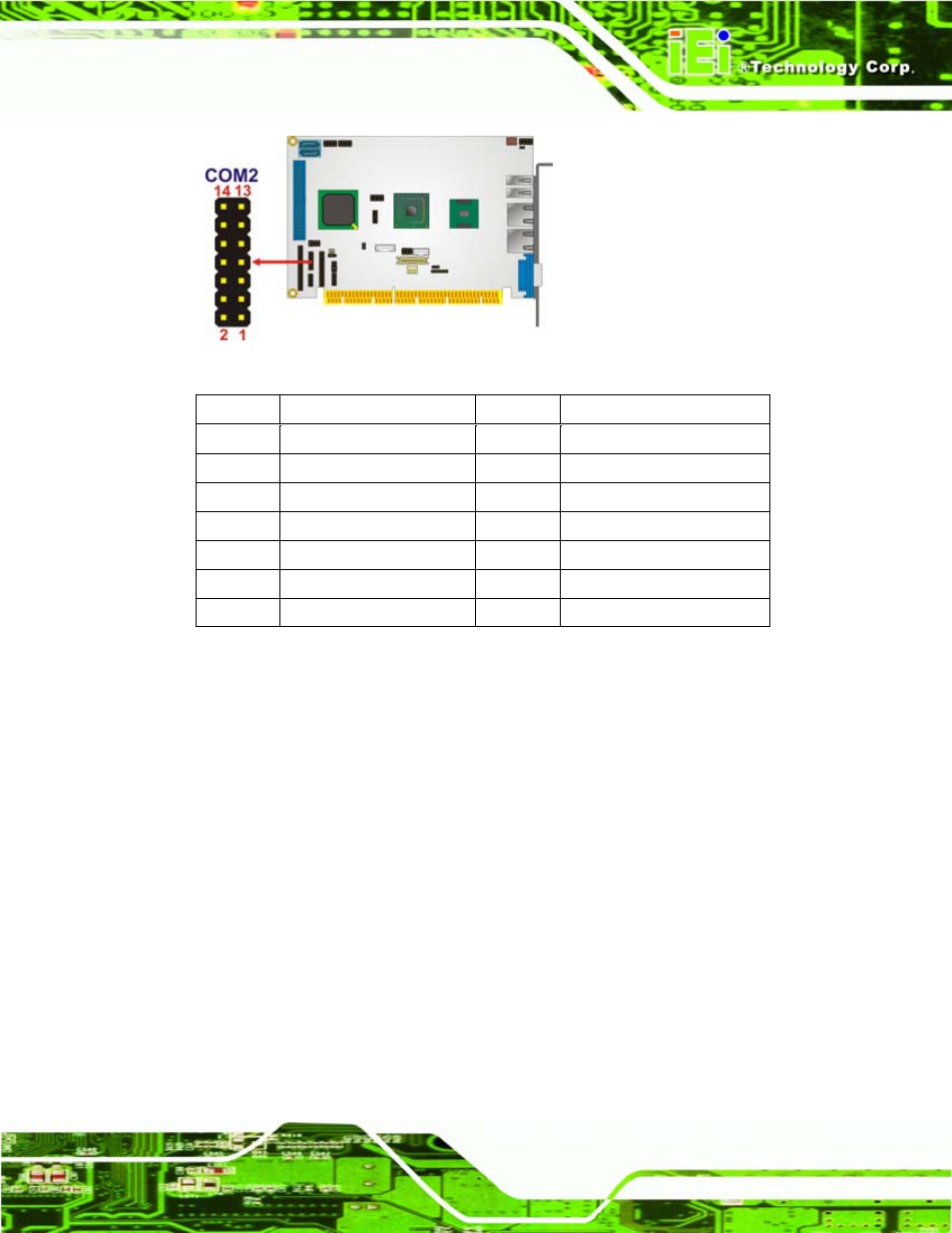

Figure 3-20: RS-232/422/485 Connector Pinout Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

Data Carrier Direct (DCD)

2

Data Set Ready (DSR)

3

Receive Data (RXD)

4

Request To Send (RTS)

5

Transmit Data (TXD)

6

Clear To Send (CTS)

7

Data Terminal Ready (DTR)

8

Ring Indicator (RI)

9

Ground (GND)

10

Ground (GND)

11

TXD485+

12

TXD485-

13

RXD485+

14

RXD485-

Table 3-20: RS-232/422/485 Connector Pinouts

3.2.19 SDVO Connector

CN Label:

SDVO1

CN Type:

FPC connector

CN Location:

See Figure 3-21

CN Pinouts:

See Table 3-21

The SDVO connector connects to an SDVO video card available from IEI. The SDVO

connector interfaces directly to the SDVO port on the Northbridge.
