PCISA-945GSE CPU Card

Page 28

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

27

GND

28

WRITE PROTECT#

29

GND

30

READ DATA#

31

GND

32

SIDE 1 SELECT#

33

GND

34

DISK CHANGE#

Table 3-11: Floppy Disk Connector Pinouts

3.2.10 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-12

The front panel connector connects to external switches and indicators to monitor and

controls the motherboard. These indicators and switches include:

ƒ Power

button

ƒ Reset

ƒ Power

LED

ƒ HDD

LED

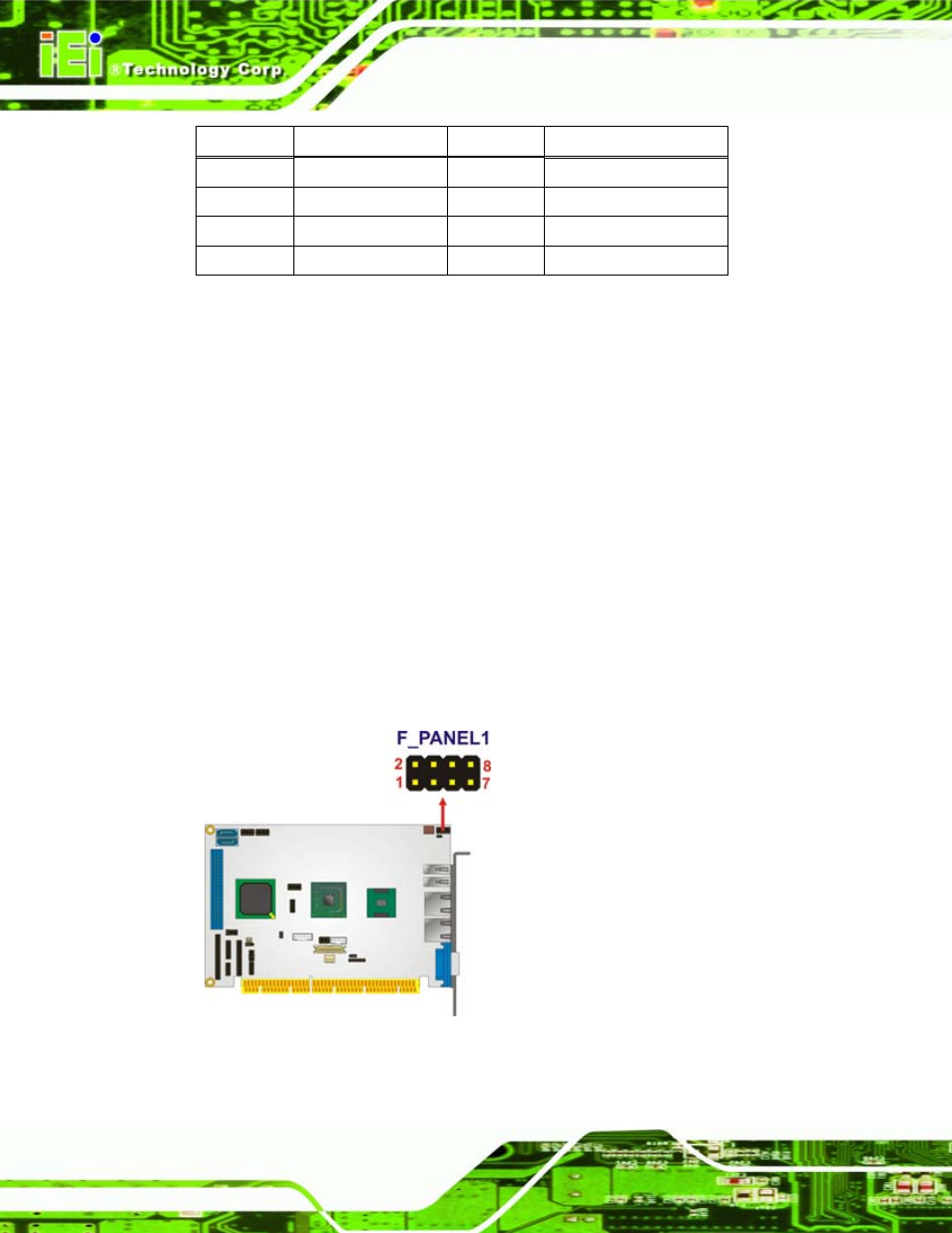

Figure 3-12: Front Panel Connector Pinout Locations
