ROCKY-3786EV CPU Card
43
CN Pinouts: See Table 3-6
The ATX power switch connector supports ATX power switch and enables power on/off
from the chassis.
PIN NO. DESCRIPTION
1 PWR_BUTTON+
2 PWR_BUTTON-
Table 3-6: ATX Power Switch Connector Pinouts

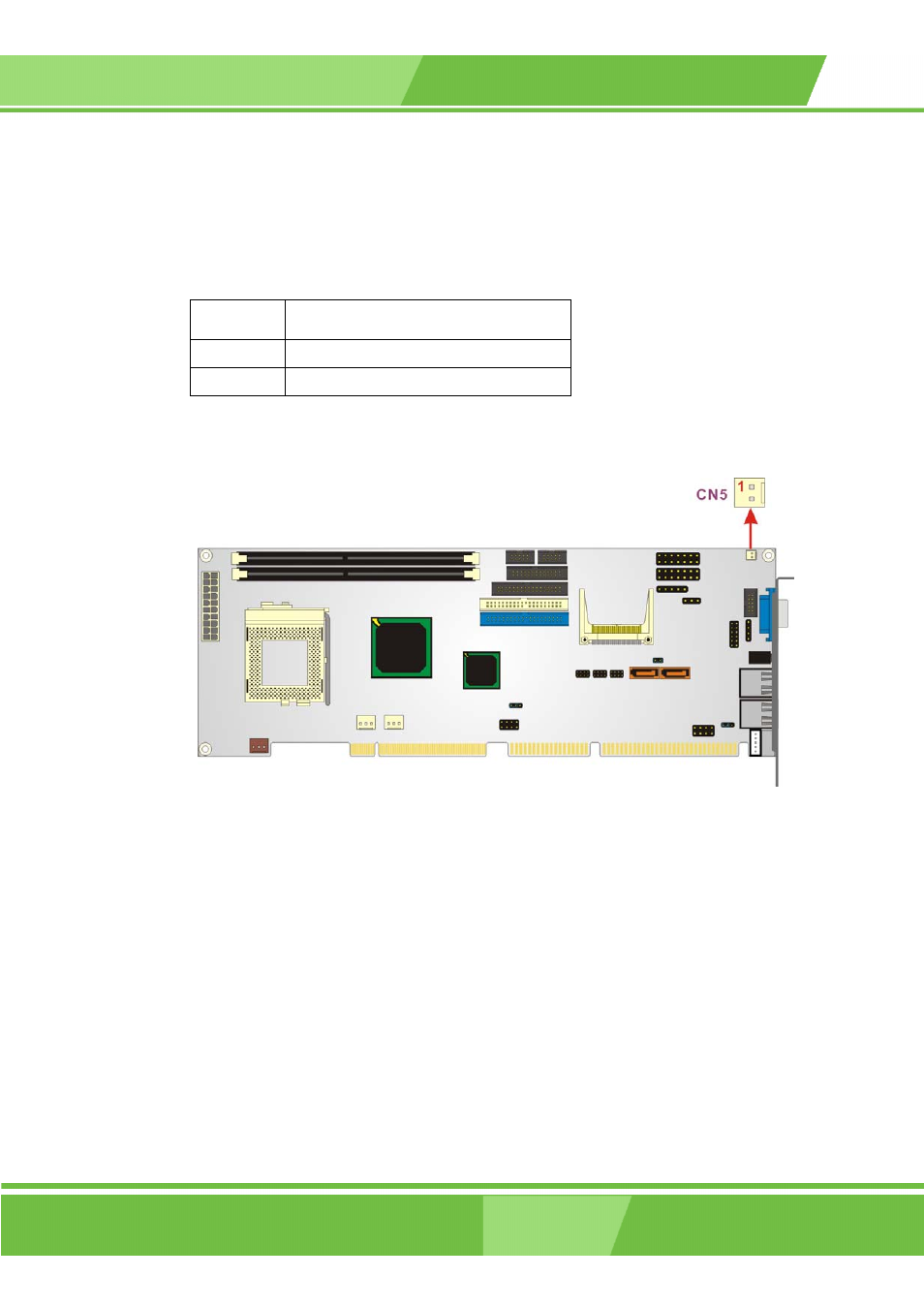

Figure 3-4: ATX Power Switch Connector Location
3.2.4 Audio Connector
CN Label: CN28
CN Type: 12-pin header (2x6)
CN Location: See Figure 3-5
CN Pinouts: See Table 3-7
The ROCKY-3786EV has a built-in AC ’97 AUDIO CODEC connector directly connected
to the SPEAKER-OUT, MIC-IN, LINE-IN and LINE-OUT.
