2 ZOLL M Series CCT
Reading the M Series CCT Display
The M Series CCT display is similar to the M Series display, except for the following:
• M Series CCT units display three traces (except when in PACER and DEFIB modes, when
display messages take the place of Trace 3).
• IBP and Temperature have data display areas (if the unit has these options).
The IBP and Temperature data display areas are described in detail in the IBP insert and
Temperature insert. See Fig. 2 for their location on the display.
The M Series CCT three Trace display areas are shown in Fig. 2. The trace type for each display is
as follows:
• Trace 1 - reserved for ECG.
• Trace 2 - type of trace determined by user.
• Trace 3 - type of trace determined by user.

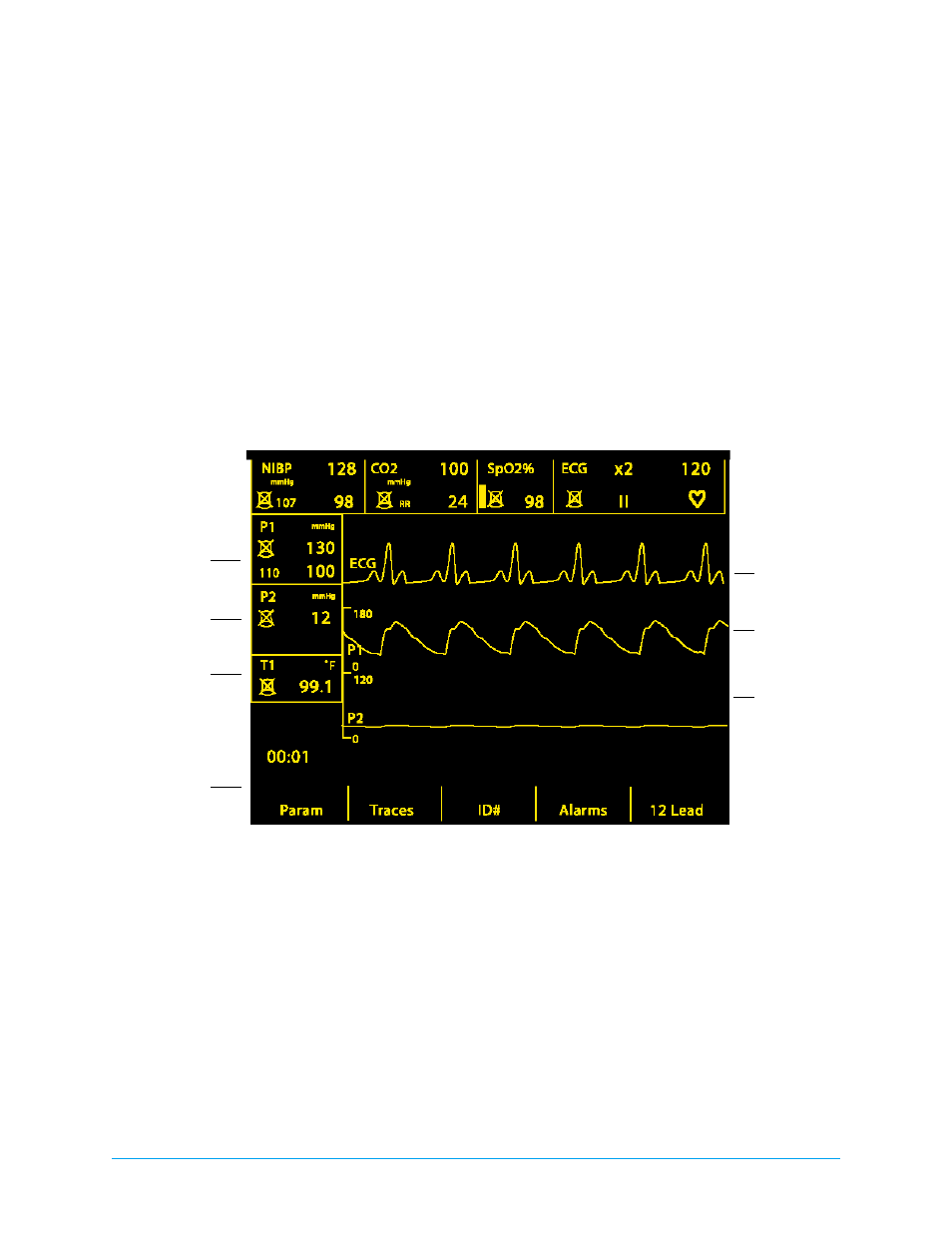

Figure 2: M Series CCT display
NOTE: Depending on the options included in the M Series CCT, the front panel and display may
slightly differ from the illustrations in this insert. Each data display area is explained in detail
in the applicable option inserts.
IBP Channel 1
(P1) Data
Display Area
Softkey Labels
Trace 1
ECG Trace
Display Area
Trace 2
Display Area
Trace 3
Display Area
IBP Channel 2
(P2) Data
Display Area
Temperature
Data Display
Area
