ZOLL M Series CCT
Changing the Display Traces (cont.)
4. If “3 Lead ECG” ...(cont.)
• Standard lead groups are listed below.
- I, II, III
- aVR, aVL, aVF
- V1,V2, V3
- V4, V5, V6
5.
If “Set Trace 2” or “Set Trace3” is selected:
The Trace Options menu displays (see Fig. 4):

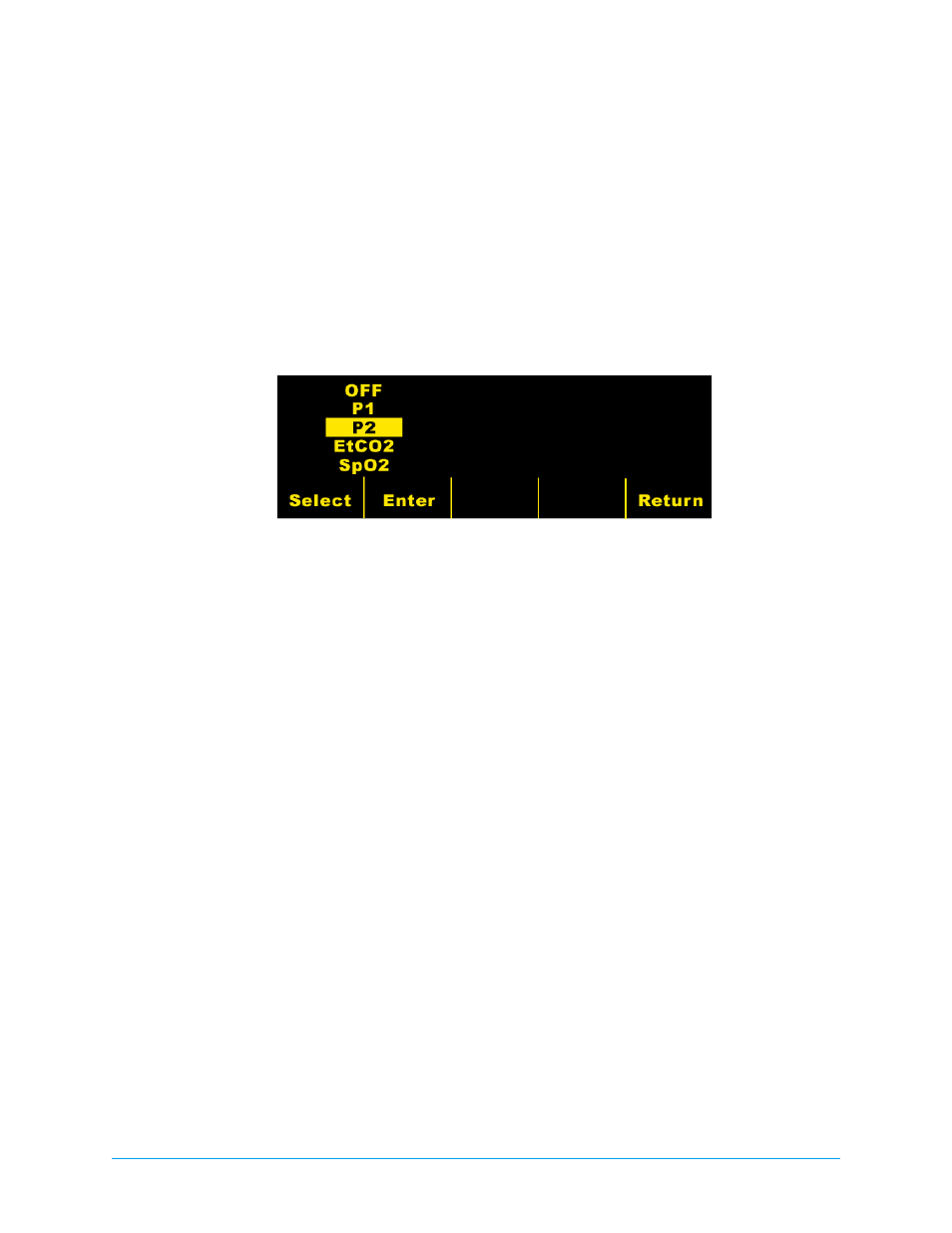

Figure 4: Trace Options Menu
6.
Press the
Select
softkey to select the type of waveform you want to display. You cannot
select a waveform that is already displayed.
7.
Press the
Enter
softkey. The unit displays the waveform for the selected parameter.
To change the other trace, repeat steps 1 through 7.
