MODEL NUMBER AND OPTION SELECTIONS
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > FAX (626) 855-4862

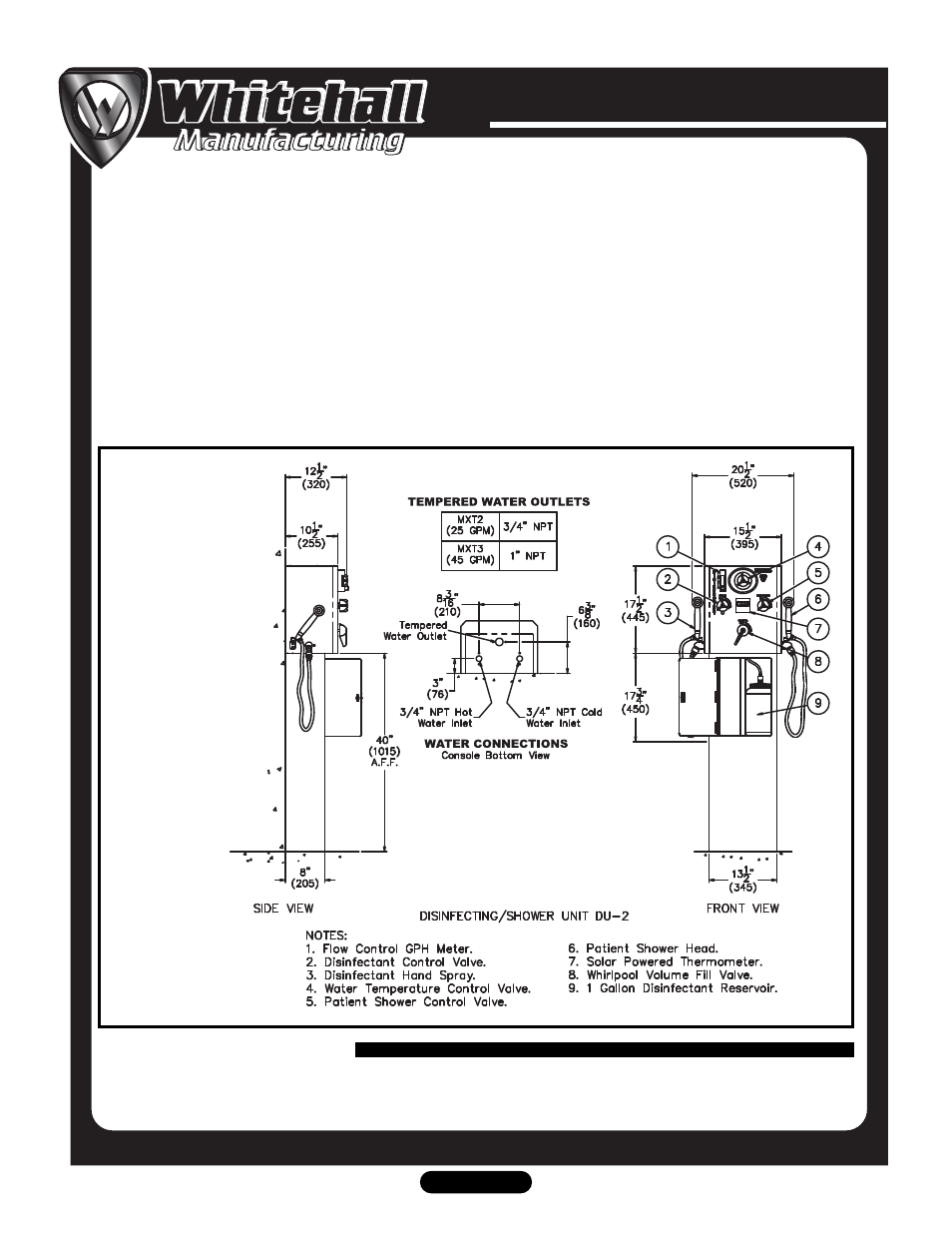

Disinfecting/Shower Unit
All dimensions are nominal and subject to manufacturer’s
change without notice. Whitehall assumes no responsibility
for use of void or suspended data. © 2005 Whitehall
Manufacturing, A Division of Acorn Engineering Company.
Please visit www.whitehallmfg.com for most current
specifications.
Model Number & Options_____________________________________________ Quantity_____________
Company_________________________________________________________ Date___________________
Contact________________________________________________ Title______________________________
Approval for Manufacturing/Signature_______________________________________________________
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Series
-DU Disinfecting/Shower Mixing Unit
Type
-2 On Floor
Mixing Valves (Must Specify)
-MXT2 Thermostatic Mixing Valve (25 G.P.M.)
-MXT3 Thermostatic Mixing Valve (45 G.P.M.)
DU-2 Last Update: 1/1/05
Suffix Options
-CL Cylinder Lock on Access Door
-EG Enviro Glaze Color Powder Coating -
Specify Color:_______________________
(Special Finish Consult Factory)
-IOP On/Off Button, Patient Shower Handle
-QDD Quick Disconnect, Disinfectant Sprayer
-QDS Quick Disconnect, Stainless Steel Filler Hose
-QPD Quick Disconnect, Patient Shower
-SAD Side Access Door
-SSF Stainless Steel Filler Hose
-TSF Tub Filler Spout
-XLD Extra Long Hose, Disinfectant Sprayer
-XLP Extra Long Hose, Patient Shower
