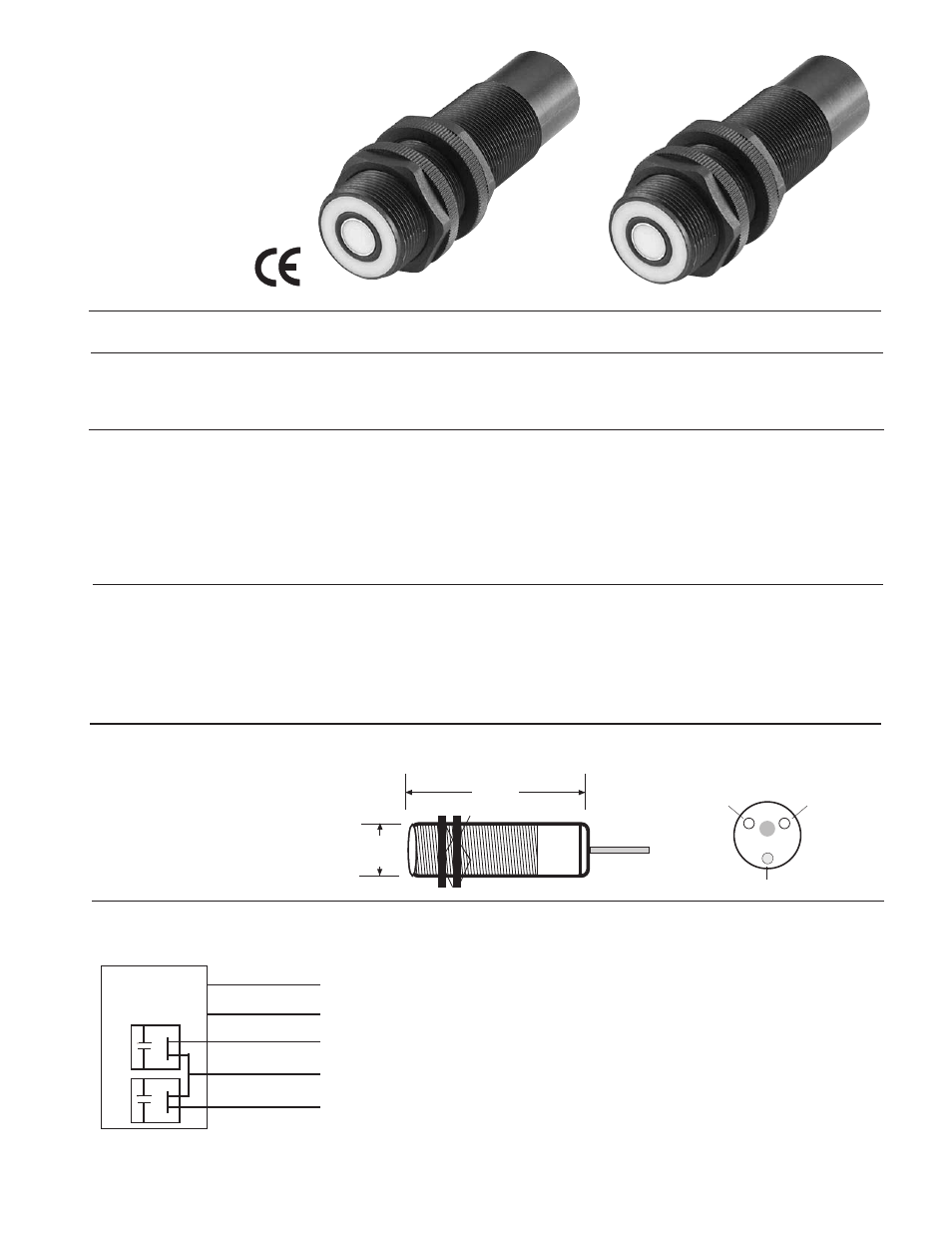

Warner Electric Ultrasonic Sensors with Solid State Relay Output - Manual (Page 2)

Ultrasonic Sensors
Switching functions/output 2 Solid State Relays 2 Solid State Relays
Ordering Model description UT30UP-DSS5-1016-CSHT UT30UP-DSS5-2032-CSHT
Information
Part number
7600-448-003 7600-448-004
Electrical data
Voltage range min./max. 20-30V DC reverse polarity protected 20-30V DC reverse polarity protected
Input current 50mA 50mA
Transducer frequency 212 KHz 150 KHz
Short circuit protected Yes Yes
LED Yes - green (not de tect ing), red (detecting)
Yes - green (not detecting), red (de tect ing)
Response time 30 mSec 50 mSec
Range control Range and Hysteresis Range and Hysteresis
Mechanical data
Temperature range min./max. 0°C/+60°C / 32°F/140°F 0°C/+60°C / 32°F/140°F
Degree of protection IP 65/NEMA 12 IP 65/NEMA 12
Body material Valox plastic Valox plastic
Termination cable 2 m/6 ft. PVC 4 x 22 gauge PVC 4 x 22 gauge
Plug/socket Versions available to order Versions available to order
Accessories 1) Brackets 1) Brackets
Humidity 0-95% non-condensing 0-95% non-condensing
1) Brackets for M 30 x 1.5
Ordering Information
Plastic - BK5-D34PA
Part number 596-0223-041
Metal - M 30 ST
Part number 7430-448-003
Wiring Data
INPUT
POWER
blu
blk
brn
yel
wht
with Isolated Solid State
Relay Outputs
fitted with Range
and Hysteresis Control
Sensing range 101..1016 mm 203..2032 mm
(4-40") (8-80")
Threaded
plastic barrel
M 30 x 1.5
Threaded
plastic barrel
M 30 x 1.5
20-30V DC
GND
N.O.
COM
N.C.
Di men sions
Output Specification
• 2 x Solid state relays N.O. / N. C.
• 160V AC or V DC 100mA con tin u ous
• Short circuit protected
• 1500 volts RMS isolation
Adjustment Pots
Detection and Hysteresis
Control
P1 P2
LED
(Hysterisis) (Range) 104 mm
4.1"
1.18"
30mm
