Programming
1.Connect the supply
voltage to the wires noted
in the wiring diagram.
2.Aim the light spot at the
target mark. For glossy or
reflective surfaces, the
sensor should be angled
at 10° to 15° off the perpendicular axis from the target.
3.Press the Teach push button on the sensor or apply V+
to the Teach Input for a minimum of 50 milliseconds. The
LED should flash slowly (at a rate of approximatel 1 Hz).
4.Aim the light spot at the background.
5.Press the Teach push button on the sensor or apply V+
to the Teach Input for a minimum of 50 milliseconds. The
LED will now turn on when the target mark is present
and off when it is absent after a successful teach. If the
teach was not successful or the contrast was not
sufficient, the LED flashes quickly (at a rate of
approximately 4 Hz). Programming the MCS-638 as
indicated above sets the switching threshold exactly in
the middle of the target and background values. The
above procedure is for Light Operate mode. For Dark
Operate mode, reverse steps 2 and 4.

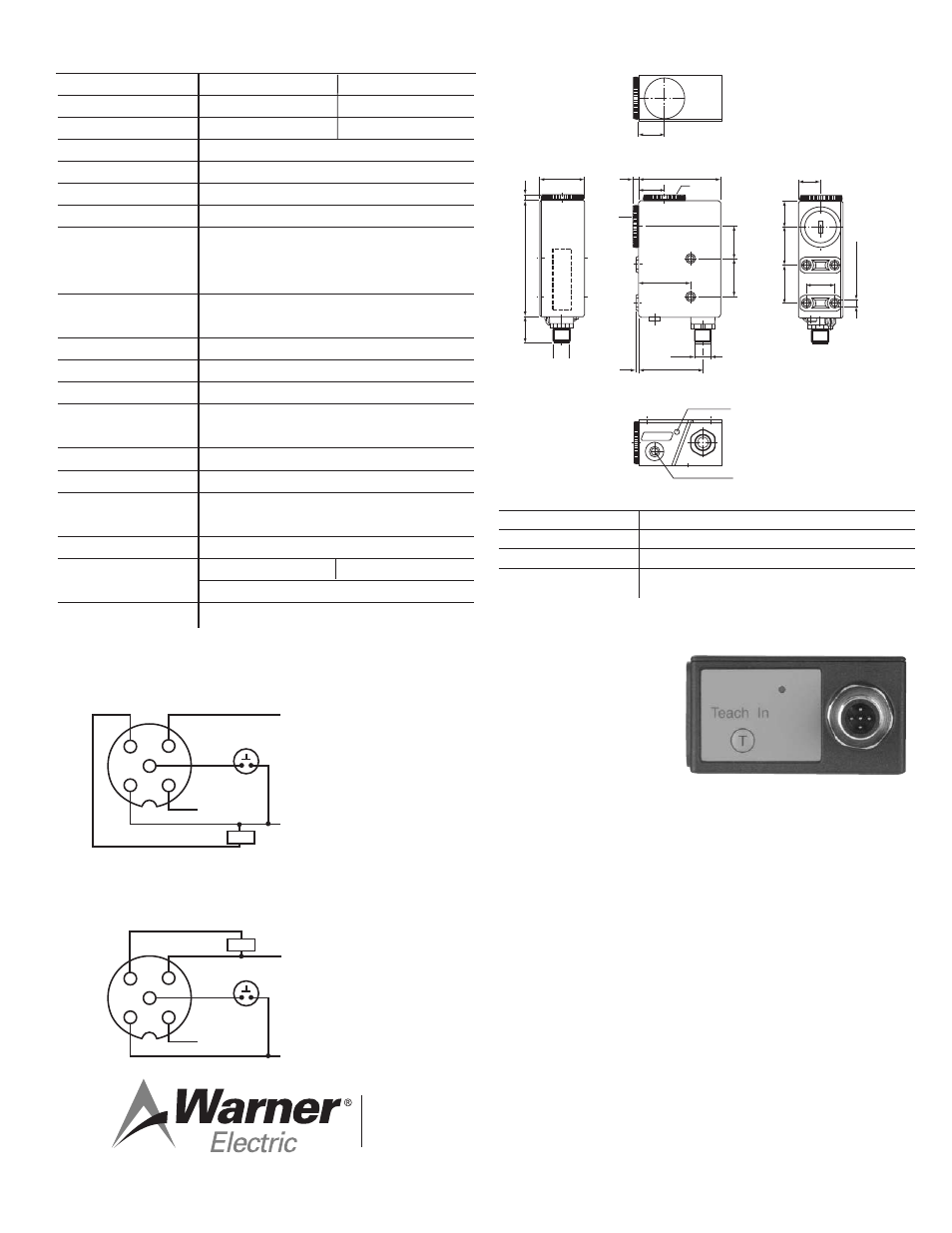

Model Number MCS-638-3 MCS-638-4
Part Number 7135-448-011 7135-448-012
Sensing Range 9.5 mm ± 3 mm 25 mm ± 6 mm
Sensitivity Adj. Yes (Push-Button Teach)
Output 1 Push-Pull (NPN/PNP)
Load Current 200 mA Max
Voltage Drop ≤ 2.5VDC
Short Ciruit and
Overload
YES
Protection
Reverse Polarity
YES
Protection
Supply Voltage
10-30 VDC
Voltage Ripple 10%
LED Indicator YES
Current
≤ 70 mA
Consumption
Operating Mode
Light on/Dark on
Response Time 30 µs
Switching
16.5 kHz
Frequency
Protection(IEC)
IP 67
Light Spot Size 1 mm x 4 mm 2 mm x 8.5 mm
and Orientation Parallel to Housing
Light Source Green, Red, or Blue LED
Teach In
LED
Yellow: Output Status
Yellow: (flashing): Contrast not found
from programmed values
Teach Push Button
19
(.75)
16.5
(.649)
M5x8
Scr
ew
Depth
5
*Interchangeable
60.8
(2.4)
Cover*
4
(.16)
19
Lens*
38.6
(1.52)
23.5 (.925)
28 (1.1)
M12x1
47.9
(1.88)
28 (1.1)
19 (.75)
28 (1.1)
21 (.827)
33
(1.3)
4
(.16)
85.6 (3.4)
19 (.75)
1.5
(.06)
Specifications Electrical Mechanical Data
4 3
2 1
Black
Blue
Brown
Gray
Load
(-)
(+)
White (no connection)
Optional Customer Supplied
Pushbutton for Remote Teach
Male Receptacle End View
NPN OUTPUT WIRING
4 3
2 1
Black
Blue
Brown
Gray
(-)
(+)
White (no connection)
Optional Customer Supplied
Pushbutton for Remote Teach
Male Receptacle End View
PNP OUTPUT WIRING
5
5
Load
Wiring
Housing Material Makrolon
Lens Material Glass
Weight 7.1 oz
Connection
Quick Disconnect
(2 Meter Cable Included)
