Parts List for kit 5200-101-011
Item Quantity
Part Name
1
1
Bracket
2
4
Screw, Flat Head
3
1
Box, Conduit
4
1
Plug, Protective
5
2
Grommet, Wire
6
2
Spacer, Terminal
*7
2
Cap, Terminal
8
1
Screw, Hex, Washer Head
Green
8-1
1
Ring, Terminal
*9
2
Screw, No. 8 Brass
*9-1
2
Ring, Terminal
10
1
Cover
11
1
Screw, Hex, Washer Head
12
1
Plug, Protective
*Item 7 - Cap, Terminal, Item 9-1 - Ring, Terminal, and Item 9 - Screw, No.
8 Brass, are provided in terminal Accessory Kit 5311-101-001.
Note: All mounting screws are self-tapping.
Introduction
Conduit box kit No. 5200-101-011 plus field/
magnet terminal accessory kit, contains all
components needed to assemble a conduit box
for PB-825, 1000, 1225, 1525, EB-825, 1000,
1225, EC-1000, 1225 clutches and brakes. This
conduit box will provide a proper means for wiring
terminations and conforms to the requirements of
Underwriters Laboratories.
Failure to follow these
instructions may result in product damage,
equipment damage, and serious or fatal injury
to personnel.
Do not connect rigid conduit
directly to the conduit box. A minimum of 12”
of flexible liquid tight conduit or other suitable
flexible wiring with appropriate fittings is
required. Flexible conduit is required to prevent
side loading of bearing on bearing mounted
clutches and brakes and possible deformation
of the conduit box or clutch/brake components
during assembly.
Step 1
Assemble a customer supplied flexible wiring
connector into the desired end of the conduit box
(3). Press protective plug (4) into unused conduit
hole.
Thread green washer head hex screw (8) into round
hole in base of conduit box. Place terminal ring (8-1)
over screw before inserting.
Snap two wire grommets (5) into square holes in
conduit box base. The grommet crowns should be
toward the outside of the box and the rubber
flanges should be on both sides of the conduit box.
Push two terminal spacers (6) through rubber
grommets. (See Figure 1)
11
10
*7
*9
*9-1
6
3
5
4
8
8-1
12
2
1

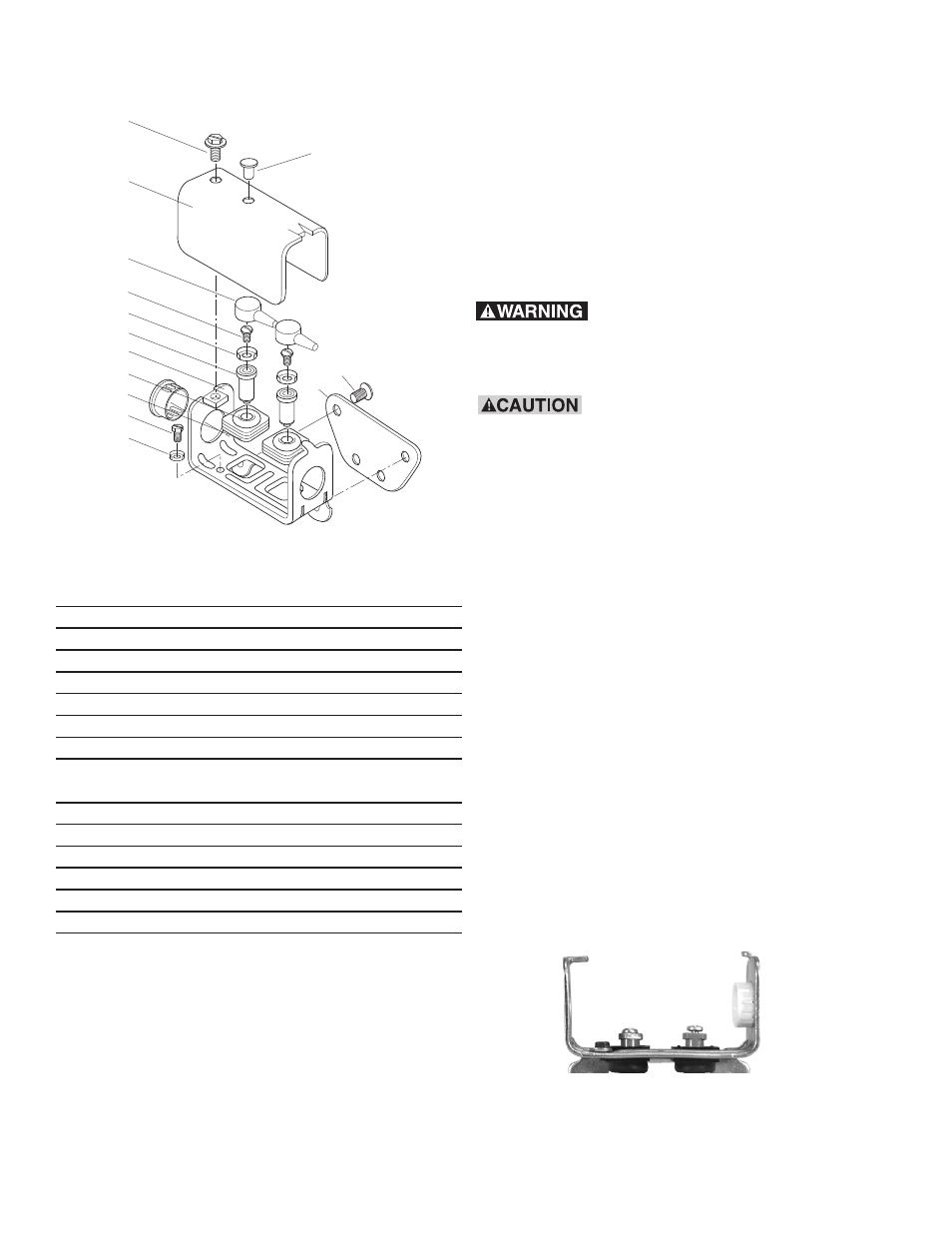

Components
Figure 1
