2 Warner Electric • 800-825-9050 819-0200 • P-1393
Introduction
Conduit box kit No. 5200-101-012 contains all
components needed to assemble a conduit box for
Warner Electric SF-825 through 1525 and EC-825
clutch fields. Wiring terminations are not provided.
Consult local electrical codes for proper wiring
terminations required. This conduit box will provide a
proper means for wiring terminations and conforms to
the requirements of Underwriters Laboratories.
Failure to follow these instructions
may result in product damage, equipment damage,
and serious or fatal injury to personnel.
Do not connect rigid conduit directly
to the conduit box. A minimum of 12” of flexible
liquid tight conduit or other suitable flexible wiring
with appropriate fittings is required. Flexible wiring
is required to prevent side loading of bearing on
bearing mounted clutches and possible
deformation of the conduit box or components
during assembly.
Step 1
Assemble a customer supplied flexible wiring
connector into the desired end of the conduit box (3).
Press protective plug (4) into unused conduit hole.
Thread green washer head hex screw (6) into round
hole in base of conduit box. Place terminal ring (6-1)
over screw before inserting.
Insert wire retainer (5) into square holes in conduit box
base. Insert wire retainer from the bottom of the
conduit box, longest portion of retainer towards
mounting flange. (See Figure 1)

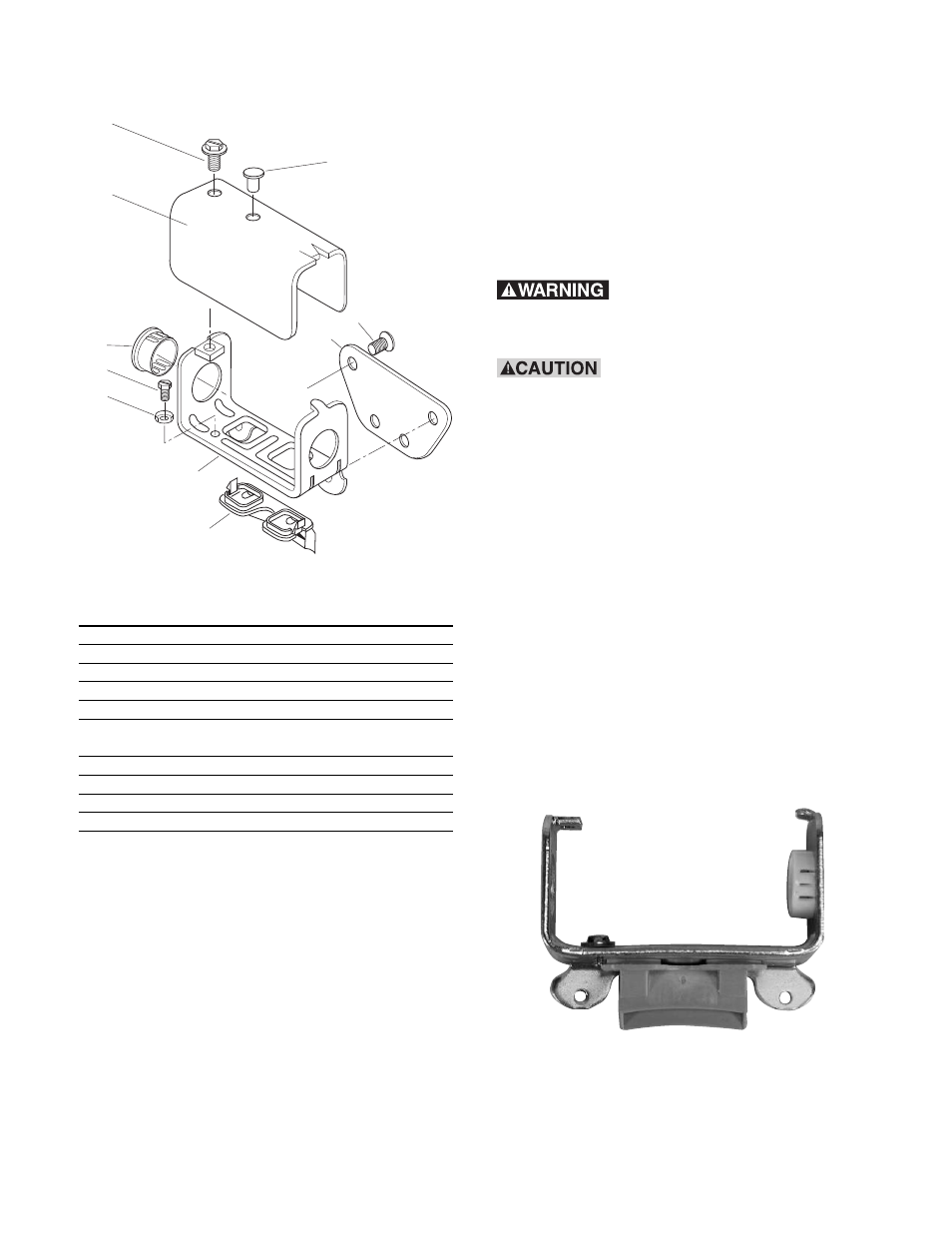

Figure 1
Parts List for kit 5200-101-012
Item Quantity Part Name
1 1 Bracket
2 4 Screw, Flat Head
3 1 Box, Conduit
4 1 Plug, Protective
5 1 Retainer, Wire
6 1 Screw, Hex, Washer Head
Green
6-1 1 Terminal, Ring
7 1 Cover
8 1 Screw, Hex, Washer Head
9 1 Plug, Protective
Components
Note: All mounting screws are self-tapping.
8
7
4
6
6-1
9
2
1
3
5
