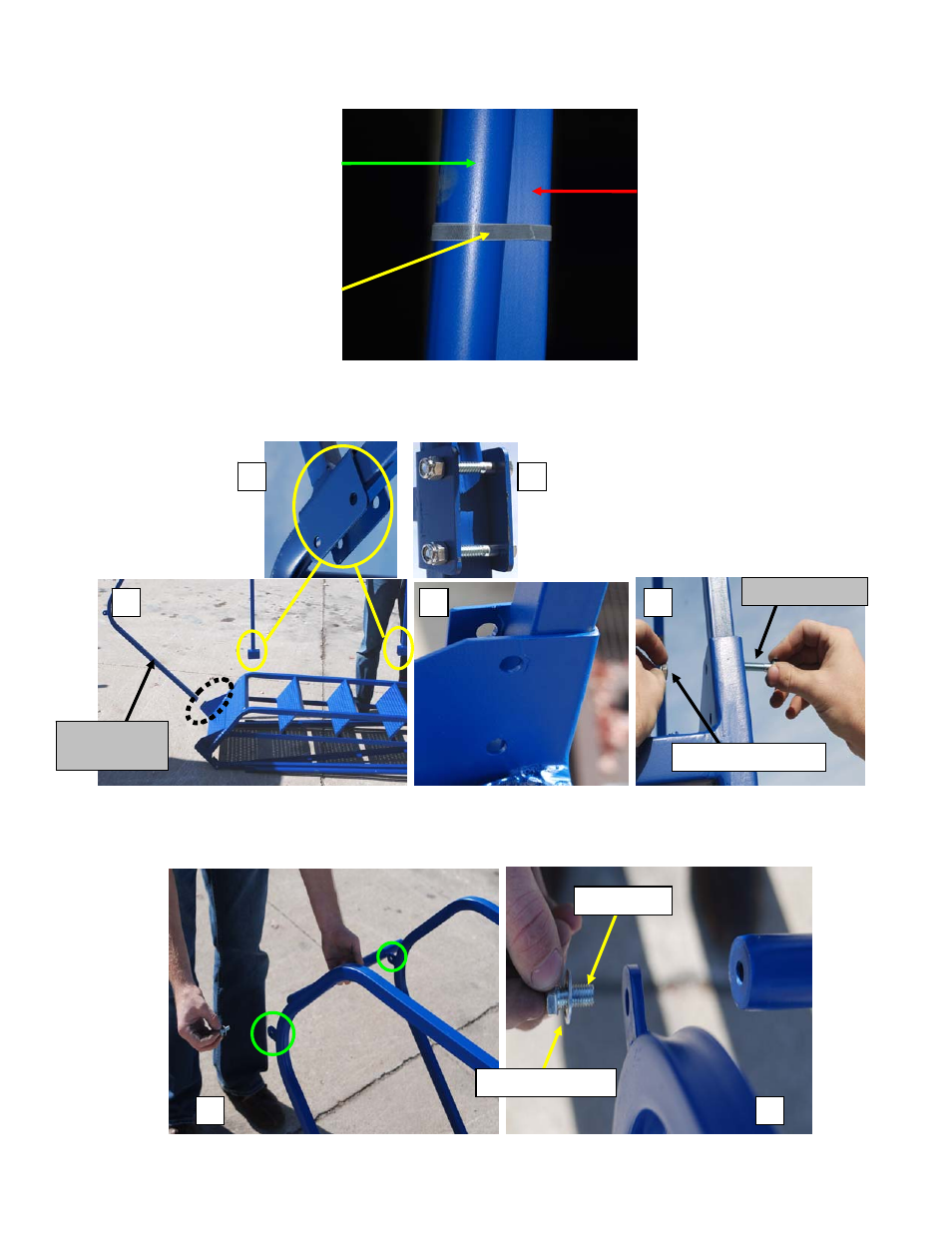

Instruction 7: Rotate the free ends of the horizontal braces until they are parallel to the back legs. Secure
the braces to the legs using the self-fastening straps. The strap should be fastened near the top of the
brace.
Horizontal
brace
Back leg
Self-fastening
strap
Instruction 8: Turn the ladder over (step weldment face up). Install the handrails by first inserting the leg
portion into the handrail bracket (dotted circle) on the platform. Then slide the integral handrail brackets
(solid circles) into position. Attach two 1-1/2in bolts and two 5/16in. lock nuts to each bracket.
11
4 5
1-1/2in. Bolt
1 2 3
Leg portion
of handrail
5/16in. Lock Nut
Instruction 9: Attach the Handrail Support Tube (7) to the top of the handrails. Slide a 5/16in washer onto
each 3/4in. bolt and then feed the bolts through the handrail support brackets (circled) and into the threaded
openings in the safety bar.
3/4in. Bolt
Safety
Bar
5/16in. washer
Handrail
1 2
