TREND EM3_CT_N User Manual
Page 15
Commissioning
PowerRail303
Page 13

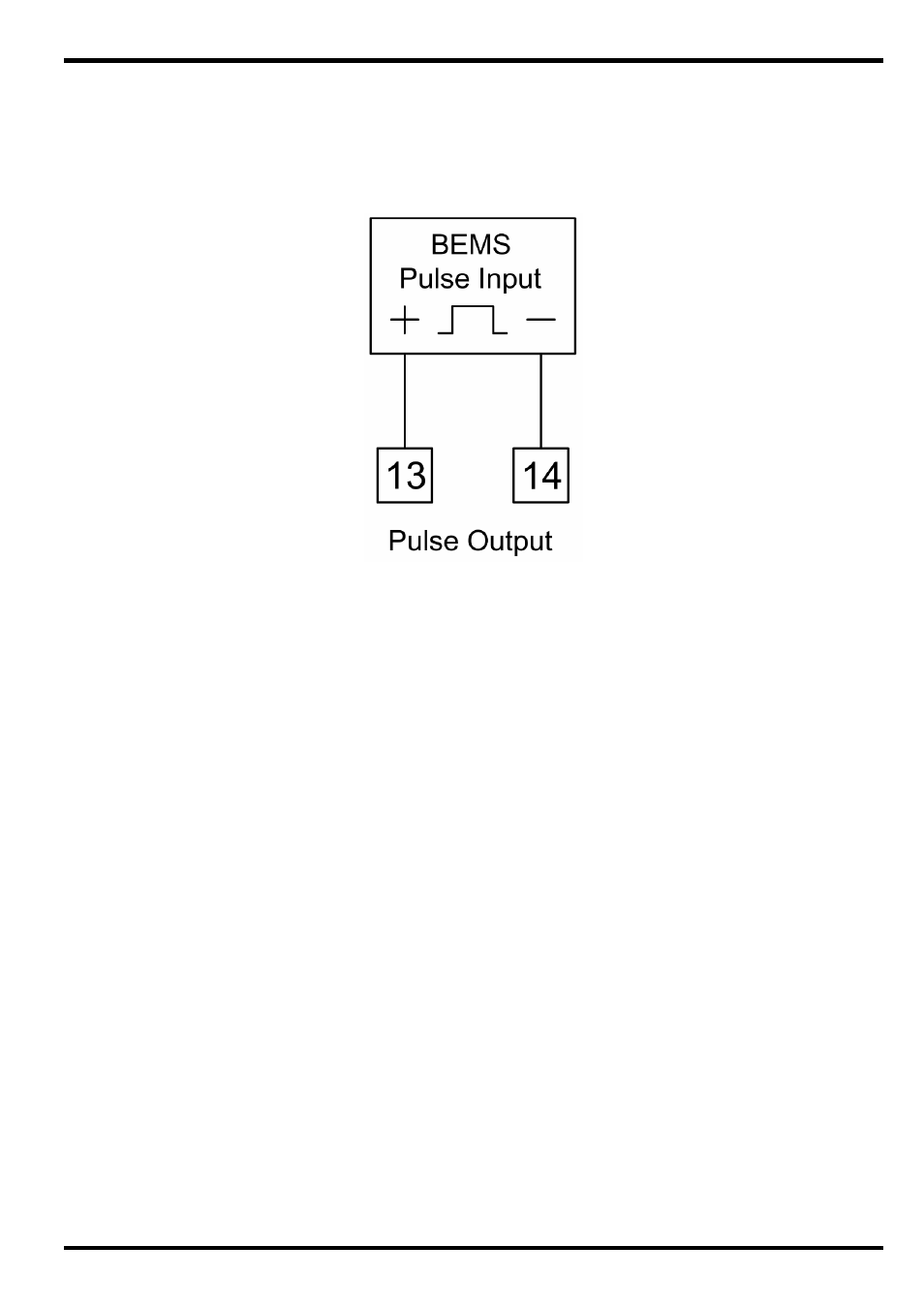

5.2 Pulse Output Connection
The pulse output takes the form of an isolated volt free normally open contact pair.
The contacts are isolated from all other circuits (2.5kV / 1 minute).
The pulse can be used as an input to a remote counter, pulse logger, building energy management
system etc.
5.3 Rail Mounting
The Power
Rail 303 enclosure conforms to DIN 43880, 6 Modules wide. The unit is therefore
compatible with a number of standard DIN distribution systems with 45mm cut-outs. The Power
Rail 303 should be mounted on a 35mm, symmetric DIN rail of minimum length 106mm.
