WaveStation 3000 Function and Arbitrary Waveform Generator

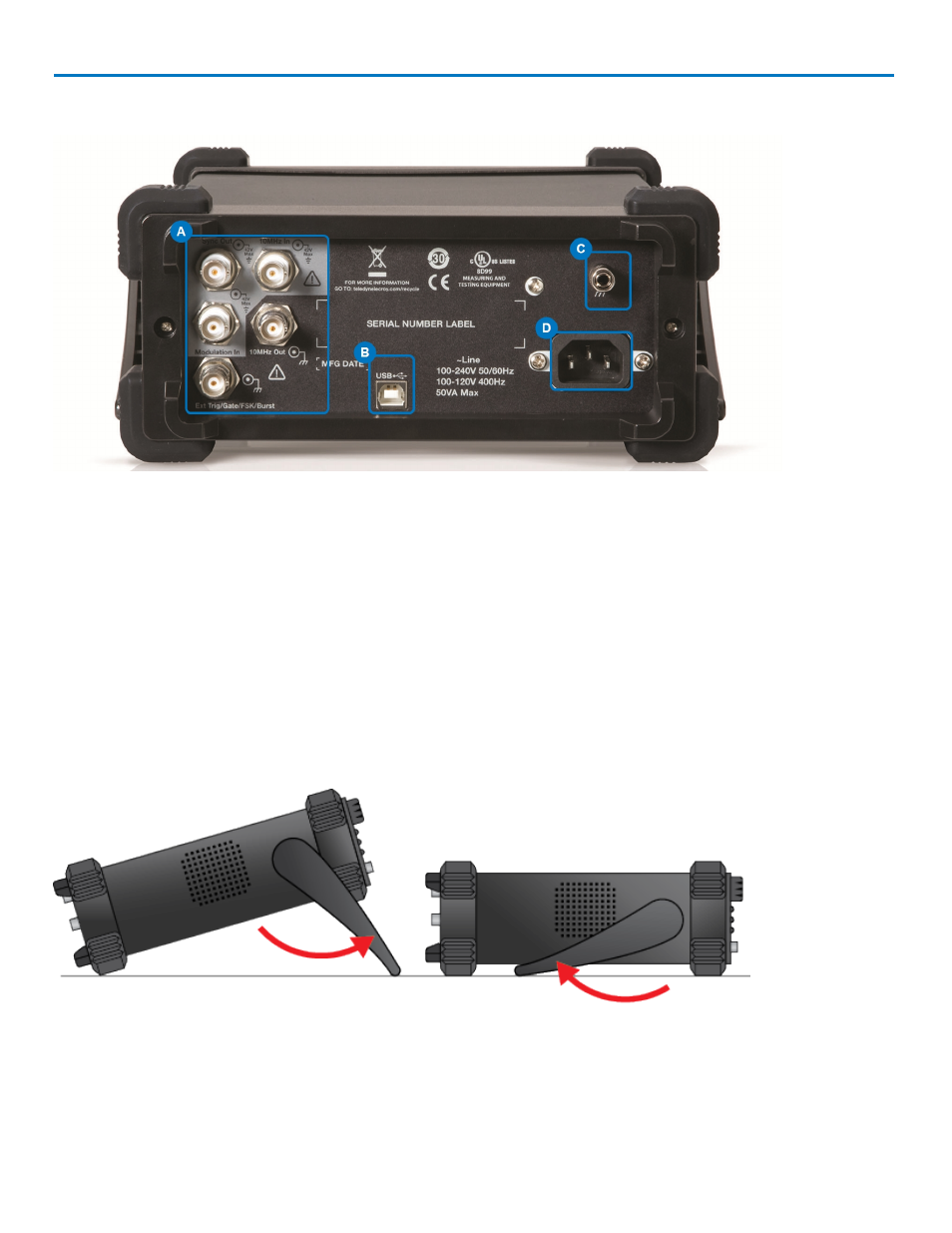

Back Panel

A. Input and Output BNC Connectors - provide 10 MHz In, 10 MHz Out,Modulation In, Synch Out, Ext

Trig/Gate/Fsk/Burst Out.

B. USB Connector - USB 2.0 Type B, used for making USBRAW or USBTMC connections.

C. Ground Connector

D. AC Power Connector

Adjusting the Viewing Position

The built-in carrying handle can be used to support the weight of the product and adjust the viewing position.

Gently pull both arms away from the sides of the WaveStation to unlock the mechanism, then rotate the
entire handle toward you until it snaps into the upright position.

4

922869 Rev B
