Teledyne LeCroy PCIe 3.0 Mid-Bus Probe Installation Guide Version 1.2
28
5 Installation

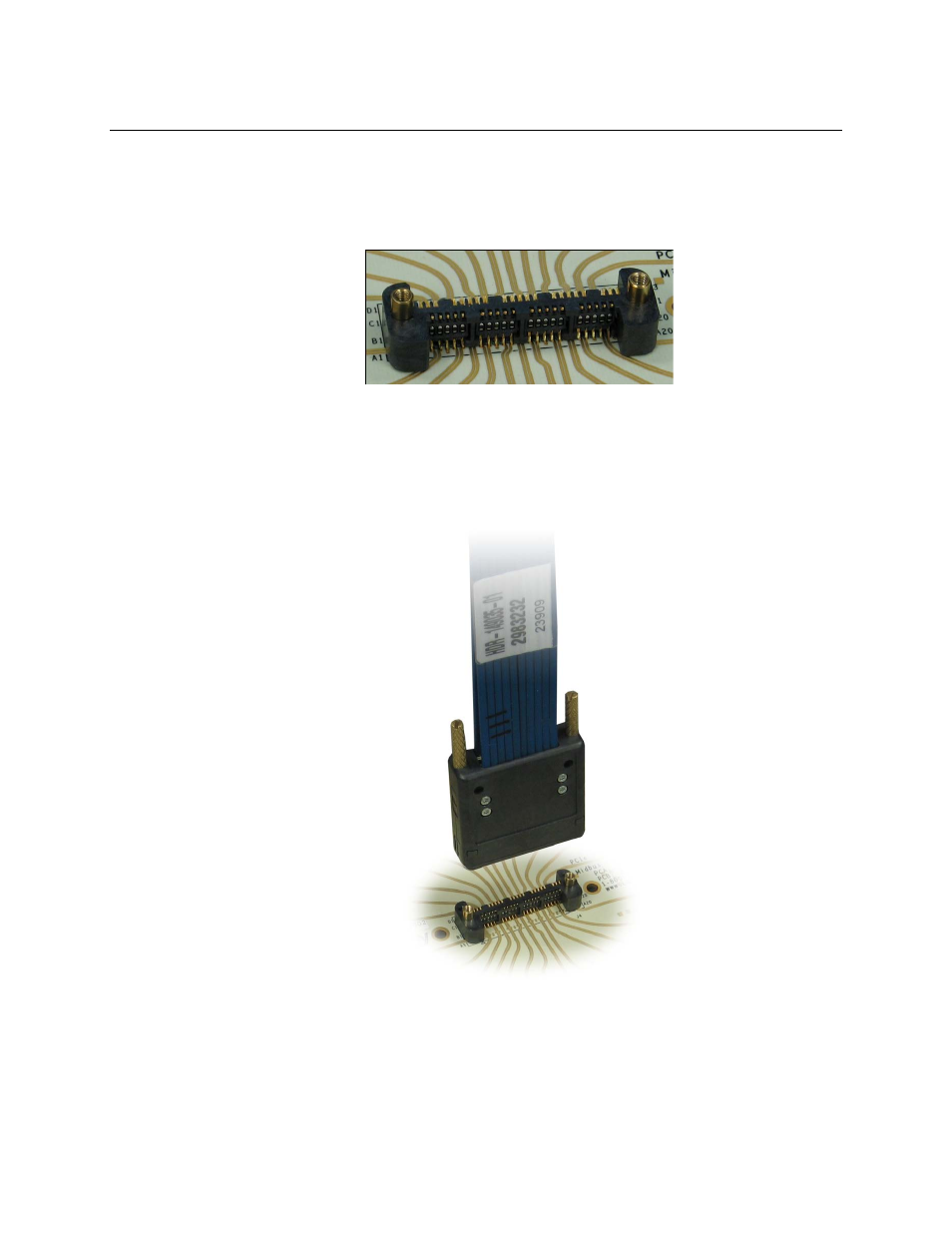

1. Install probe connector into PCI Express target system board.
The probe connector allows the Teledyne LeCroy mid-bus probe to attach to the target
system board. The probe connector is installed by aligning the module pins with the holes on
the target system board. The probe connector is keyed - so be sure to orient it so that it
matches the connector.
2. Bolt the probe connector to the board.
3. Plug the mid-bus probe header into the probe connector as shown below.
