Teledyne LeCroy

PCIe 3.0 Mid-Bus Probe Installation Guide

Version 1.2

4.3 Pin Assignments for Full-size Probe Connectors

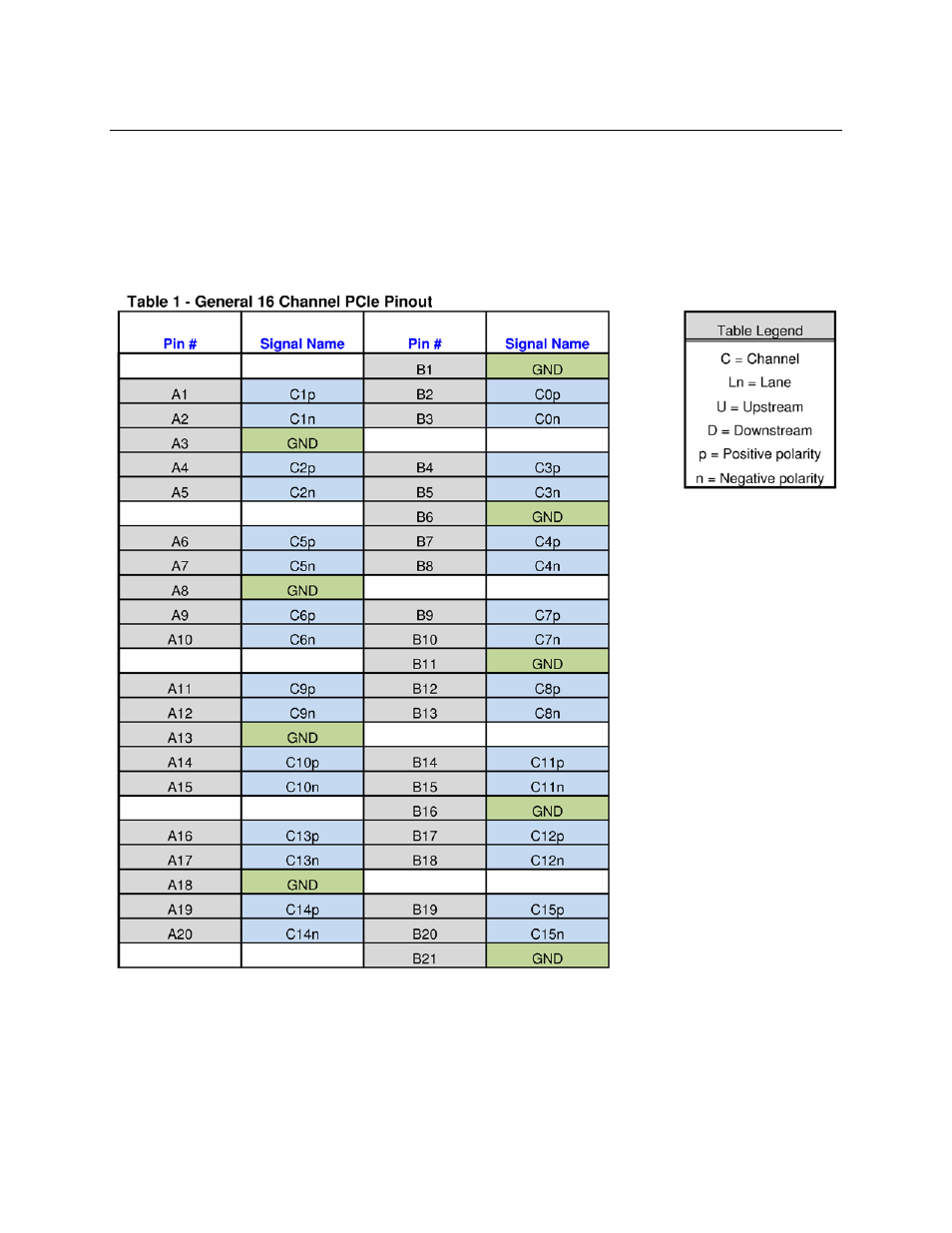

For x16 lane widths, two full-size headers are required. The diagrams below show the recommended pin
assignments for x16 configurations (keep in mind that any of modifications mentioned in Section 4.2 can
be applied, and in addition the lane swizzling feature of the Summit T3-16 system noted in Section 4.2).
