Teledyne LeCroy WaveLink Differential Probe Series (8-13 GHz) User Manual
Page 53

Operator's Manual
should be connected to square pins (and AuxOut Signal should be connected through the
square pin path of the PCF200).

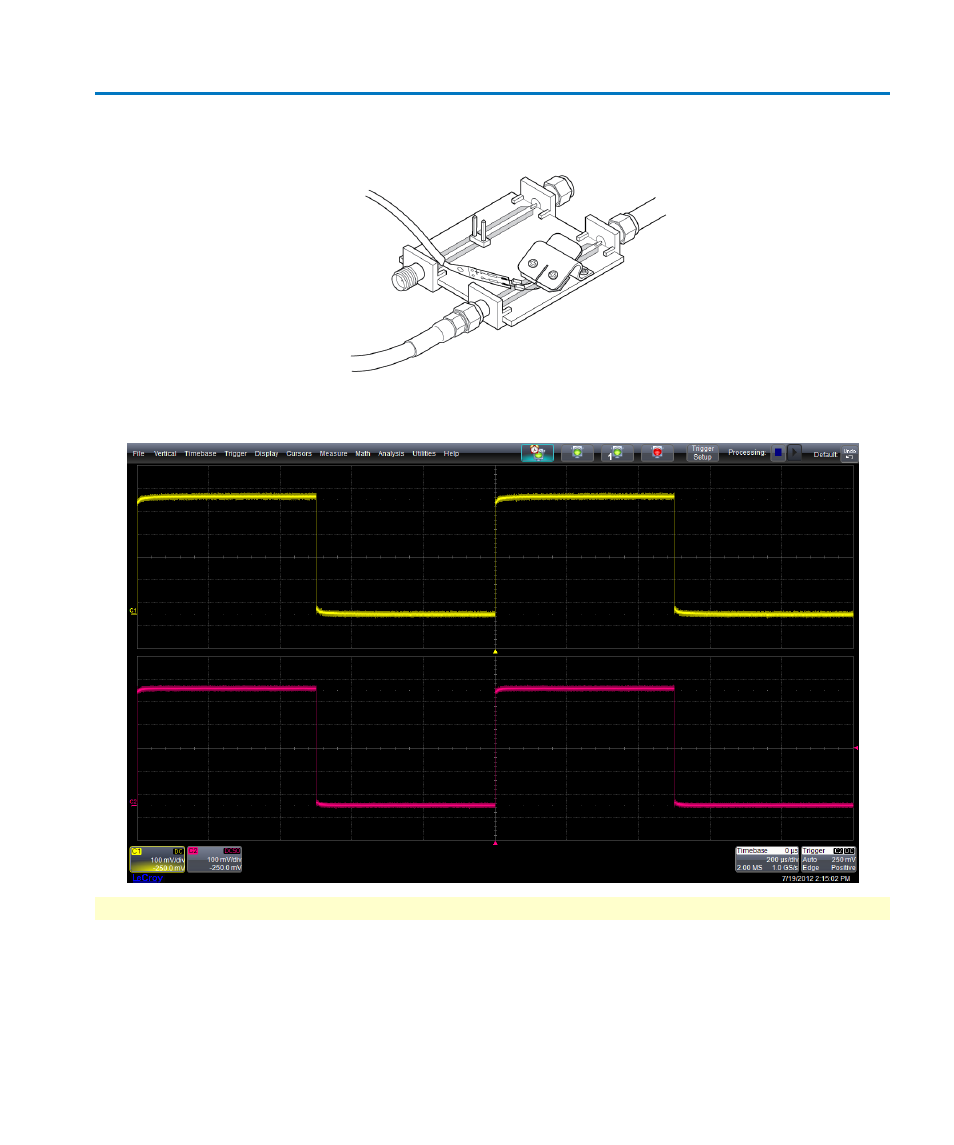

10. Verify that the signal measured by the probe on Channel 1 is the same as the signal being
measured directly into the scope on Channel 2.
NOTE: The 1 V AuxOut voltage will be 500 mV when driving the scope 50Ω input.
924234-00
47
