Ez probe positioner – Teledyne LeCroy WaveLink Differential Probe Series (8-13 GHz) User Manual
Page 33

Operator's Manual
EZ Probe Positioner

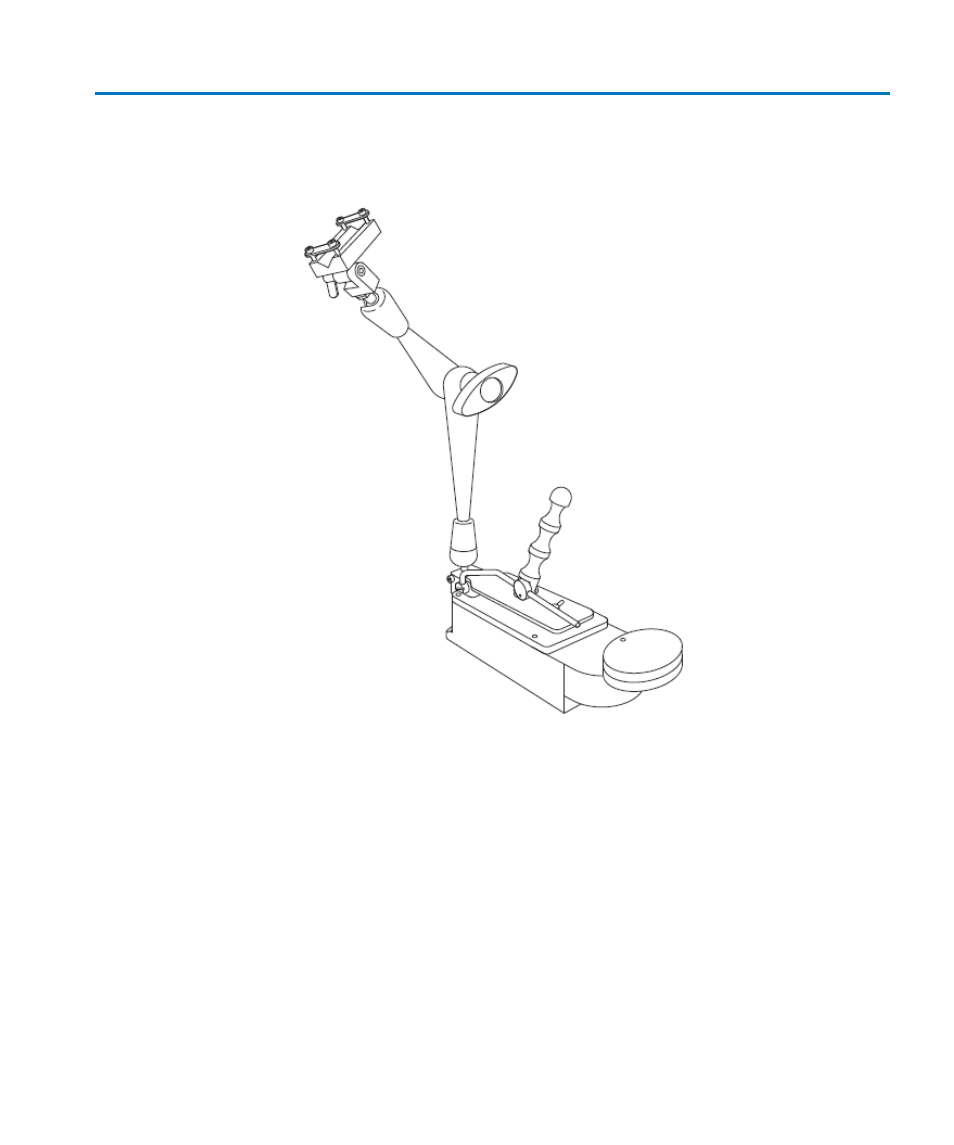

The EZ probe positioner is available as an optional accessory. It provides stable, accurate
positioning in the X-Y-Z axes.
The unique 3:1 motion reduction joystick allows simple, precise positioning of the attached probe in
both the horizontal and vertical measuring plane. The probe has a fully-articulating arm, providing
30 cm (12 inch) reach in virtually any direction.
The XYZ joystick has separate friction controls allowing independent X-Y plane or Z-axis movement
and is especially useful when combined with the positioner tip.
The EZ probe positioner comes with a vacuum mounted base to keep the probe in place in any test
environment. However, the solid base is heavy enough that the positioner can be used without the
vacuum.
