Teledyne LeCroy Zi Oscilloscope Rackmount User Manual

Page 6

background image

Instructions

W

AVE

M

ASTER

8 Z

I

C

OVER

R

EMOVAL

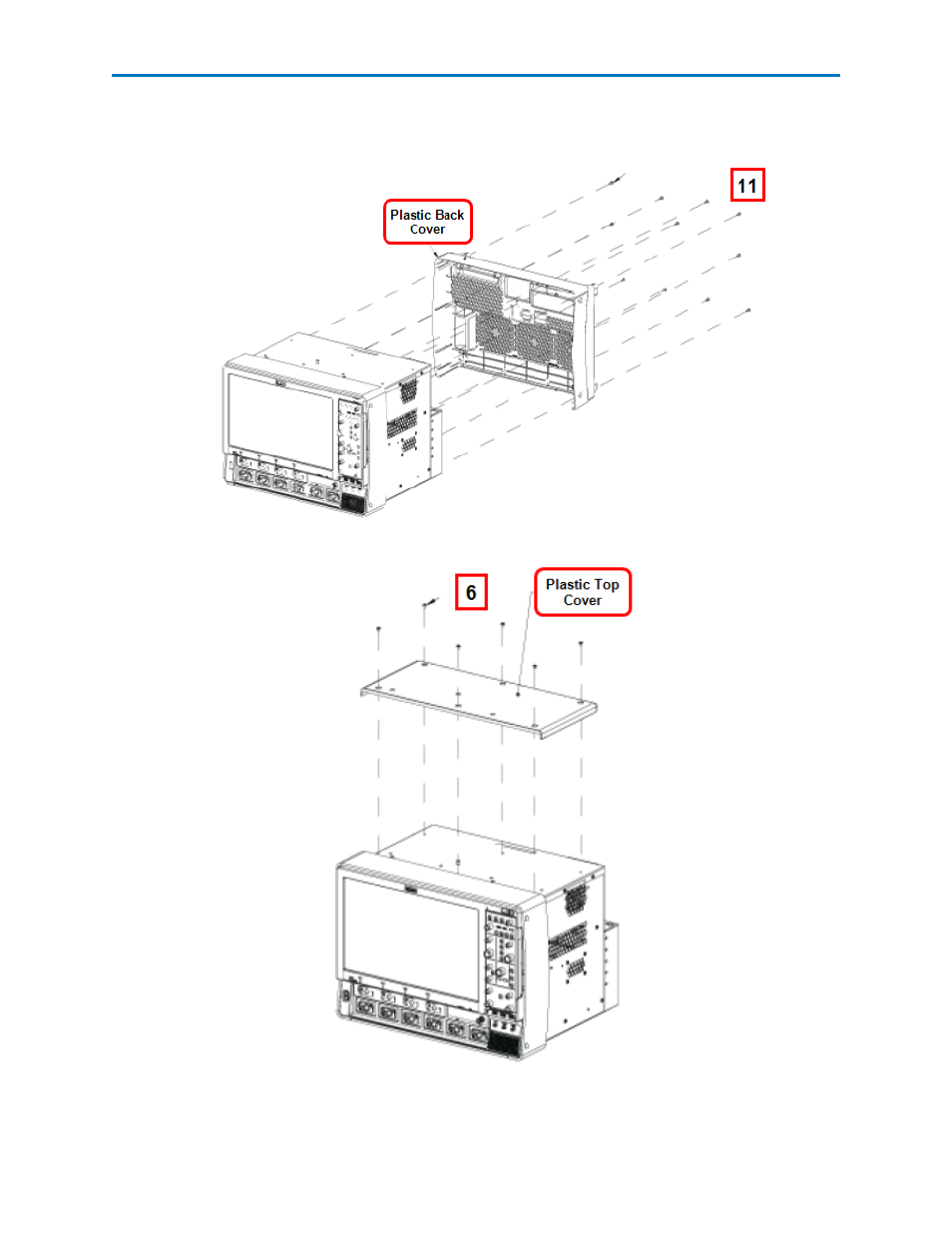

1. Remove the plastic back cover by unscrewing the 11 M3 X 10 Torx screws with black washers and pull-

ing the cover away from the body of the instrument.

2. Remove the six M3 X 6 Torx screws with black washers and take off the plastic top cover.

922291-00 Rev A

6
