3" SIDEBAR
07-14 JEEP PATRIOT
Page 5 of 5 8/15/13 REV1 (DP)

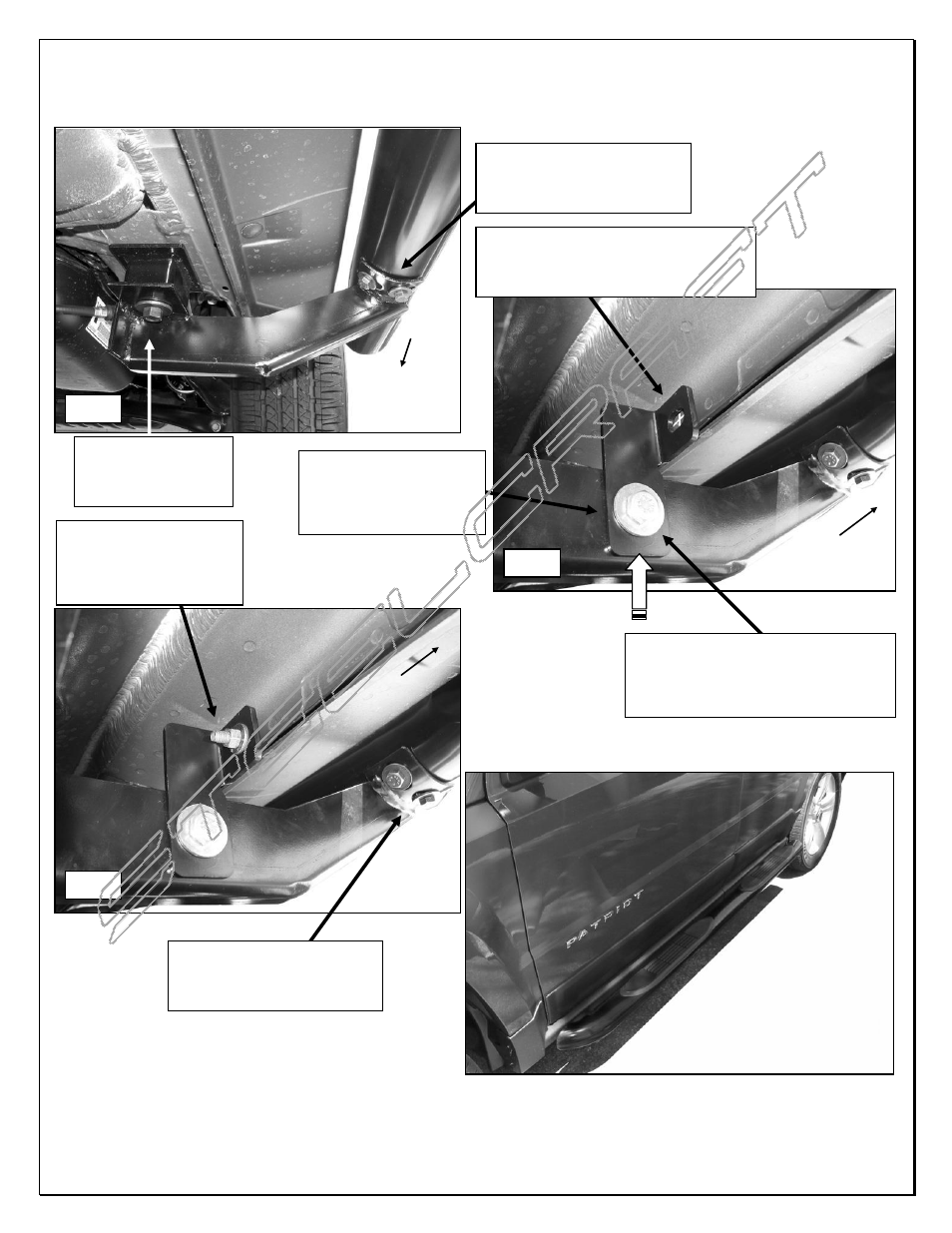

Driver Side Installation Pictured
Fig 7
Fig 8
Fig 9
Drill 5/16" hole through marked
spot on pinch weld. Do not drill
close to the edge of the pinch weld
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
Installation Complete
12mm Flat Washer
12mm Lock Washer
12mm Hex Nut
10mm Hex Bolt
(2) 10mm Flat Washers
10mm Lock Washer
10mm Hex Nut
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
8mm x 35mm Hex Bolt
8mm Lock Washer
(2) 8mm Flat Washers
8mm Hex Nut
Adjust Sidebar. Loosen 10mm Bolt
and push Support Bracket up
against the floor to move slot
away from edge of pinch weld
Rear
Front
Front
