Steelcraft Automotive 223100 3 ROUND SIDE BAR - Manual

3" SIDEBAR
07-14 JEEP PATRIOT
Page 1 of 5 8/15/13 REV1 (DP)
PARTS LIST:
1 Driver/Left Sidebar 10 12mm Lock Washers
1 Passenger/Right Sidebar 14 12mm x 37mm OD x 3mm Flat Washers
1 Driver/Left Front Mounting Bracket 10 12-1.75mm Hex Nuts
1 Passenger/Right Front Mounting Bracket 2 10-1.5mm x 35mm Hex Bolts
1 Driver/Left Front Frame Bracket 2 10mm Lock Washers
1 Passenger/Right Frame Bracket 4 10mm x 30mm OD x 2.5mm Flat Washer
1 Driver/Left Front Support Bracket 2 10mm Hex Nuts
1 Passenger/Right Front Support Bracket 2 8-1.25mm x 35mm Hex Bolts
1 Driver/Left Rear Mounting Bracket 8 8-1.25mm x 25mm Hex Bolts
1 Passenger/Right Rear Mounting Bracket 10 8mm Lock Washers
4 12-1.75mm x 35mm Bolt Plates 12 8mm x 24mm OD x 2mm Flat Washers
2 12-1.75mm x 60mm Long Bolt Plates 2 8mm Hex Nuts
4 12-1.75mm x 35mm Hex Bolts
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. DRILLING AND
CUTTING IS REQUIRED. ASSISTANCE IS RECOMMENDED.
1. Starting at the driver side front of the vehicle, locate the three factory holes, (1 round and 2
oval holes), in the bottom of the left front floor panel, (Figure 1). Insert (1) 12mm x 35mm Bolt
Plate into the smaller, (inner), oval hole and feed the threaded end back out through the larger,
(outer), oval hole, (Figures 2A & 2B). Next, insert (1) 12mm Bolt Plate into the oval hole in the
bottom of the inner frame channel, (Figure 3).
(2) 12mm x 60mm
Long Bolt Plates
(4) 12mm x 35mm
Bolt Plates

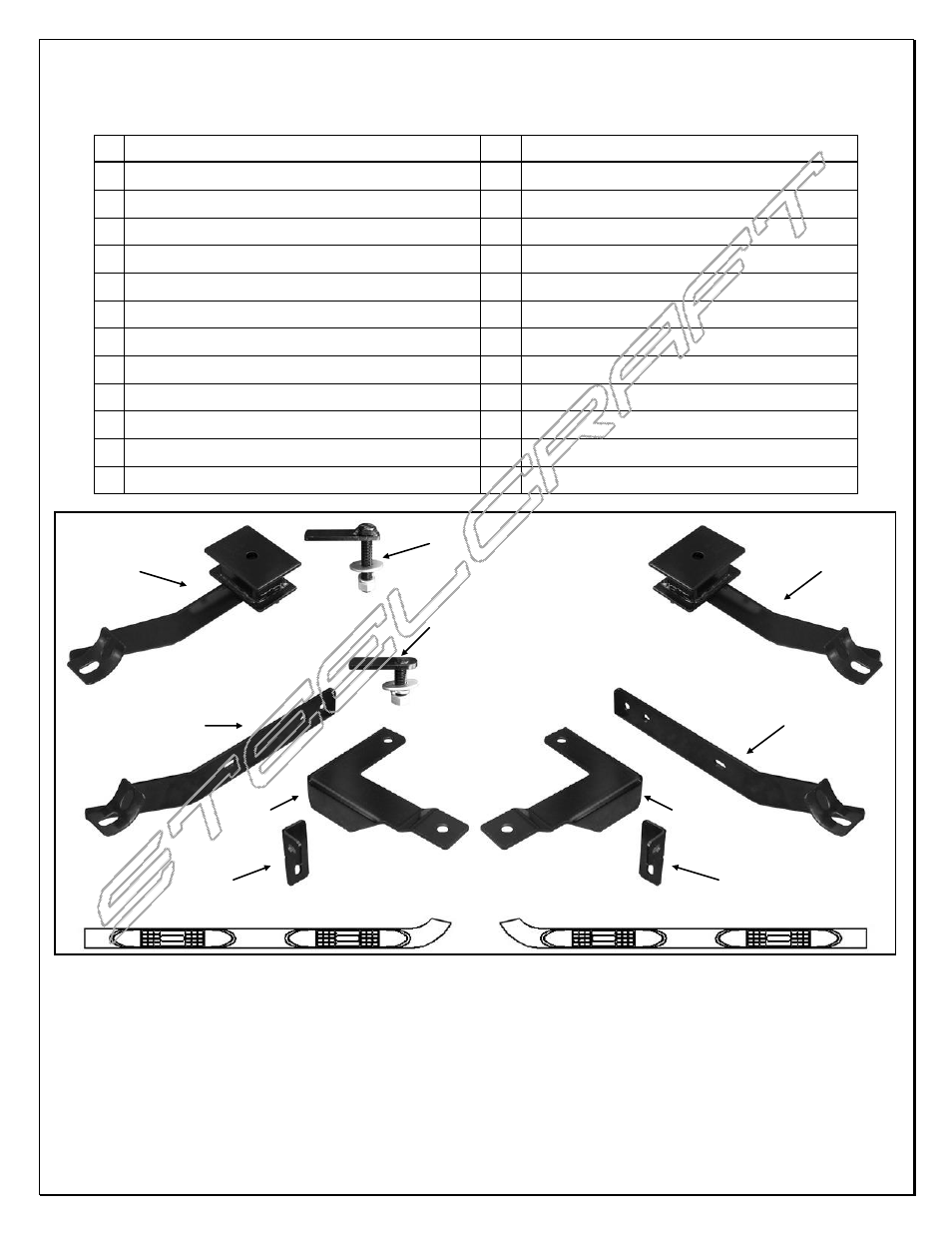

Driver/Left Front
Support Bracket
Passenger/Right Front
Support Bracket
Driver/Left Rear
Mounting Bracket
Driver/Left Front
Mounting Bracket
Passenger/Right Front
Mounting Bracket
Passenger/Right
Rear Mounting
Bracket
Driver/Left Frame
Mounting Bracket Passenger/Right
Frame Mounting
Bracket
Passenger/Right Sidebar Driver/Left Sidebar
Front
