Steelcraft Automotive 133150 RUNNING BOARD User Manual
Page 6
VIEWPOINT RUNNING BOARDS
2010-12 LEXUS RX350
Page 6 of 8
10/23/12 (DP)
10mm Bolt Plate
10mm Plastic Retainer
Remove rubber plug
Rear

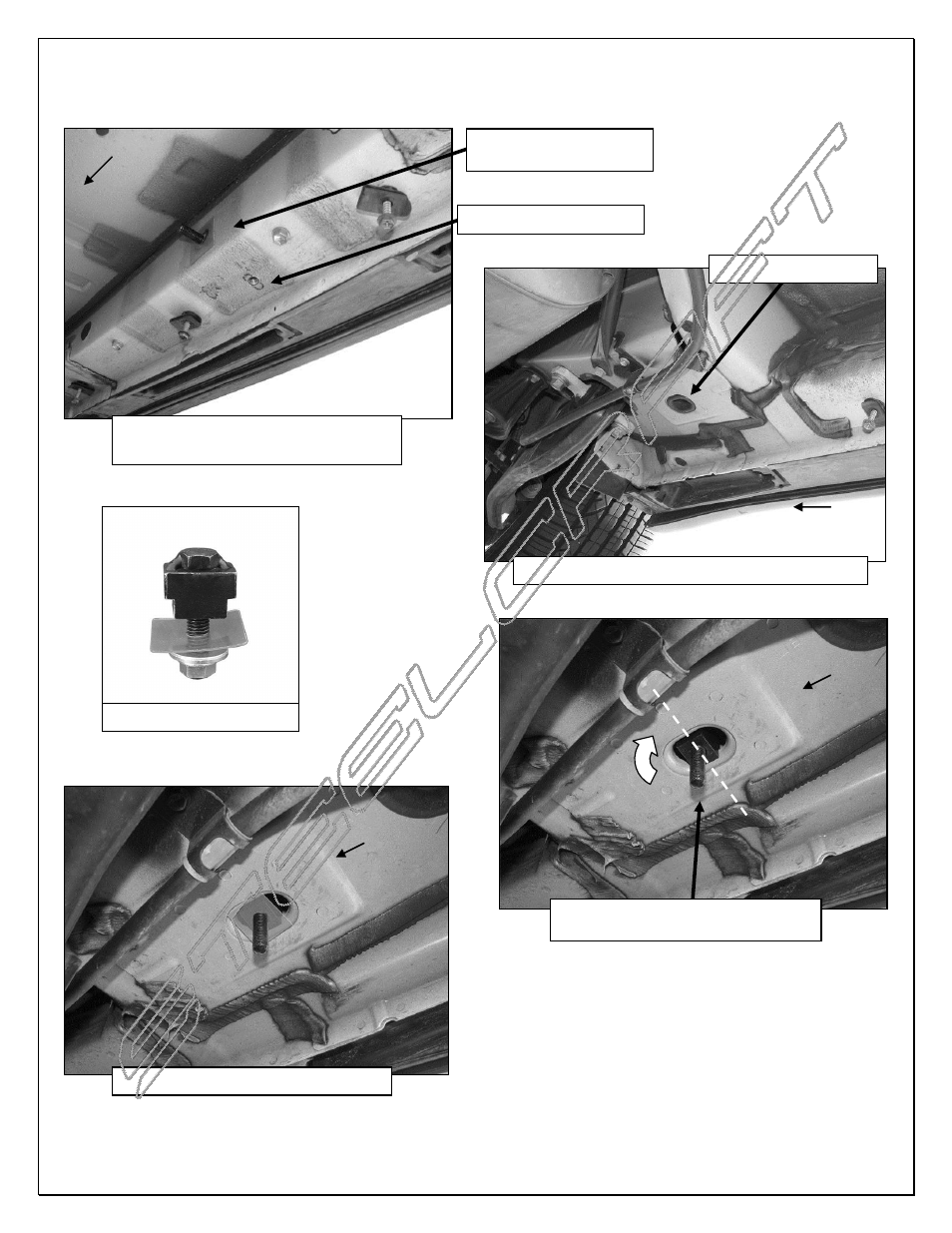

(Fig 14) Passenger/Right side center
Bracket mounting location pictured
(Fig 15) Driver side rear mounting location
(Fig 17) T-Bolt with Plastic Retainer
(Fig 16B) Insert T-Bolt then rotate
90-degrees to go across oval hole
Front
(Fig 16A) 10mm T-Bolt
Rear
Rear
10mm Threaded Insert
