Steelcraft Automotive 133150 RUNNING BOARD User Manual
Page 5

VIEWPOINT RUNNING BOARDS
2010-12 LEXUS RX350
Page 5 of 8
10/23/12 (DP)

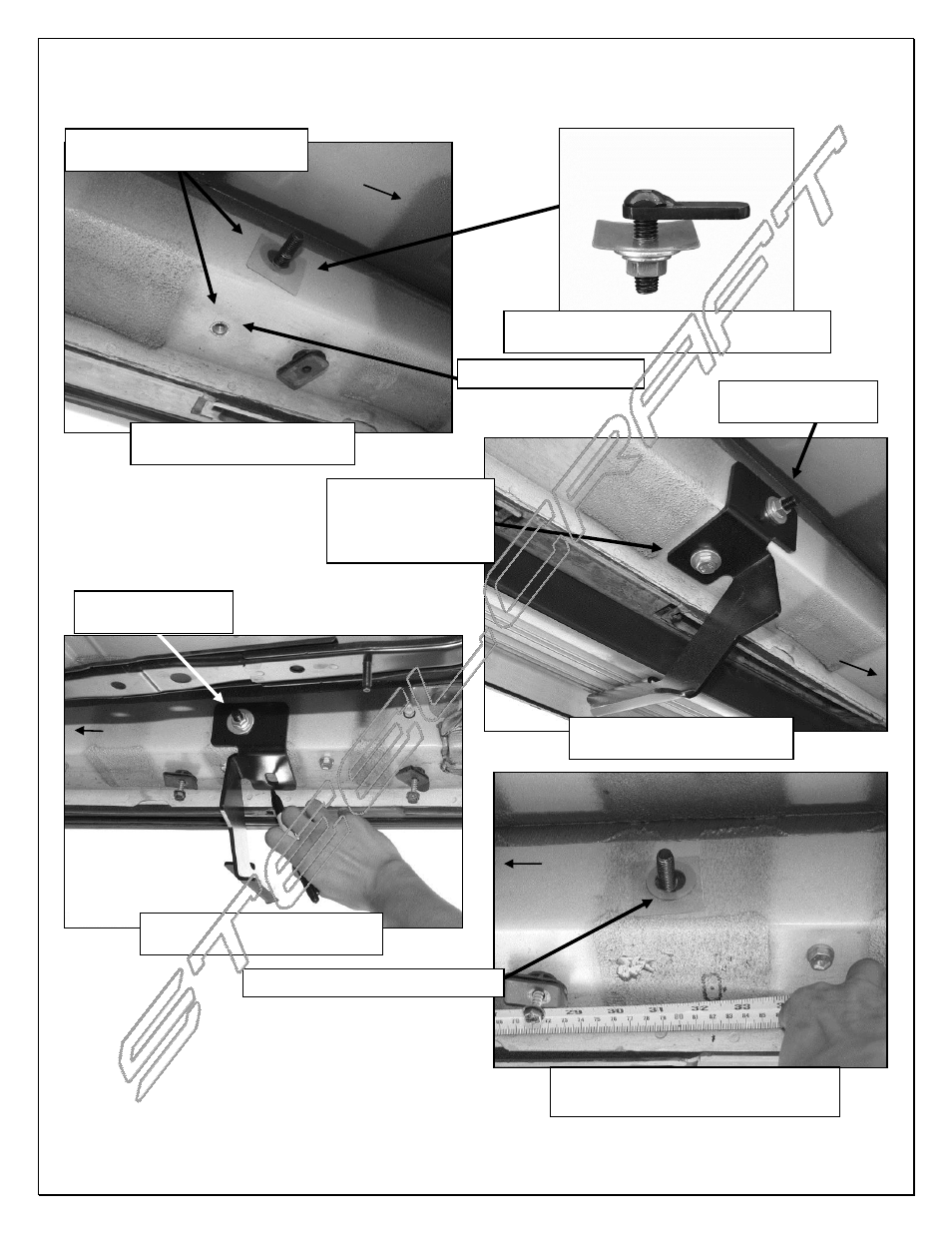

Remove plastic plugs on side
and bottom of frame channel
Front
(Fig 10A) Use Plastic Retainer to hold Bolt
Plate in place during Bracket installation
(Fig 10B) Driver side center
mounting location pictured
(Fig 6A) 10mm x 35mm Bolt Plate
Front
10mm Hex Bolt
10mm Lock Washer
10mm x 27mm STD
Flat Washer
Front
(Fig 13) Passenger/Right side center
Bracket mounting location pictured
(Fig 11) Driver side center
Mounting Bracket pictured
10mm Flat Washer
10mm Flange Nut
10mm Flat Washer
10mm Flange Nut
(Fig 12) Passenger side center
mounting location pictured
Front
10mm Threaded Insert
