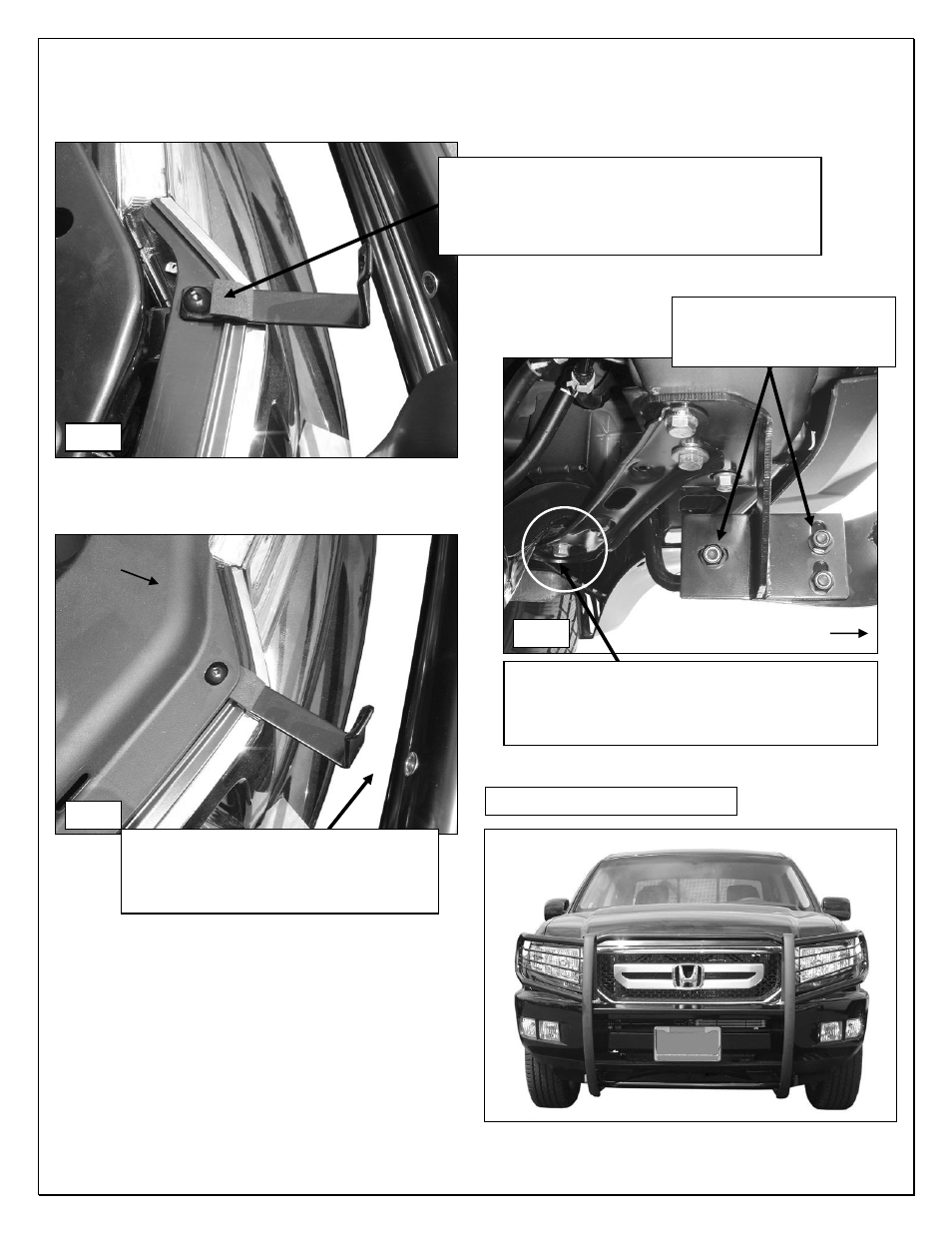

GRILLE GUARD

06-010 HONDA RIDGELINE

Page 4 of 4

6/14/10 Rev1(DP

)

Front

DRIVER SIDE INSTALLATION PICTURED











































Complete installation

Fig 5

06-08 Models use (1) 8mm Nut Plate (not pictured)
09-10 Models use (1) 8mm Clip Nut (pictured)
(1) 8mm x 25mm Button Head Bolt
(1) 8mm Lock Washer
(1) 8mm Flat Washer

Fig 7

(3) 12mm x 30mm Hex Bolts
(6) 12mm Flat Washers
(3) 12mm Nylon Lock Nuts

Front

Fig 6

Secure Top Bracket to Grille Guard with:
(1) 6mm x 25mm Button Head Bolt
(1) 6mm Lock Washer
(1) 6mm Flat Washer

Front

Driver side installation pictured

IMPORTANT: Once Grille Guard
installation is complete, tighten (2)
factory hex bolts in subframe mounts.
