GRILLE GUARD
06-010 HONDA RIDGELINE
Page 3 of 4 6/14/10 Rev1(DP )
If necessary, replace these
two with the provided:
(2) 12-1.25mm x 35mm Fine
Thread Hex Bolts
(2) 12mm Flat Washers
(2) 12mm Lock Washers
If necessary, replace the
factory 10mm Hex Bolt (too
short) with the included:
(1) 10-1.25 x 35mm Fine
Thread Hex Bolt
(1) 10mm Flat Washer
(1) 10mm Lock Washer

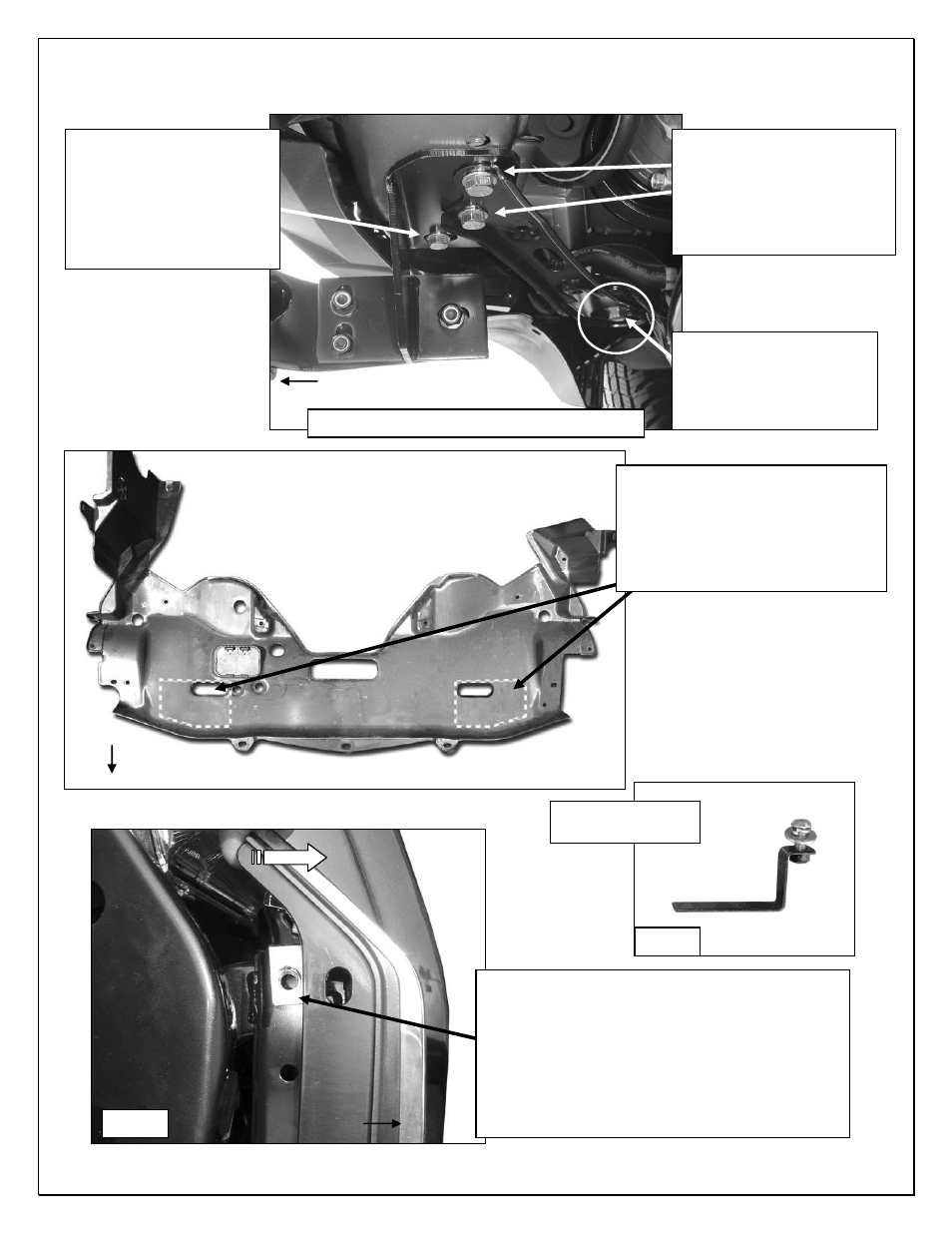

(Fig 2) Passenger side installation pictured
Fig 4A
06-08 Models: (see Fig 4B-inset) Insert 8mm Nut
Plate through opening behind grille and line up
the threaded hole with the hole in the metal tab
and grille (not pictured)
09-10 Models: (pictured) Gently pull the grille
outward. Slide (1) 8mm Clip Nut onto the metal
tab under the grille. Line up hole in Clip Nut with
hole in metal tab and grille
Front
(Fig 3) Area marked on splash
guard for example only.
Depending on model year, your
actual splash guard and cut out
area may be different (09-10
model pictured)
Front
Front
Loosen but DO NOT
REMOVE the large factory
hex bolt securing the
frame bracket to the
subframe mount
Fig 4B
06-08 models use
8mm Nut Plate
