I/O Port Screen
The FCS-1091/WCS-1090 supports 2 input ports and 2 output ports. This screen is
displayed when the I/O Port menu option is clicked.

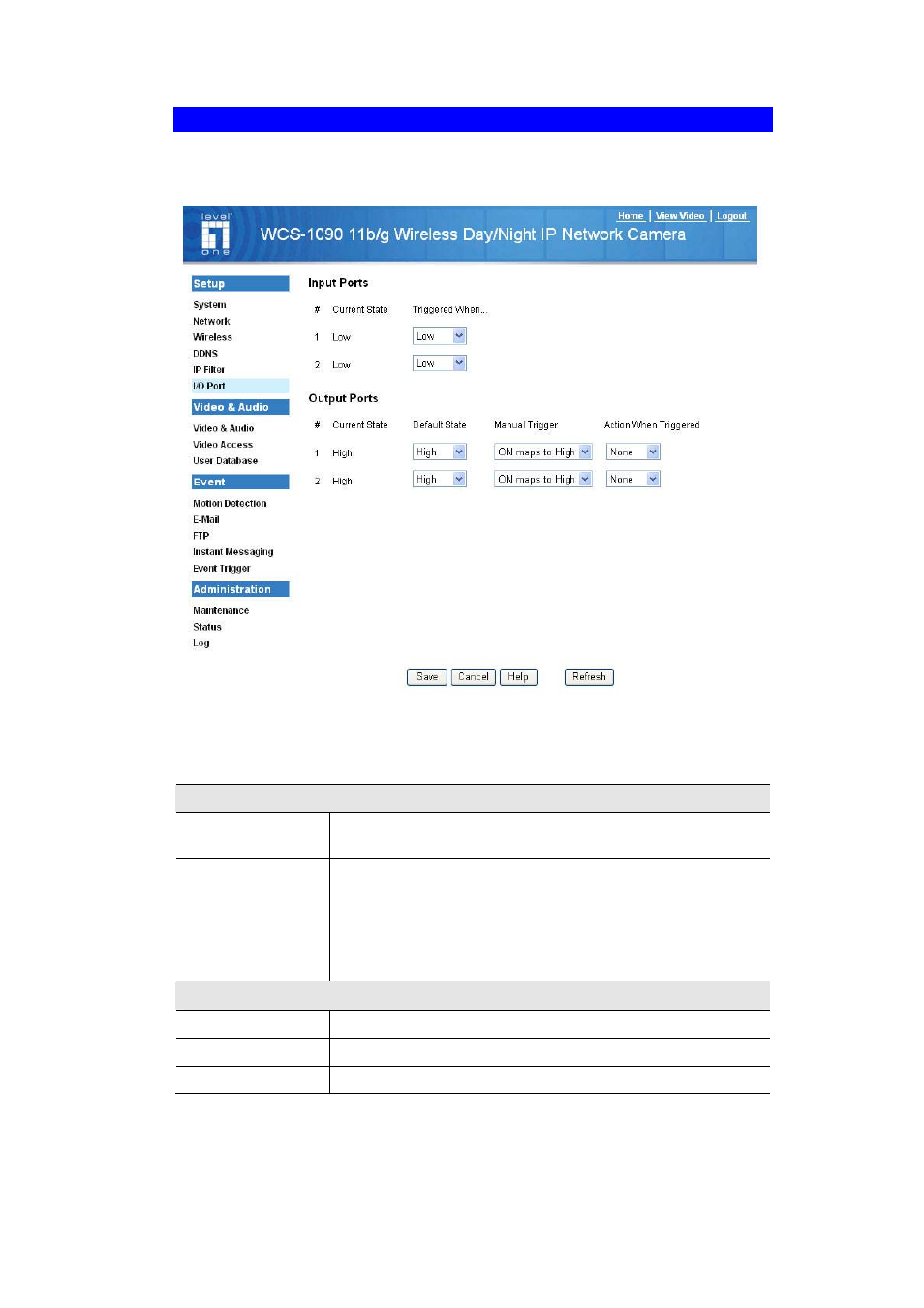

Figure 19: I/O Port Screen
Data - I/O Port Screen
Input Ports
Current State
It indicates the current state of the input port. Once the
configured state is happened, it will trigger the event actions.
Triggered When…
Select the desired State:
• High
• Low
• Rising
• Falling
Output Ports
Current State
It indicates the current state of the output port.
Default State
Select the desired option from the drop-down list.
Manual Trigger
Select the option to control the output state.
