Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture; excessive
vibration or excessive temperatures. Contact LEESON for more information.
8
Installation
3 Installation

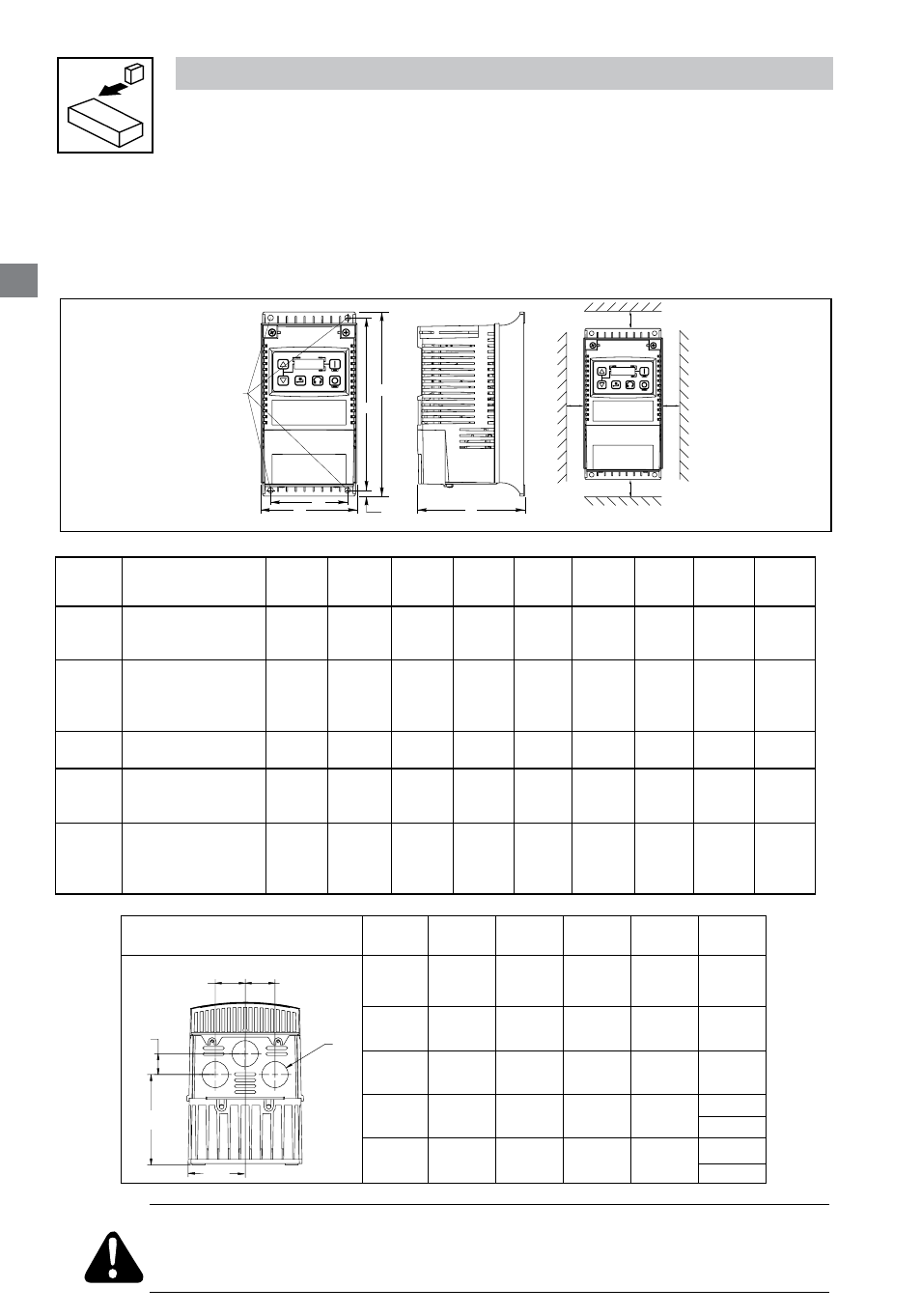

3.1 Dimensions and mounting
3.1.1 NEMA 1 (IP31)
b1
a1
a
b
c b2
mm (in)
4 X #10
18 lb-in
4 X M5
20 Nm
( ) s1 s1
s2
s2
V0102
Type
a
in (mm)
a1
in (mm)
b
in (mm)
b1
in (mm)
b2
in (mm)
c
in (mm)
s1
in (mm)
s2
in (mm)
m
lb (kg)
CH1
174603 - 174608,
174620 - 174621,
174631
3.90
(99)
3.10
(79)
7.50
(190)
7.00
(178)
0.25
(6)
4.35
(110)
0.6
(15)
2.0
(50)
2.0
(0.9)
CH2
174609 - 174614,
174622 - 174624,
174632 - 174633
174651
3.90
(99)
3.10
(79)
7.50
(190)
7.00
(178)
0.25
(6)
5.45
(138)
0.6
(15)
2.0
(50)
2.8
(1.3)
CH3
174615, 174625,
174634
3.90
(99)
3.10
(79)
7.50
(190)
7.00
(178)
0.25
(6)
5.80
(147)
0.6
(15)
2.0
(50)
3.2
(1.5)
CH4
174616 - 174617,
174626 - 174627,
174635 - 174636
5.12
(130)
4.25
(108)
9.83
(250)
9.30
(236)
0.25
(6)
6.25
(159)
0.6
(15)
2.0
(50)
6.0
(2.0)
CH5
174618 - 174619,
174628 - 174630,
174637 - 174639
174991, 174993
6.92
(176)
5.75
(146)
12.50
(318)
11.88
(302)
0.31
(8)
8.09
(205)
0.6
(15)
2.0
(50)
13.55
(6.15)
Conduit Hole Dimensions Type
N
in (mm)
P
in (mm)
P1
in (mm)
Q
in (mm)
S
in (mm)
Q
N
Q
P
S
P1
CH1 1.84 (47) 1.93 (49) .70 (18) 1.00 (25) .88 (22)
CH2 1.84 (47) 3.03 (77) .70 (18) 1.00 (25) .88 (22)
CH3 1.84 (47) 3.38 (86) .70 (18) 1.00 (25) .88 (22)
CH4 2.46 (62) 3.55 (90) .13 (3) 1.38 (35)
1.13 (29)
.88 (22)
CH5 3.32 (84) 4.62 (117) .73 (19) 1.40 (36)
1.31 (33)
.88 (22)
WARNING!
Mounting
Screws
