DS2 series Instruction manual
44
11. LIST OF AVAILABLE MODELS
Model
Optics interaxis
(mm)
Length of
controlled area
(mm)
a x b (mm) h (mm)
N°.
beams
DS2-05-07-015-JV 6.75 147 35 x 40 256 21
DS2-05-07-030-JV 6.75 294 35 x 40 403 42
DS2-05-07-045-JV 6.75 441 35 x 40 550 63
DS2-05-07-060-JV 6.75 588 35 x 40 697 84
DS2-05-07-075-JV 6.75 735 35 x 40 844 105
DS2-05-07-090-JV 6.75 882 35 x 40 991 126
DS2-05-07-105-JV 6.75 1029 35 x 40 1138 147
DS2-05-07-120-JV 6.75 1176 35 x 40 1285 168
DS2-05-07-135-JV 6.75 1323 35 x 40 1432 189
DS2-05-07-150-JV 6.75 1470 35 x 40 1579 210
DS2-05-07-165-JV 6.75 1617 35 x 40 1726 231
DS2-05-25-045-JV 25 453 35 x 40 562 18
DS2-05-25-060-JV 25 604 35 x 40 713 24
DS2-05-25-075-JV 25 755 35 x 40 864 30
DS2-05-25-090-JV 25 912 35 x 40 1015 36

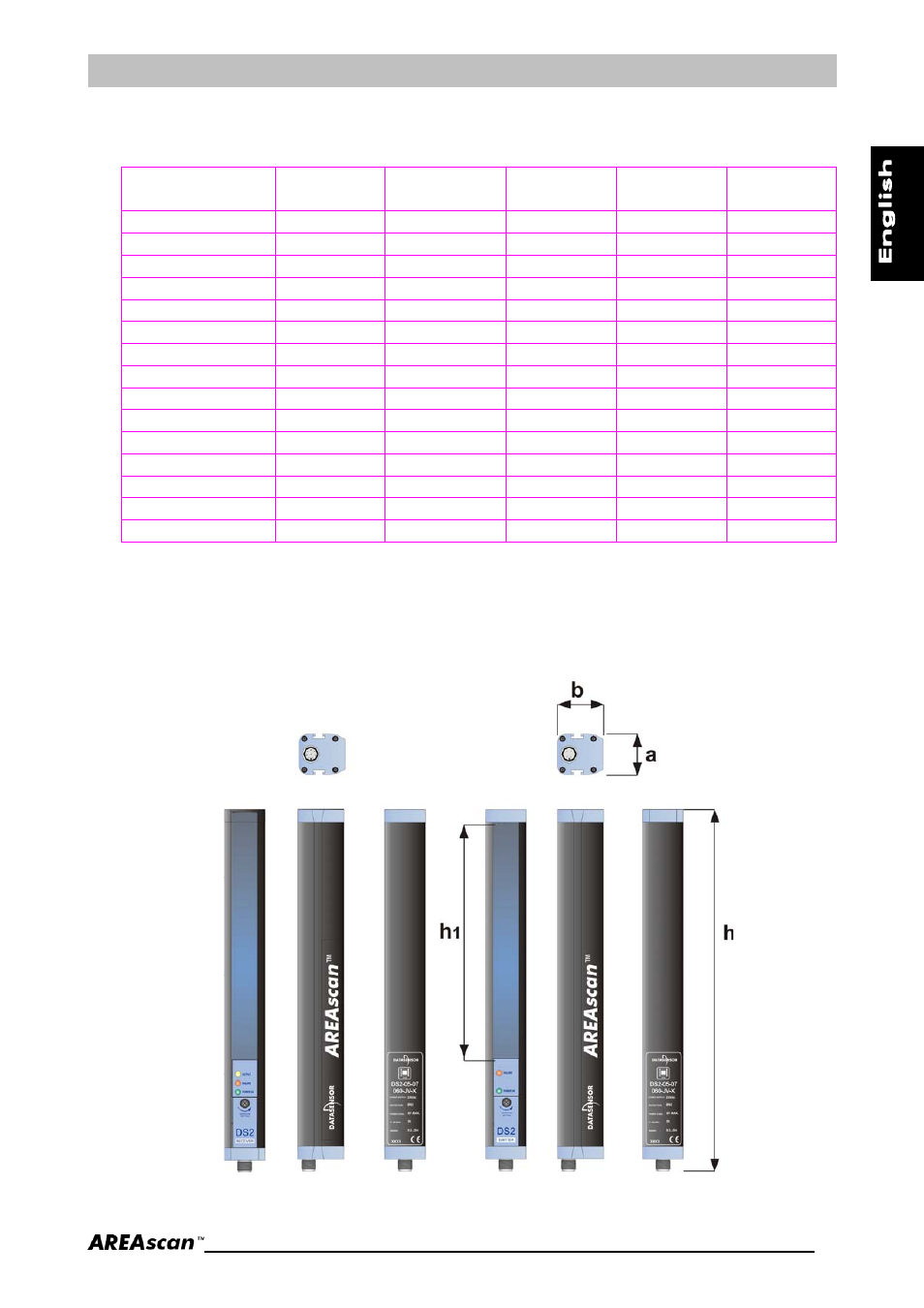

12. OVERALL DIMENSIONS
All the values are in mm.
RECEIVER EMITTER
