12.

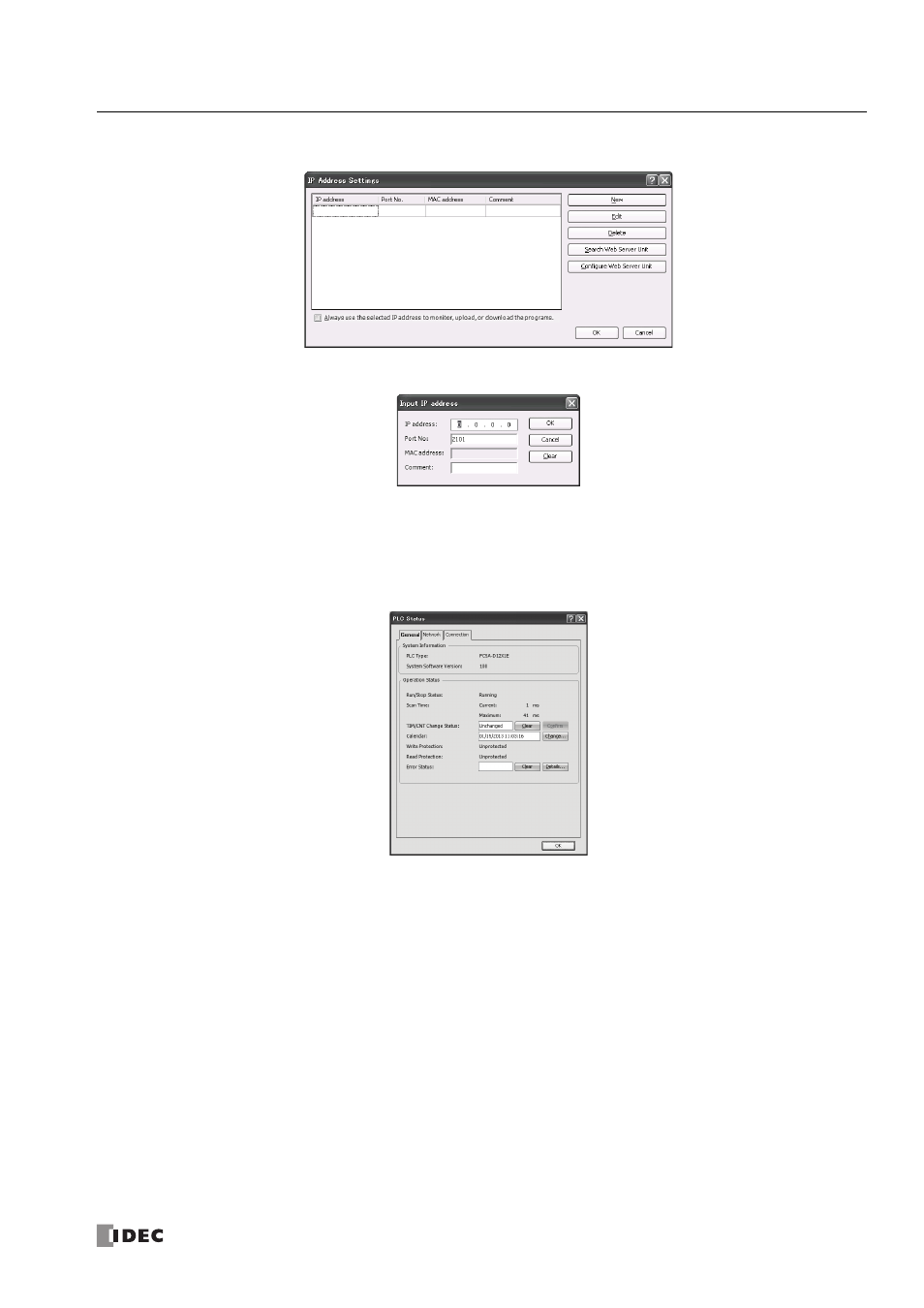

The IP Address Settings dialog box appears. Click on the New button.
13.
The Input IP Address dialog box appears. Enter the IP address configured in step 4 and click OK button.
14.
Select Online from the WindLDR menu bar, and then click Monitor. The IP Address Settings dialog box appears. Click
OK button.
15.
Select Online from the WindLDR menu bar, and then click Status.
16.
The PLC Status dialog box appears. Confirm that the PLC type and the system program version are properly displayed.
Settings are now complete.
