3: I NSTALLATION AND W IRING
3-8 W EB S ERVER CPU M ODULE U SER ’ S M ANUAL FC9Y-B1278
Installation in Control Panel
The Web server CPU modules are designed for installation in a cabinet. Do not install the Web server CPU modules
outside a cabinet.
The environment for using the Web server CPU module is “Pollution degree 2.” Use the Web server CPU module in
environments of pollution degree 2 (according to IEC 60664-1).

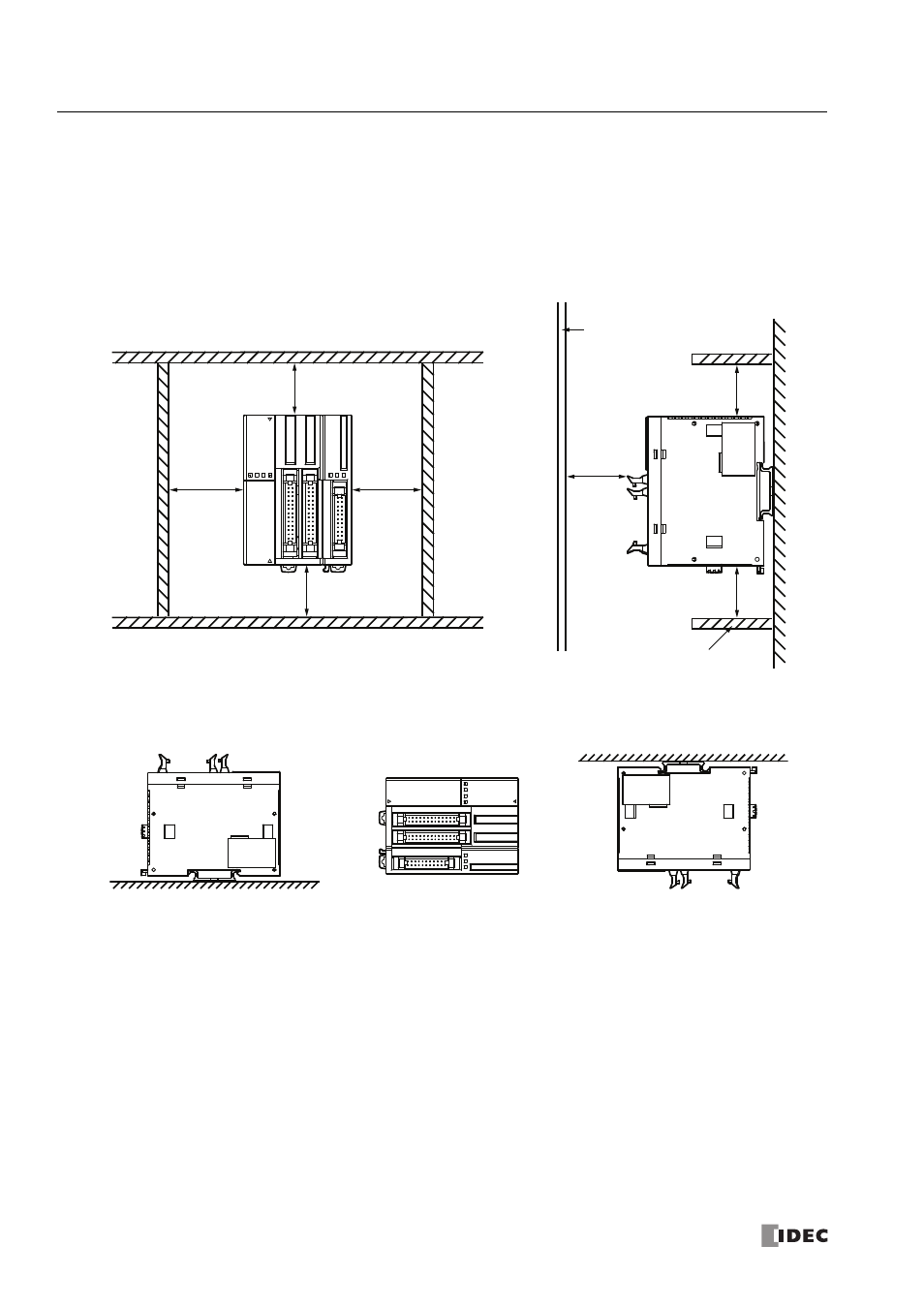

When installing the Web server CPU modules in a control panel, take the convenience of operation and maintenance,
and resistance against environments into consideration.
Always mount the slim type CPU modules horizontally on a vertical plane as shown on the preceding page. Any other
mounting directions are not allowed.
'SPOU1BOFM
NNNJOJNVN
8JSJOH%VDU
NNNJOJNVN
NNNJOJNVN
NNNJOJNVN
NN
NJOJNVN NN
NJOJNVN
NN
NJOJNVN
Incorrect Mounting Direction Incorrect Mounting Direction Incorrect Mounting Direction
