W EB S ERVER CPU M ODULE U SER ’ S M ANUAL FC9Y-B1278 3-7
3: I NSTALLATION AND W IRING

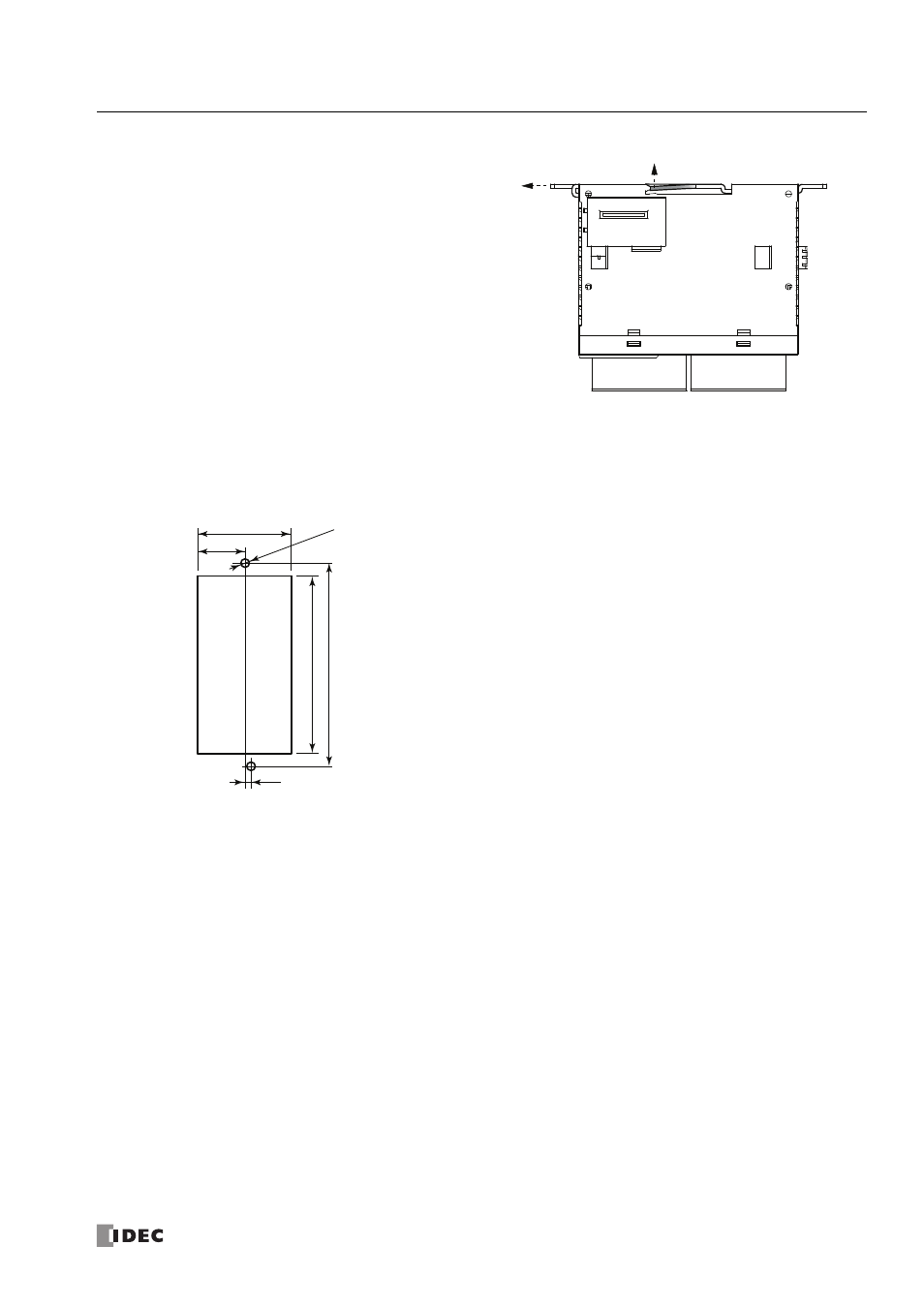

Mounting Hole Layout for Direct Mounting on Panel Surface
Make mounting holes of ø4.3 mm as shown below and use M4 screws (6 or 8 mm long) to mount the Web server CPU
modules on the panel surface.
FC5A-D12K1E, FC5A-D12S1E
All dimensions in mm.
Removing the Direct Mounting Strip
1. Insert a flat screwdriver under the latch of the direct
mounting strip to release the latch (A).
2. Pull out the direct mounting strip (B).
(B)
(A)
¡
