Host PLC
Gateway Unit etc.
Double Shield Cable
Recommend : TAIYO ELECTRIC WIRE & CABLE
HK-SB/20276×L
2P×AWG22
e-Con connector
(Made of AMP 4-1473562-4 : Green)
SIO Isolator
e-Con connector
Pressure-weld
Vinyl cable
(AWG22)
Weld
Shield cable
Cable tube
Double shield cable
Locking claw
Pin No. of e-Con Connector
Wire Connection Port Locking claw

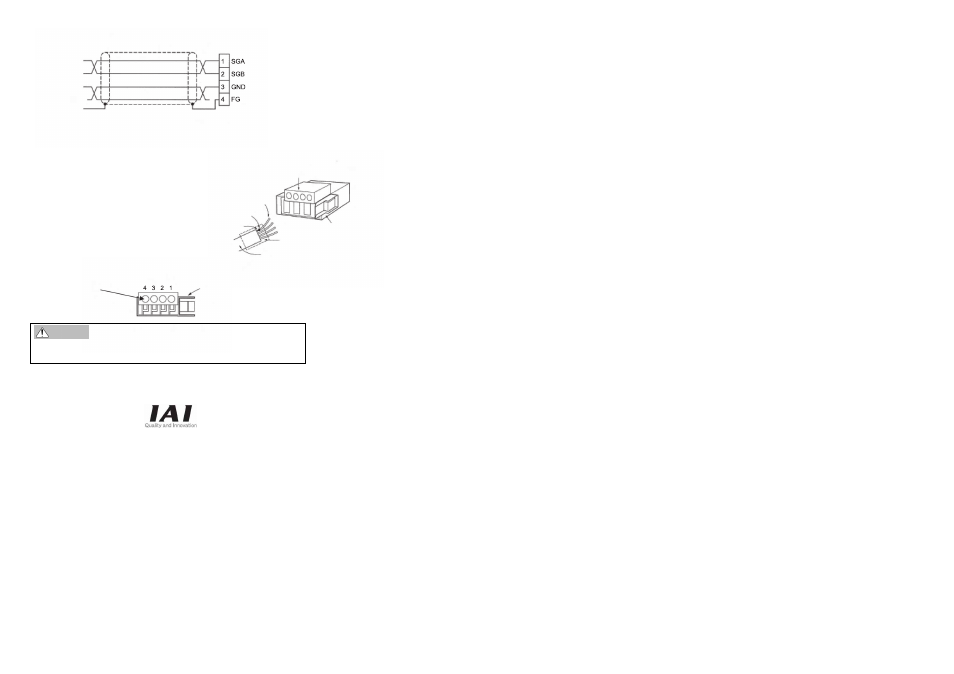

(3) Pressure Welding Method for the e-Con Connector for the Client-made Cable
(RS485 Communication Line)
For the connection to the e-Con connector, use the cable with the same core-wire size (equivalent to
AWG22) without peeling off the jacket of that core wires. If the jacket is peeled off, short-circuit might
be caused due to a connection error.
IAI America Inc.
Head Office: 2690W 237th Street Torrance, CA 90505
TEL (310) 891-6015 FAX (310) 891-0815
Chicago Office: 1261 Hamilton Parkway Itasca, IL 60143
TEL (630) 467-9900 FAX (630) 467-9912
Atlanta Office: 1220-E Kennestone Circle,Marrietta,GA 30066
TEL (678) 354-9470 FAX (678) 354-9471
website: www.intelligentactuator.com
IAI Industrieroboter GmbH
Ober der Röth 4, D-65824 Schwalbach am Taunus, Germany
TEL 06196-88950 FAX 06196-889524
Use the following procedure for the connection to the
attached e-Con connector.
①Peel off the jacket 15 to 20 mm from the
double shield cable.
②Twist the shield wires and weld them onto the
vinyl cable equivalent to AWG22.
③Cover it with the cable protection tube
(perform the terminal treatment using the
shrink tube).
④Without peeling off the core jacket, insert four
core wires into the connector cable insertion
holes (SDA, SDB, GND, FG).
⑤Keeping the core wires in the holes,
pressure-weld the cable press-fitting housing
from above.
Manual No.: ME0207-1A
CAUTION
