Harrington Hoists and Cranes MCR Trolley User Manual
Page 34
34
Table 5-4

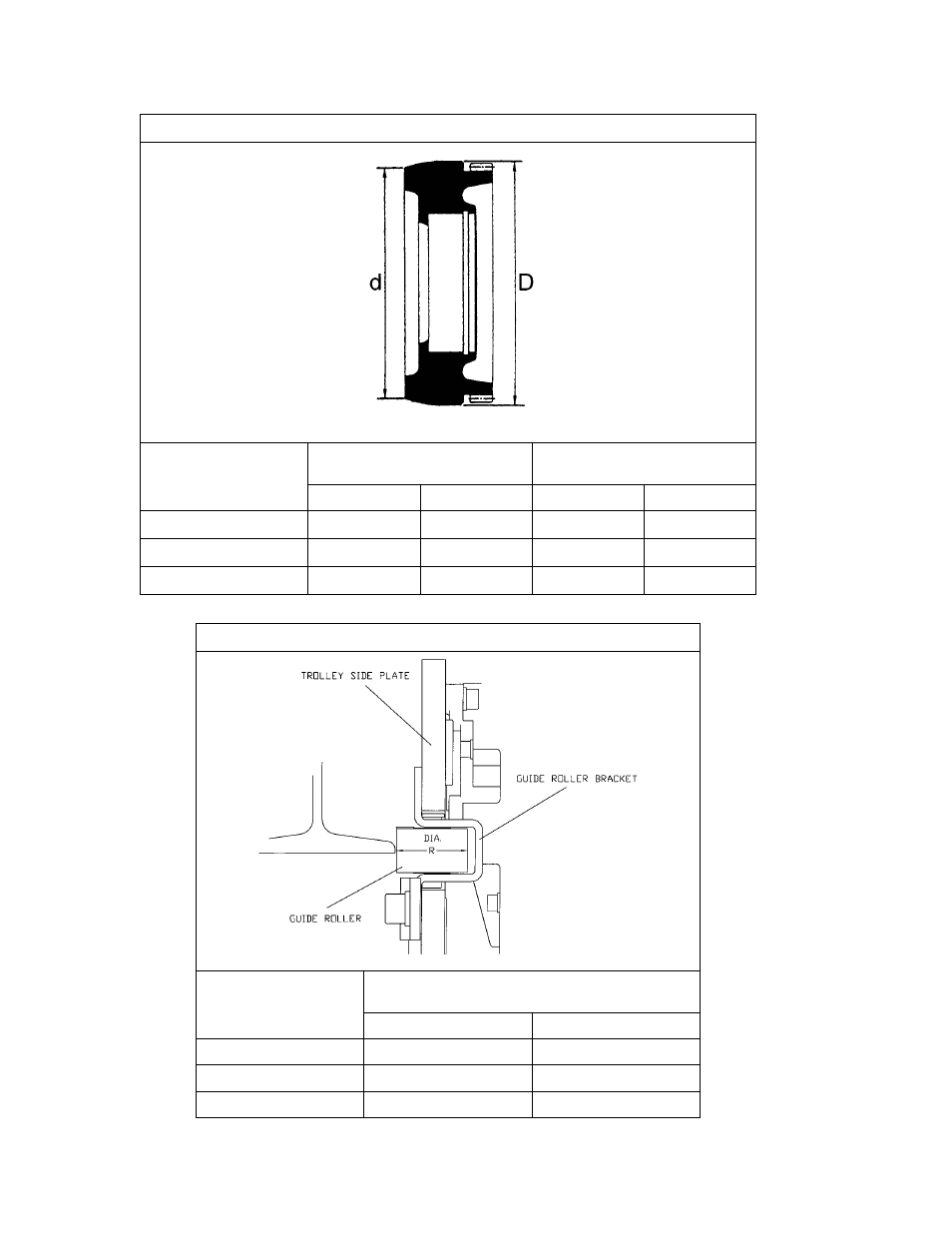

Track Wheel Wear Dimensions
Note: Track wheels are for flat and tapered flanges.
“d” Dimension
inch (mm)
“D” Dimension
inch (mm)
Trolley Code
Standard
Discard
Standard
Discard
MCR1000
3.60 (91.5)
3.44 (87.5)
3.74 (95)
3.58 (91)
MCR3000
4.76 (121)
4.49 (114)
4.92 (125)
4.65 (118)
MCR6000
6.34 (166)
6.14 (156)
6.89 (175)
6.50 (165)
Table 5-5
Side Roller Wear Dimensions
“R” Dimension
inch (mm)
Trolley Code
Standard
Discard
MCR1000
1.50 (38)
1.46 (37)
MCR3000
1.69 (43)
1.65 (42)
MCR6000
2.24 (57)
2.20 (56)
