Harrington Hoists and Cranes MCR Trolley User Manual
Page 12
12

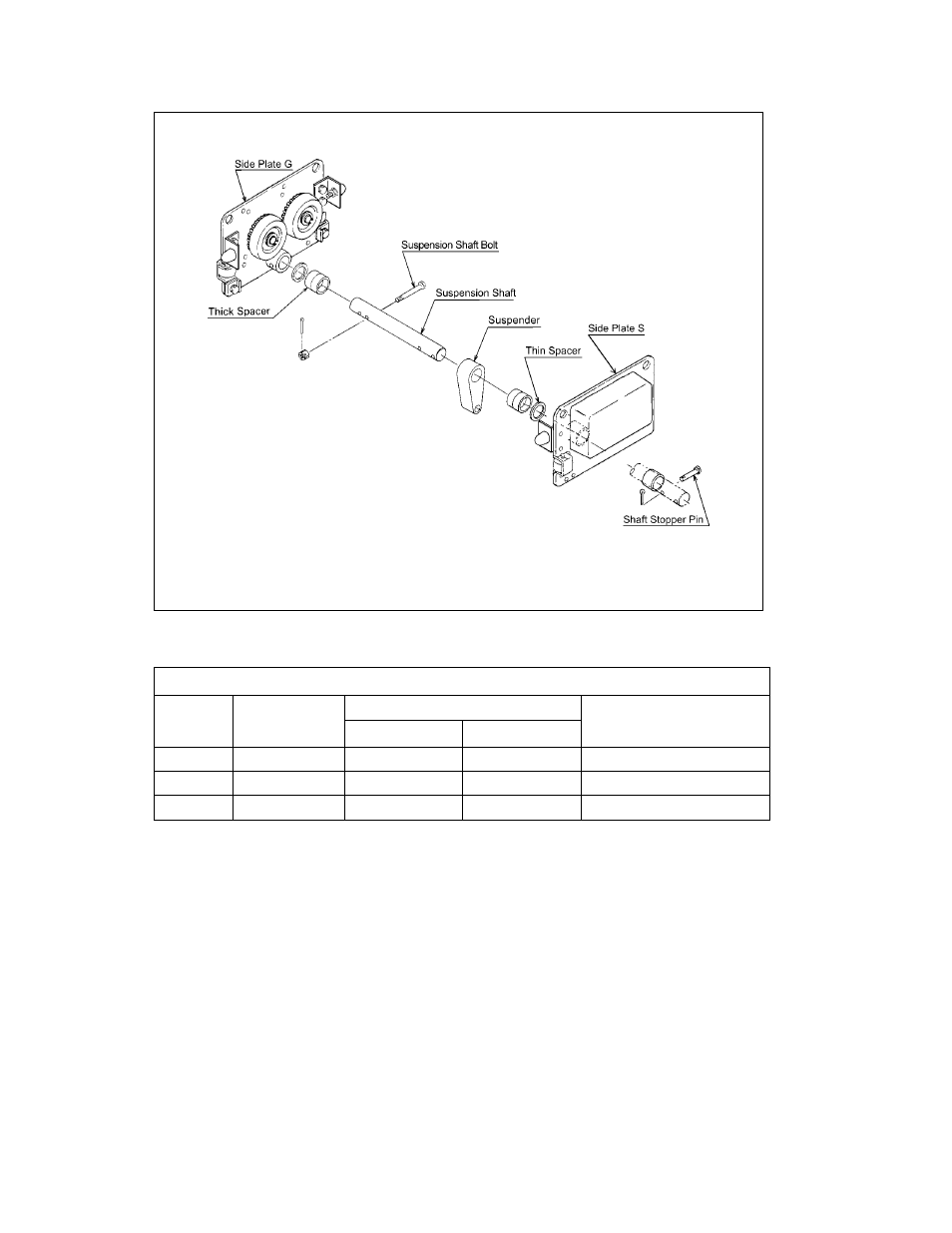

Figure 3-3
Assembling the Trolley
Table 3-1
Suspension Shaft Adjusting Spacers, and Suspension Shaft Bolt
Total Number of Spacers Supplied
Product
Code
Flange Range
(in)
Thin
Thick
Suspension Shaft Bolt
Location
MCR1000
2.28 to 5.00
8
5
Hole 2
MCR3000
3.94 to 6.02
8
3
Hole 2
MCR6000
4.92 to 7.02
8
3
Hole 2
