2.0 Technical Information
2.1 Specifications

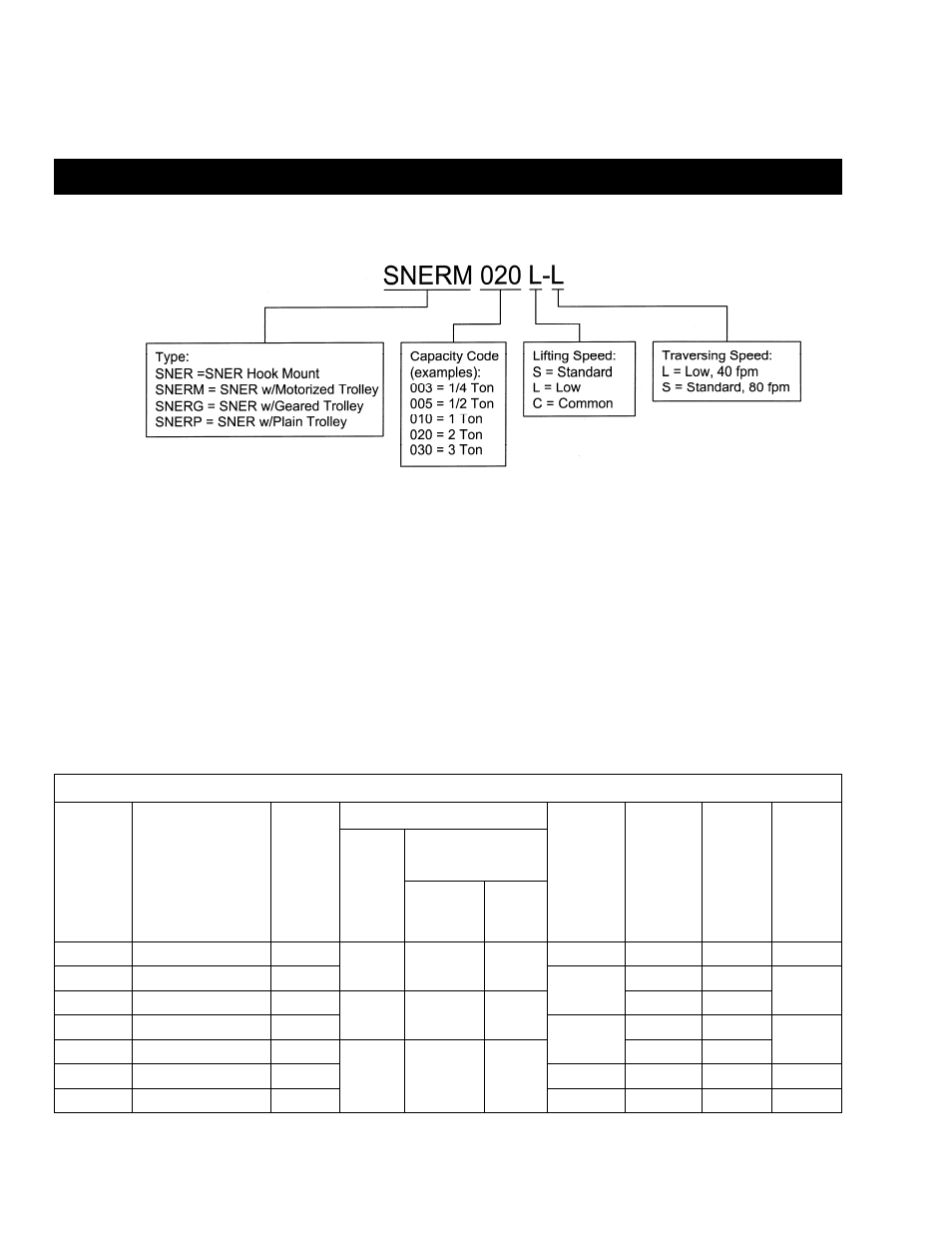

2.1.1 Product Code
2.1.2 SNER Models – Harrington SNER series hoists have a friction clutch mechanism that provides over
winding protection.
2.1.3 Operating Conditions and Environment
Temperature range: -4° to +104°F (-20° to +40°C)
Relative Humidity: 85% or less
Enclosure Rating: Hoist Meets IP 55, Pendant Meets IP65
Supply Voltage: Standard 115/230V-1-60 (Single Phase)
Speed: Single
ASME Duty Classification: H4
Intermittent Duty Rating: 60% ED
Maximum Number Starts per Hour: 360
Short Time Duty Rating: 60 min.
Table 2-1 Hoist Specifications
Capacity
(Ton)
Code
Lifting
Speed
(ft/min)
Motor Load
Chain
Wire
Diameter
(mm) x
Chain
Fall
Lines
Load
Sheave
Pockets
Net
Weight
(lbs)
Weight
for One
Addnl.
FT. of
Lift
(lbs)
Output
(Hp)
Current Draw
(amps)
115V 230V
1/4 SNER003S 14
0.34 7.7 3.9
5.0 x 1 5 82 0.37
1/2 SNER005L 7
6.3 x 1
4 84
0.57
1/2 SNER005S 15
0.6 16.9 8.5
5 104
1 SNER010L 7
8.0 x 1
4 110
0.93
1 SNER010S 14
1.2 23.9 12.0
5 159
2 SNER020L 7 10.0 x 1 4 174 1.5
3 SNER030C 3.5 10.0 x 2 4 207 3.1
