Packaging and Handling
o
V GE =15V
T =125 o C, V =15V
Solidtron TM
N-Type Semiconductor Discharge
Switch, ThinPak TM
Data Sheet (Rev 0 - 07/16/08)
CCSSC14N40A10
275 Great Valley Parkway
Malvern, PA 19355
Ph: 610-407-4700
Fax: 610-407-3688
1. Use thermal grease to mount device to cold plate.
2. Consult factory for mounting torque.
3. Do not exceed 175°C device body temperature when soldering leads
of the package or internal package gradation may result.
4. 'ATTENTION OBSERVE PRECAUTIONS FOR HANDLING
ELECTROSTATIC DISCHARGE SENSITIVE DEVICES IN ALL
ASSEMBLY AND TEST AREAS'
5. Shorting resistor RGK is application specific. It can control the gate
drive requirements and some device properties. However, RGK = 10
Ohms satisfies most application requirements.
6. All metal surfaces are flash gold over nickel plating for solderability.

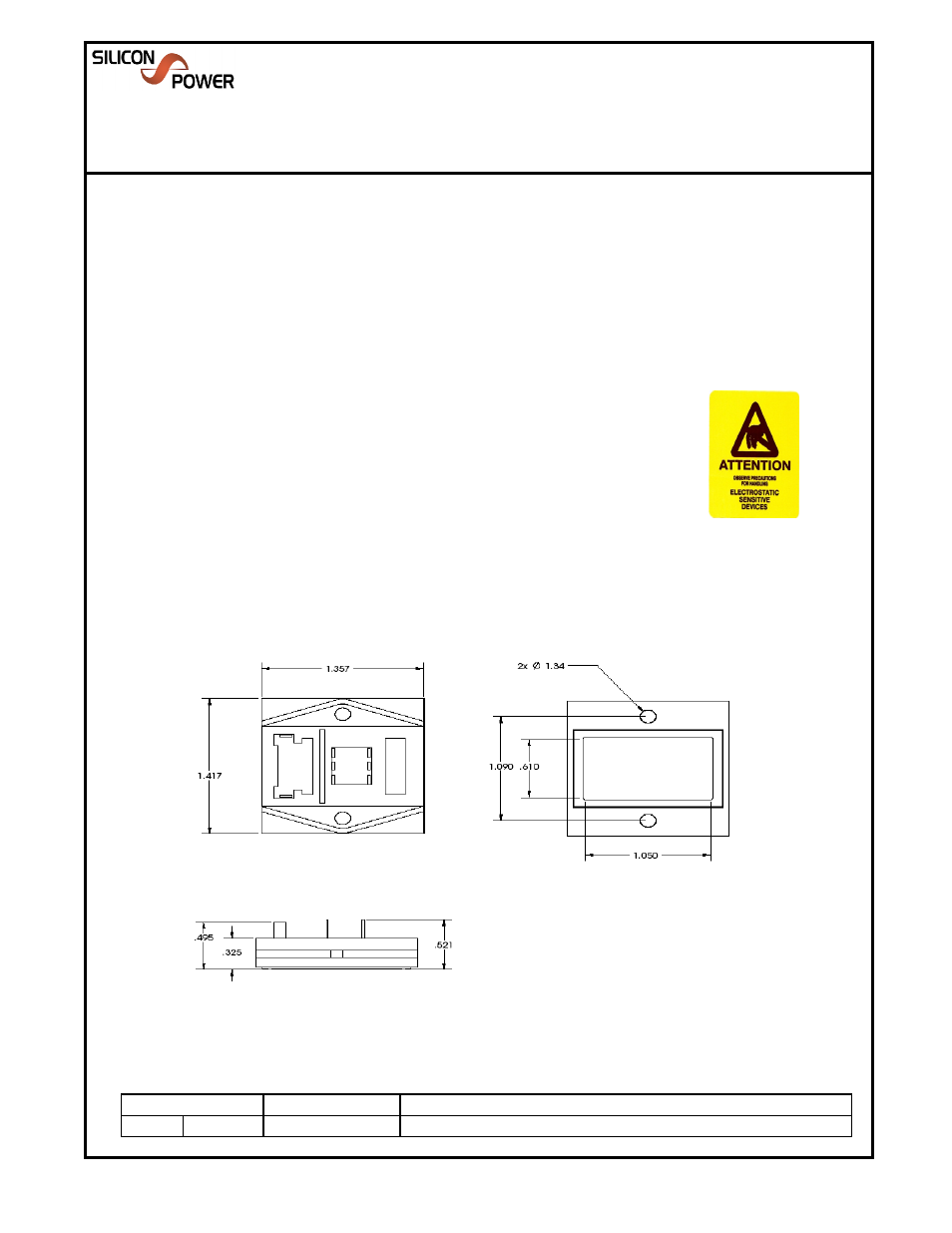

Dimensions
Revision History
Rev EA #
0 04242009-NB-0018
CAO 05/28/09
Date Nature of Change
07-16-2008 Initial Issue
CAO 05/28/09
