PSM80BA10
Power Semiconductor Half-Bridge Module

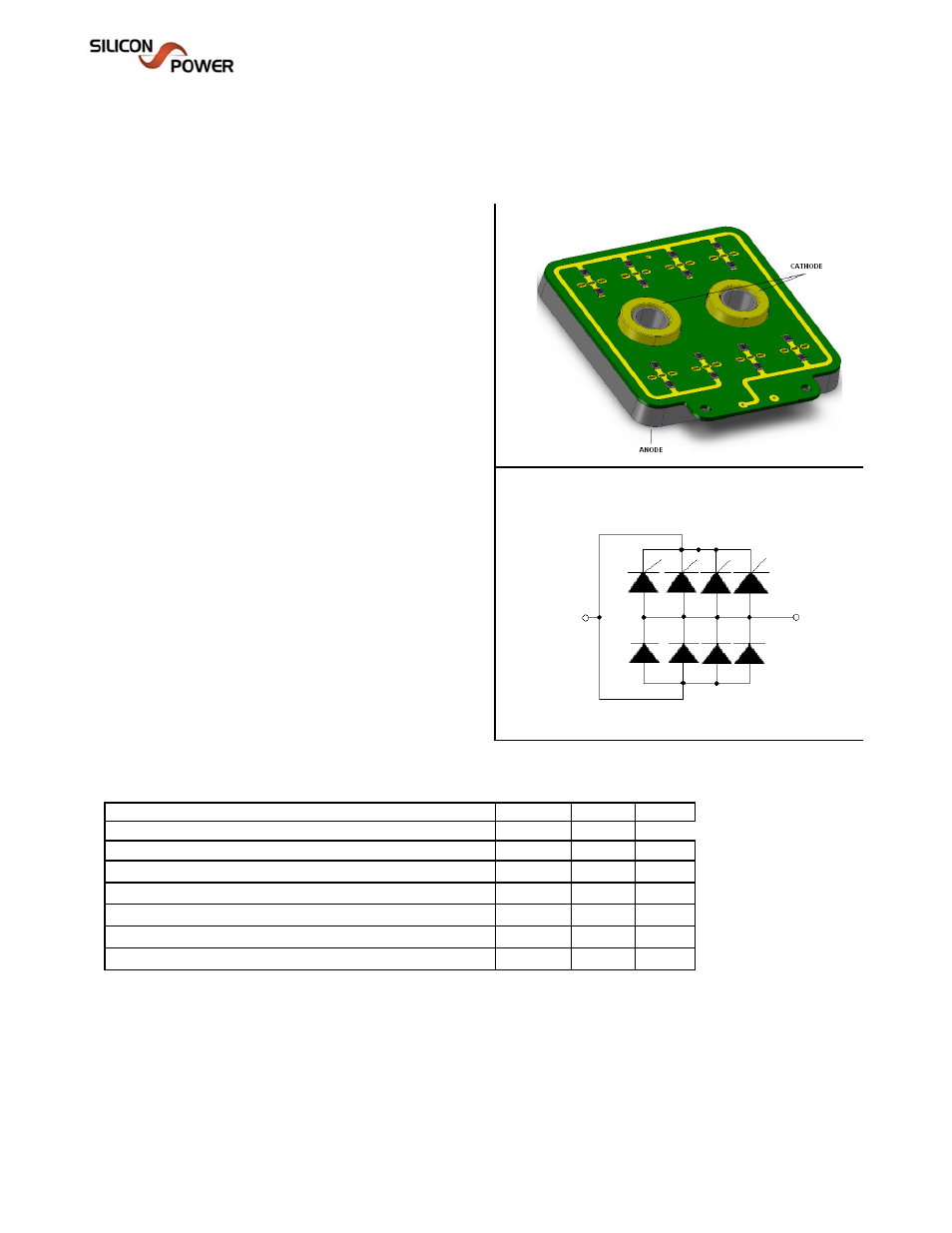

Package
Schematic Symbol
PSM80BA10
Power Semiconductor Half-Bridge Module
Data Sheet (Rev 01- 05/28/09)
Description
This module contains 4 Solidtron (CCS) Size 12 SGTOs
and 4 Size 12 S-Diodes, packaged for use in a solid
state current limiter or similar applications. This
module provides connections for the AC input and
output bus. The module includes an electrically
conductive base-plate. The module is typically used
at 60Hz.
The gate drive for the SGTOs are integrated into the
module and is powered by an external isolated 15V
DC supply.
The current controlled Solidtron (CCS) SGTO is an n-
type Thyristor in a high performance ThinPak
TM
package. The device gate is similar to that found on a
traditional GTO Thyristor. The CCS features the high
peak current capability and low On-state voltage drop
common to SCR thyristors combined with high dI/dt
capability.
Application Specific Operating Conditions
SYMBOL VALUE UNITS
Peak Off-State Voltage (60Hz, 3 pulse) VDRM 4 kV
Off-State Rate of Change of Voltage Immunity dv/dt 1 kV/uSec
Repetitive Peak Anode Current (Pulse Width=30 uSec) IASM 15 kA
Gate Assisted Turn-off tqq < 15 uSec
Operating Junction Temperature TJO 125 oC
Maximum Junction Temperature TJM 140 oC
I2t for 8.3 ms, half-sine wave, Ipeak = 4kA I2t A2s
Anode-Cathode On-State Voltage at Tj = 140 C, VT 1.2 V
This SILICON POWER product is protected by one or more of the following U.S. Patents:
CAO 05/28/09
5,446,316
5,557,656
5,564,226
5,517,058
4,814,283 5,521,436
5,585,310
5,248,901
5,366,932
5,497,013 5,105,536
5,777,346
5,446,316
5,577,656
5,473,193 5,209,390
5,139,972
5,103,290
5,028,987
5,304,847 4,958,211
5,111,268
5,260,590
5,350,935
5,640,300 5,206,186
5,757,036
5,777,346
5,995,349
4,801,985 4,857,983
4,888,627
4,912,541
5,424,563
5,399,892 5,082,795
4,980,741
4,941,026
4,927,772
4,739,387 4,644,637
4,374,389
4,750,666
4,429,011
5,293,070
Application Specific Operating Conditions
For Each Module:
• Frequency = 60 Hz
• Blocking Voltage (peak) = 4 kV
• Current (rms) = 700A, 50% duty cycle
Features
• Low On-State Voltage
• Low trigger current
• Low Inductance Package
Module Operating Characteristics
