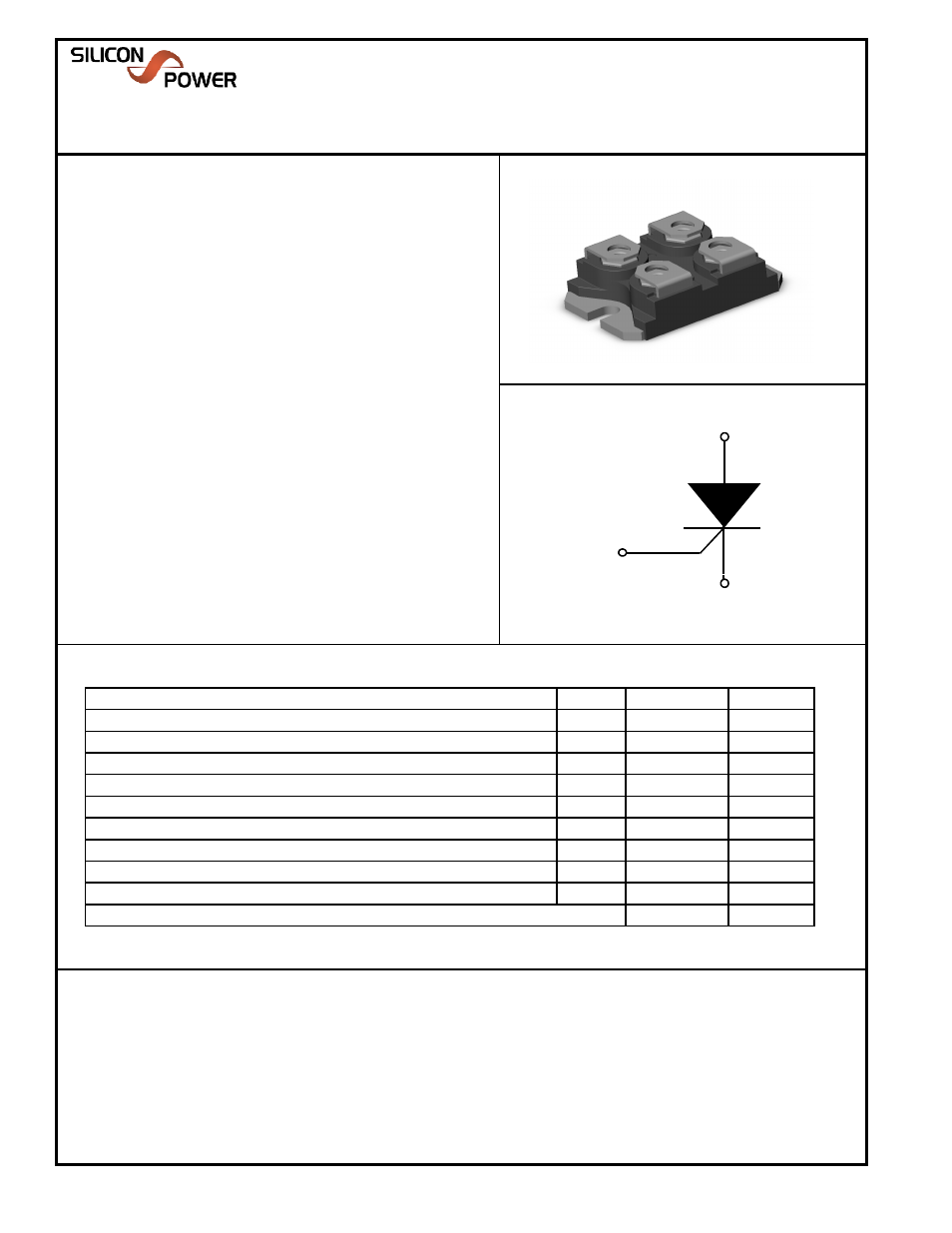

Description Package Size - 9
Schematic Symbol
Features
This current controlled Solidtron TM (CCS) semiconductor
discharge switch is an n-type Thyristor in a high performance
SOT-227 package. The device gate is similar to that found on a
traditional GTO Thyristor.
The CCS features the high peak current capability and low On-
state voltage drop common to SCR thyristors combined with high
di/dt capability. This semiconductor is intended to be a solid
state replacement for spark or gas type devices commonly used
in pulse power applications.
3000V Peak Off-State Voltage
5 kA Repetitive Ipk Capability
25 KA/uS di/dt Capability Low On-State Voltage
Low trigger current
Low Inductance Package
Anode (A)
Gate (G)
275 Great Valley Parkway
Malvern, PA 19355
Ph: 610-407-4700
CCSAB53N30A10
Solidtron TM
N-Type Semiconductor Discharge Switch, SOT-227
Data Sheet (Rev 0 - 03/30/09)
Absolute Maximum Ratings
SYMBOL VALUE UNITS
Peak Off-State Voltage V
DRM
3 kV
Peak Reverse Voltage V
RRM
-5 V
Off-State Rate of Change of Voltage Immunity* dv/dt 1 kV/uSec
Continuous Anode Current at Tj = 125 o C I
A110
50 A
Repetitive Peak Anode Current (Pulse Width=10uSec) I
ASM
5.0 kA
Nonrepetitive Peak Anode Current (Pulse Width=10uSec) I
ASM
8 kA
Rate of Change of Current dI/dt 25 kA/uSec
Peak Gate Current (1 uS)
IGpk
50 A
Max. Reverse Gate-Cathode Voltage V
GR
-9 V
Maximum Junction Temperature T
JM
125 o C
Maximum Soldering Temperature (Installation) 260 o C
This SILICON POWER product is protected by one or more of the following U.S. Patents:
CAO 05/28/09
5,446,316
5,557,656
5,564,226
5,517,058
4,814,283
5,135,890 5,521,436
5,585,310
5,248,901
5,366,932
5,497,013
5,532,635 5,105,536
5,777,346
5,446,316
5,577,656
5,473,193
5,166,773 5,209,390
5,139,972
5,103,290
5,028,987
5,304,847
5,569,957 4,958,211
5,111,268
5,260,590
5,350,935
5,640,300
5,184,206 5,206,186
5,757,036
5,777,346
5,995,349
4,801,985
4,476,671 4,857,983
4,888,627
4,912,541
5,424,563
5,399,892
5,468,668 5,082,795
4,980,741
4,941,026
4,927,772
4,739,387
4,648,174 4,644,637
4,374,389
4,750,666
4,429,011
5,293,070
25 KA/uS di/dt Capability Low Inductance Package
Cathode (K)
