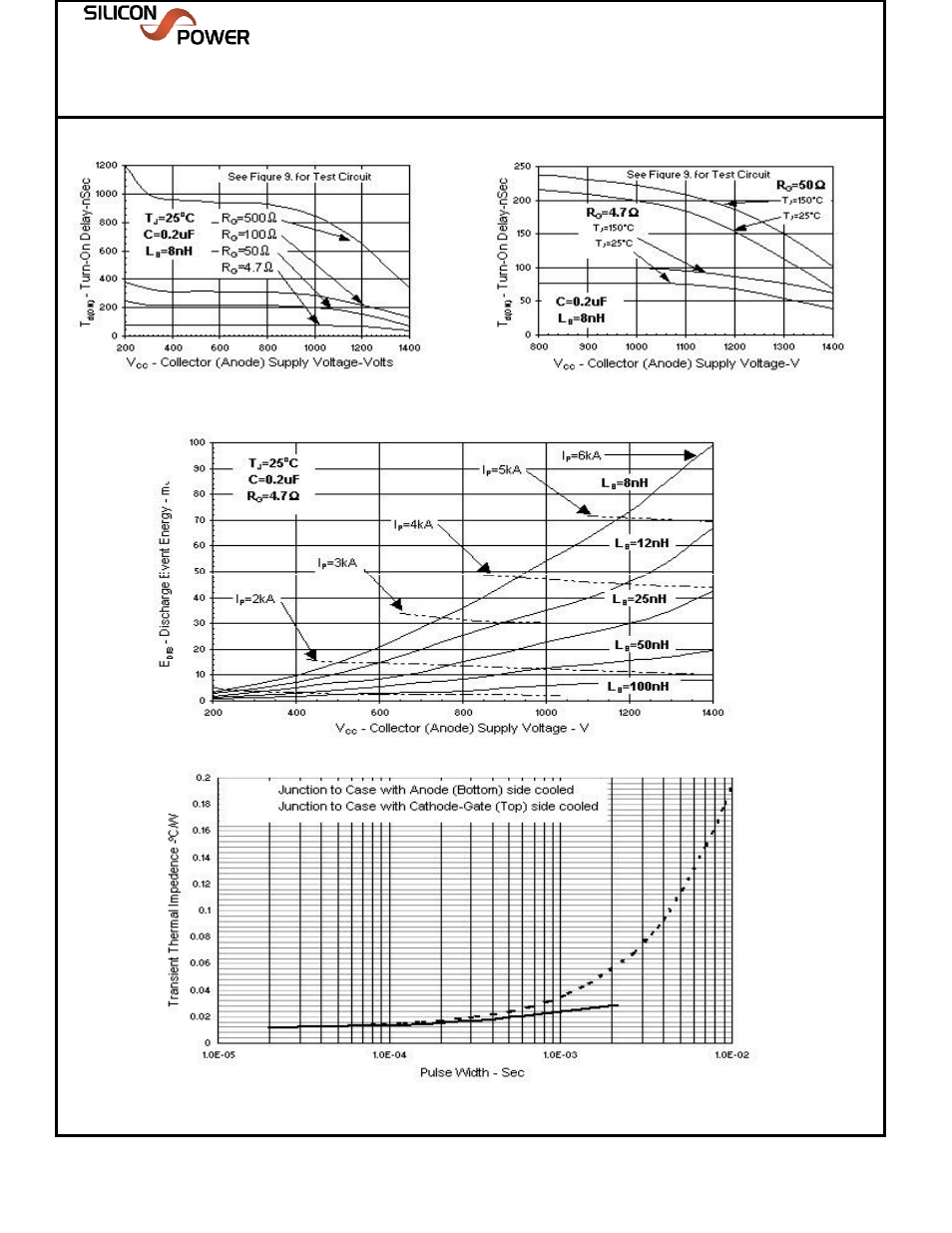

Typical Performance Curves (Continued)
Figure 4. Turn-On Delay Characteristics Figure 5. Turn-On Delay Characteristics
R
G
=4.7Ω - 500Ω, T
J
=25
o
C R
G
=4.7Ω & 50Ω, T
J
=25
o
C & 150
o
C
Solidtron TM
N-MOS VCS, ThinPak
Data Sheet (Rev 0 - 02/15/08)
SMCTTA65N14A10
275 Great Valley Parkway
Malvern, PA 19355
Ph: 610-407-4700
Figure 6. 0.2uF Discharge Pulse Performance Characteristics (See Figure 9.)
Figure 7. Transient Thermal Impeadance Response
CAO 05/28/09
