Typical Performance Curves
(Continued)

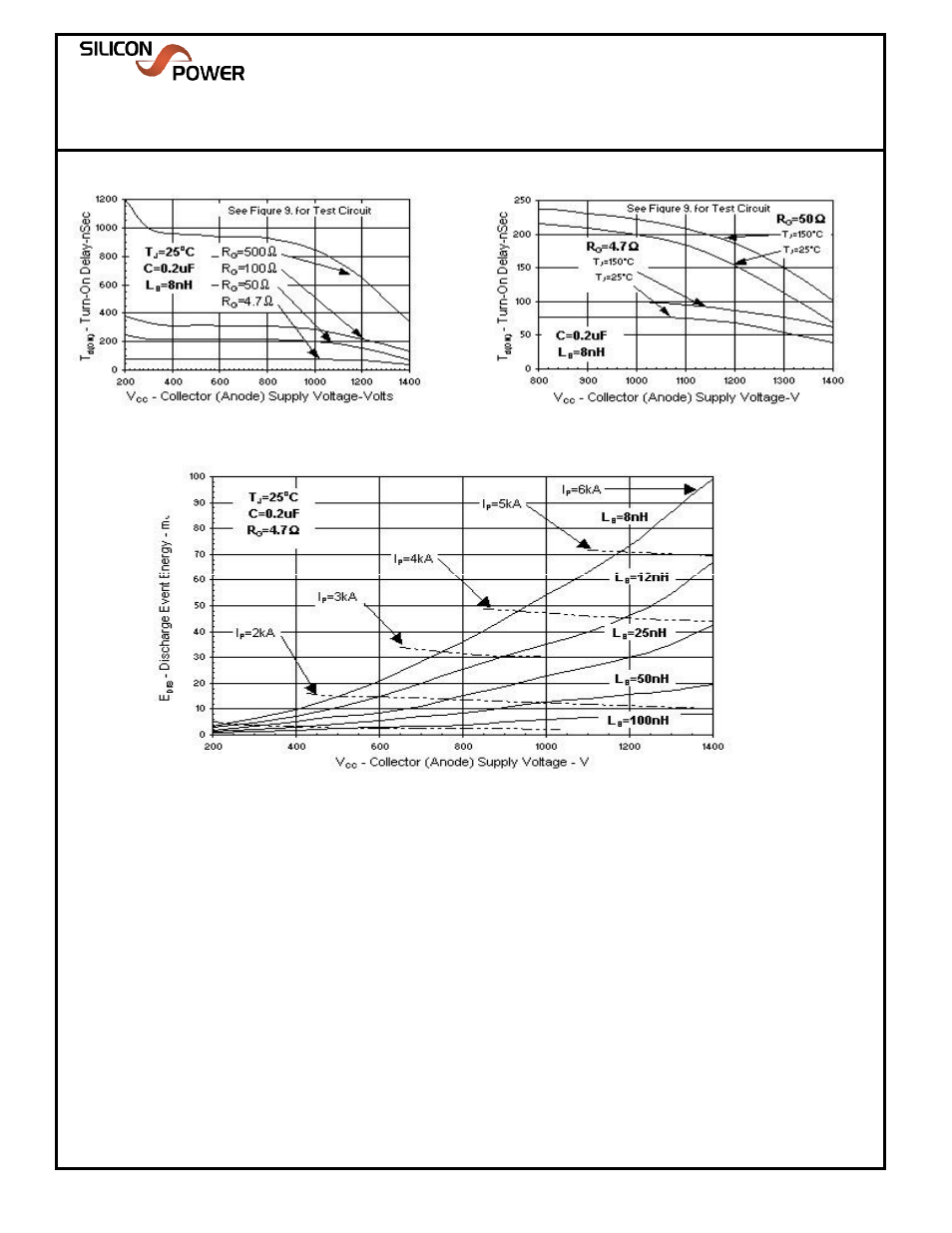

Figure 4. Turn-On Delay Characteristics
Figure 5. Turn-On Delay Characteristics
R
G
=4.7Ω - 500Ω, T
J
=25
o
C
R
G
=4.7Ω & 50Ω, T
J
=25
o
C & 150
o
C
Solidtron
TM
N-MOS VCS, TO-247
Data Sheet (Rev 0 - 02/15/08)
SMCTAA65N14A10
275 Great Valley Parkway
Malvern, PA 19355
Ph: 610-407-4700
Figure 6. 0.2uF Discharge Pulse Performance Characteristics (See Figure 9.)
