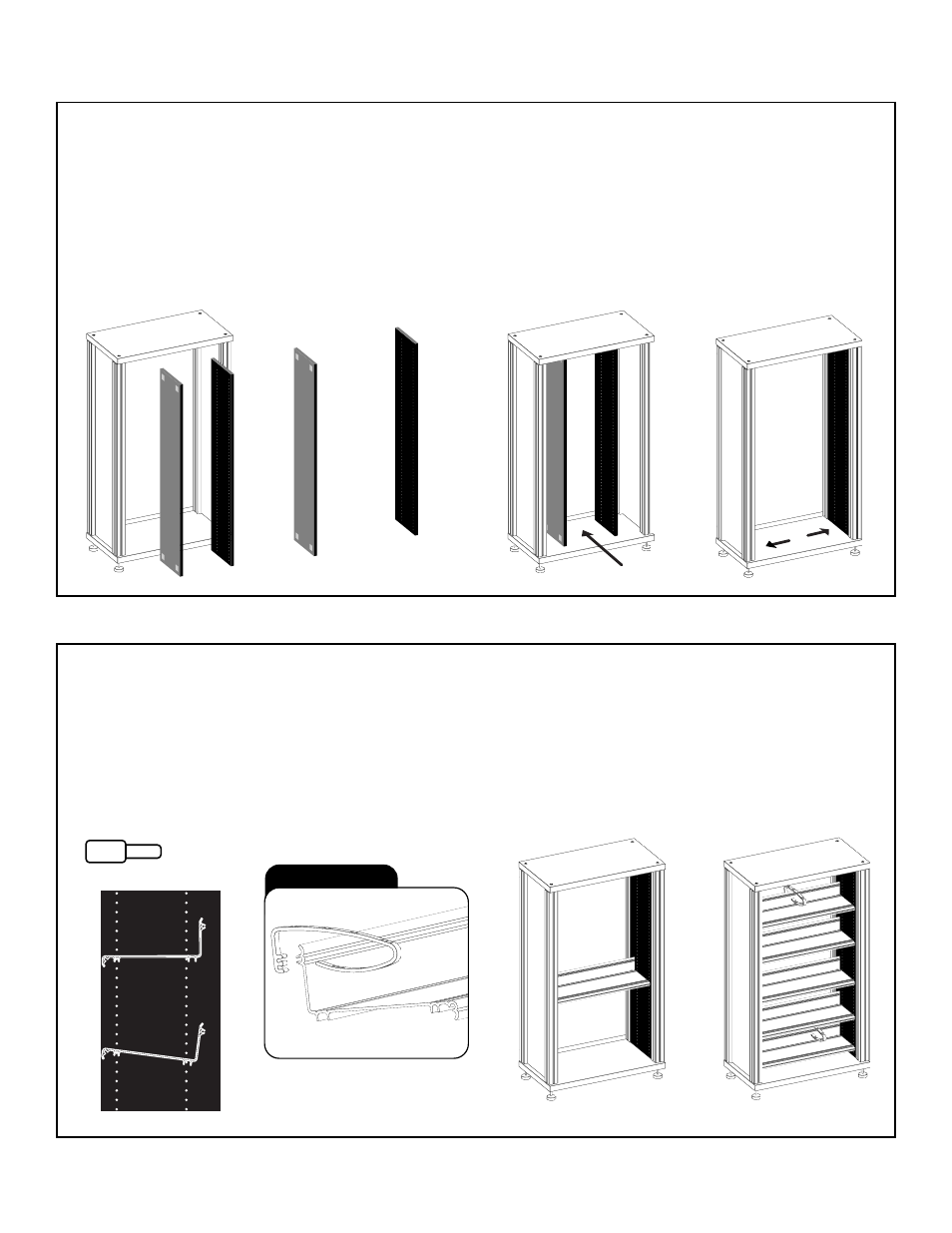

A. Prepare Interior
Panels
The two panels for inserting the
shelf pins are identical. The
holes face inward with the unfin-
ished side against the side pan-
els. The black finished edge
faces front.
B. Apply Tape
Apply the provided tabs of dou-
ble sided tape to the
corners of the unfinished
that will go against the
inside of the side panels.
C. Insert Panels
Slide Panels in and press cor-
ners firmly against side panels.
D. Finished View
If you have made a mistake the
top can be removed and the
panels rotated to fit in correctly.
3. Insert Interior Panels
4. Inserting Pegs and adjusting shelf angles
B. Install remaining shelves
Finish installing the remaining shelves.
A general guideline for pin count between shelves is: 9 holes for
CDs, 13 holes for DVDs and 15 holes for VHS. These are based
on gaps between front pins. Adjust angle by lowering back pins
one or two holes
A. Insert Shelf Pins and add book-ends
The shelves can be inserted at various heights and angles to accomodate
different media types. By adjusting the height of the pins the angle of the
shelves can be adjusted, from level to angled back.
Add book-ends to shelves. Slide the book-end onto the back of the
extruded shelves. They may be on any shelf, we recommend the top and
bottom
Shelf Pin
Book-end assembly
