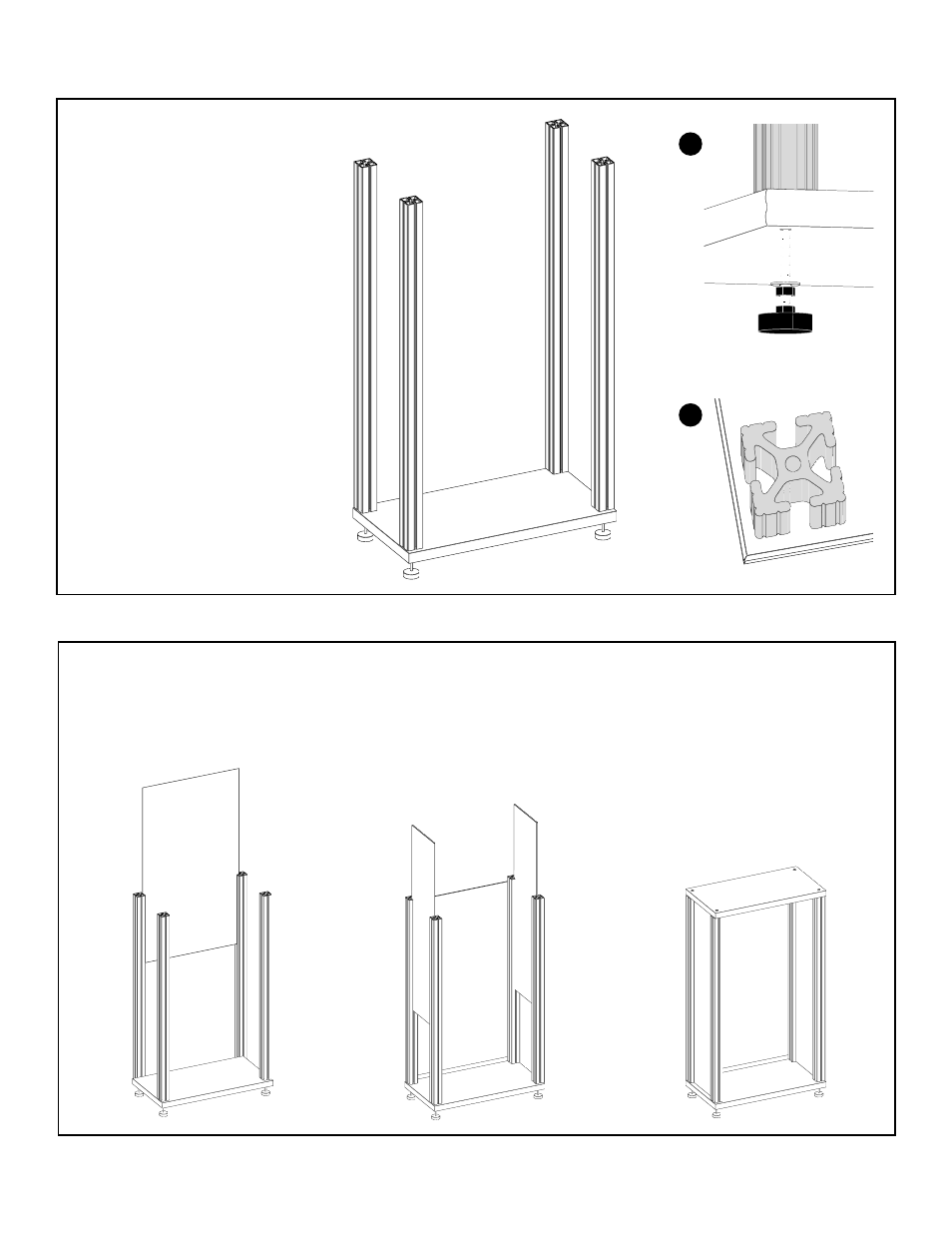

1. Connect Posts to
Bottom Shelf
The top and bottom shelves are
the same. Choose your favorite
grain pattern for the top shelf.
Screw leveler foot through bot-
tom shelf onto the end of an
extruded post (A). Hand tighten
fully then use wrench on hex
nut to back tighten nut onto
underside of shelf. Make sure to
square the post to the bottom
shelf (B).
NOTE: Two standard Synergy
Shelf Pegs have been included
to be used as door stops should
an optional door be fitted to the
rack. Install the pegs at the top
and bottom of the post opposite
the door hinges.
A
B
A. Insert Rear Panel
Slide Rear Panel into the channels facing
each other on the rear posts.
B. Insert Sides
Slide the side panels down the channels on
the posts.
C. Attach Top
Align top shelf over the posts. Insert the four
connector bolts through the holes in the top
shelf and secure top.
2. Insert Rear Panel and Sides
