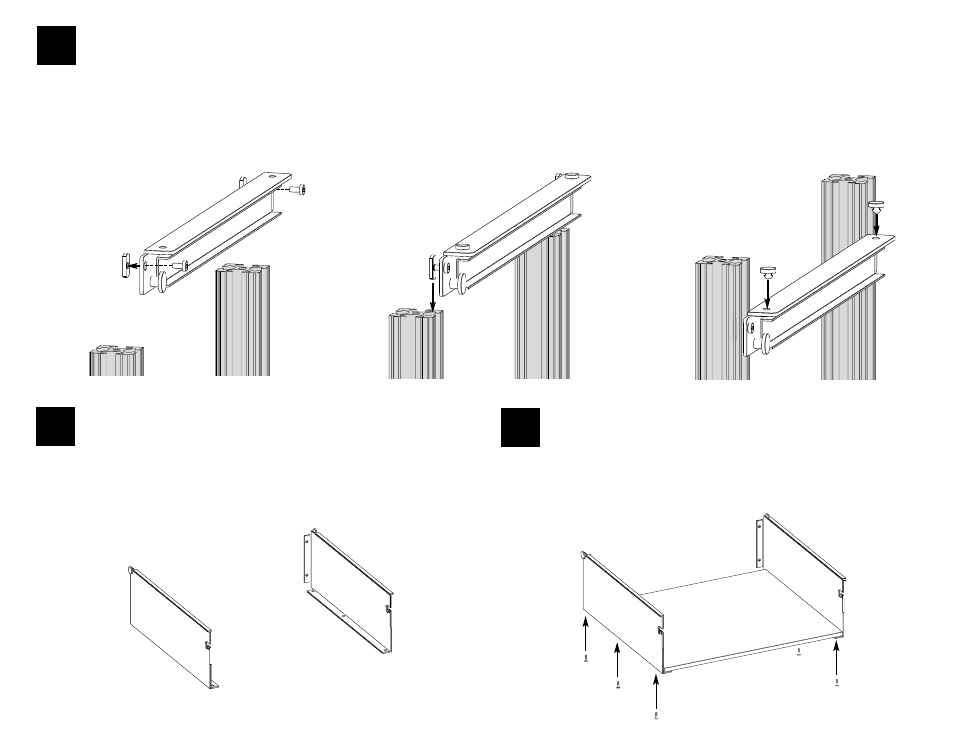

Insert Drawer Slides

3

Layout Sides

Place the sides parallel to each other with the rollers on the top outer corners.

Place Bottom

Place the bottom panel in between slides with the rounded edge facing
forward and make sure the pre-drilled holes are on the underside. Match the
bracket holes with the pilot holes and attach six black screws from bottom.

4

A

.

Place the low heads in the 2 holes of each

drawer slide and attach loosely.

B

.

Insert the weld nuts into the channels

making sure that the rollers face the front of
the rack. Use the Spacer Tool provided and
the instructions on opposite side to help space
the drawer(s) as desired.

C

.

Insert the Rubber Tabs into the 2 holes

on the shorter part of the bracket with the
flat side facing up.
