Salamander Designs Synergy System SB221C/B - Manual (Page 4)

A
.

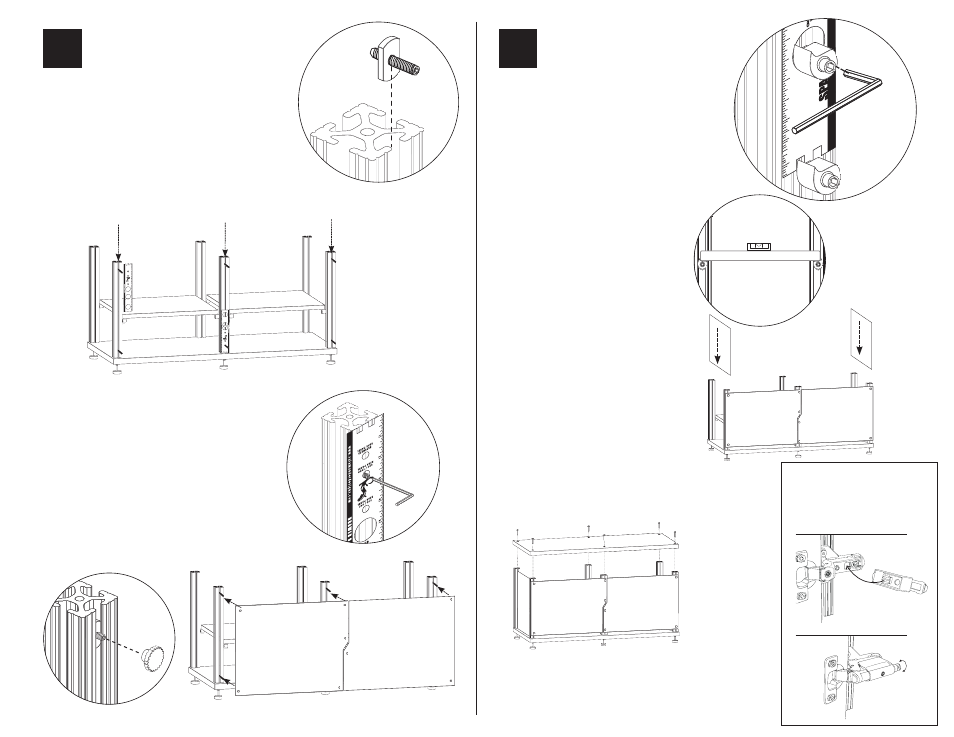

Insert Hardware
Combine the 1” threaded studs with the flat nuts.
Slide 2 sets of hardware down the two outside
posts and 4 sets down the two center posts.
Allow studs to remain loose at bottom of post.
B
.
Position & Secure Studs
Align the Spacer Tool at the top of each post,
then position top studs through the small “Rear
Panel” hole. Repeat this step with the bottom
studs aligning the Tool along the bottom of
post to set spacing for cable passage.
Use
the hex key to secure the top and bottom
studs to the posts.
C
.
Place Rear Panels
Secure each panel in place with thumb nuts.
1
2
3
4
5
6
7
8
9
S2 0 / SV DO REA R P ANE L
41/ 2 "
6"
8"
www.salamanderdesigns.com EX TEN DED REA R P ANE L
S3 0 / S4 0 REA R P ANE L
SP ACER TOOL
1
2
3
4
5
6
7
8
9
S20 / SVDO REAR PANEL
41/2"
6"
8"
www.salamanderdes
igns.com
EXTENDED REAR PANEL
S30 / S40 REAR PANEL
1
2
3
4
5
6
7
8
9
S20 / SVDO REAR PANEL
41/2"
6"
8"
www. sa lam an de rde si gn s. co m
EXTENDED REAR PANEL
S30 / S40 REAR PANEL
2X 4X 2X
REAR
Attach Rear Panels
C
.
Insert Side Panels
Carefully slide side panels down center
channel of outside posts. Be sure the
posts are square to the bottom shelf to
prevent any damage to side panels.
D
.
Secure Top
Secure top with the 6 connector bolts
to complete installation.
B
.
Fine Tuning
Use the bubble level to precisely adjust
the shelves. Be sure to level both sides
as well as front to back. Use the hex
key to tighten each peg.
A
.
Placing & Adjusting Shelves
Place shelves from the bottom up. Angle the
shelf in between the front post and set on top
of shelf pegs. Use the Spacer Tool to adjust
spacing between shelves. Position the peg
through the Spacer and tighten.
5
Final Assembly
4
Doc No. 500-720/v4.12 221 -4 of 4
