Salamander Designs Synergy System SB221C/B - Manual (Page 2)

1
B
B
A
A
Leveler Foot
Hex Nut
Washer
B
.
Connect Post
Screw foot with metal washer
through bottom shelf and into
the end of each extruded post.
Hand tighten fully and use
wrench to tighten nut
onto underside of shelf.
90 O
A
.
Square Post
Square the post to the bottom shelf.

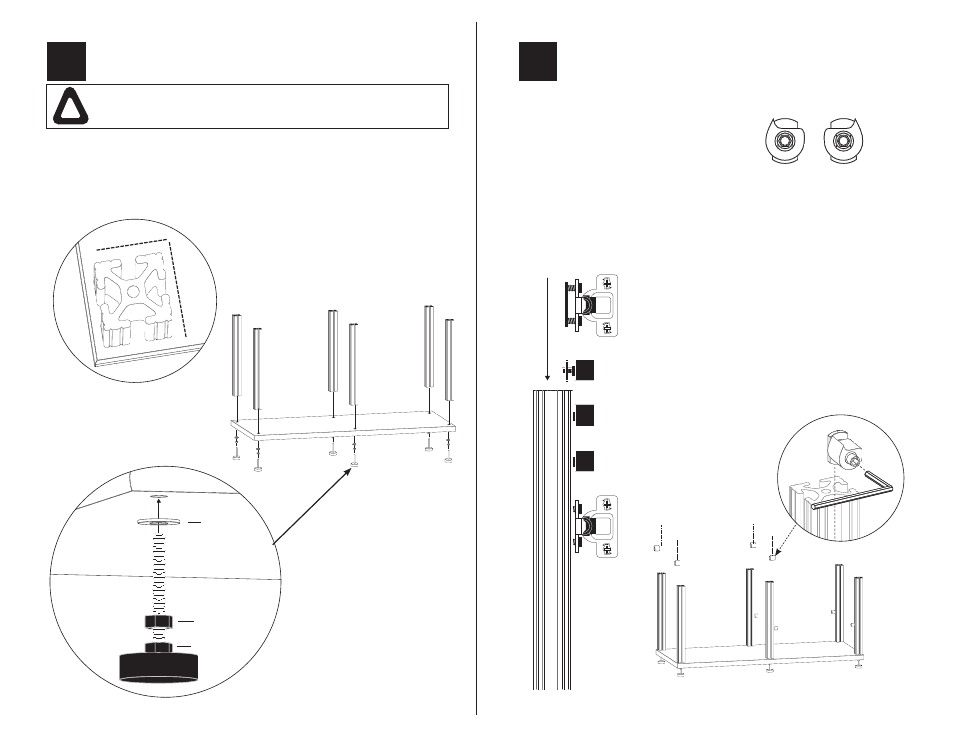

Connect Posts to Bottom Shelf
WARNING: Tighten by screwing the leveler foot NOT the post.
2
Add Shelf Pegs & Door Hinges
! !
B
.
Insert Hinges & Add Shelf Pegs
Note: The doors can be either left or right side opening. Select a side to open each
door.
1. Slide the bottom hinge plate through front
post channel.
2. Insert one shelf peg.
3. Slide top hinge plate through.
4. Slide all other shelves in place and gently tighten
with the hex key to desired position as shown.
A
.
Group Shelf Pegs
There are two varieties of shelf pegs (A and B).
They are designed to cradle the shelf in place.
Refer to drawing.
A B
Doc No. 500-720/v4.12 221 -2 of 4
