Robertshaw SlimZone PREMIER ZONE CONTROL PANEL - Manual (Page 2)

ITEM SZP-3 SlimZone ® Premier
3 Zone Logic Panel
SZEX SlimZone ® Premier
2 Zone Expander Module
POWER REQUIREMENTS Dedicated 24 VAC, 75 VA
transformer
OPERATION Timeshare
Differential
FUNCTIONAL RATINGS 14˚F to 158˚F (-10˚C to 70˚C)
STORAGE RATINGS -4˚F to 158˚F (-20˚C to 70˚C)
AMBIENT TEMPERATURE MAXIMUM CURRENT
-4˚F (-20˚C) 3.40 amps
32˚F (0˚C) 2.98 amps
68˚F (20˚C) 2.50 amps
104˚F (40˚C) 2.03 amps
122˚F (50˚C) 1.80 amps
140˚F (60˚C) 1.58 amps
158˚F (70˚C) 1.35 amps
TERMINAL DESIGNATIONS Equipment: W1, W2, W3, W4, Y1, Y2,
Y3, RH, RC, B, O, G1, G2, SMOKE
Thermostat: 1, 2, 3, 4
Zone damper: 24L, 24N, PC, PO
THERMOSTATS DSL-520P
DIMENSIONS 8.875” x 9.5” x 1.75”
(23 cm x 24 cm x 45 cm)
WEIGHT 3 lb. (1.36 kg)
WIRING Low voltage
MINIMUM ON/OFF TIMES Adjustable 2 to 8 minutes
PROTECTION Short cycle
PROGRAM MEMORY Non-volatile
USER INTERFACE Panel setup
System programming
Remote temperature/event scheduling
of all zone thermostats
12/24 hour clock
Temperature display in either ˚F or ˚C
Equipment test
NOTE: It is recommended that the logic panel be installed in a conditioned
environment. If installed in an unconditioned space, the current limiting
devices used in the panel are temperature dependent. The following
linear relationship exists between the ambient temperature and the
operating current.
MODE BUTTON Heat/cool/auto/off
FAN BUTTON Auto/on control
KEYPAD LOCKOUT Prevents setup changes
Limits setpoint adjustments (±3˚)
TEMPERATURE DISPLAY ˚C/˚F
EVENT SYMBOLS Morning/day/evening/night
ROBERTSHAW PANELS
• Classic panel: up to 2 zones
2701-006
up to 3 zones 2701-001
• Deluxe panel: up to 7 zones 2701-002
• Premier panel: up to 19 zones 2702-001
ROBERTSHAW DAMPERS
• Rectangular motorized zone dampers
• Round motorized zone dampers
• Bypass non-electric zone dampers
Robertshaw ® Zone
Control Systems
Design Specifications
•
•
•
•
•
•
DSL-520P Zone Thermostat Design Specifications
Distributed by:
SlimZone ®
PREMIER
ZONE CONTROL PANEL
The Robertshaw SlimZone ® Premier zone control
panel (SZP-3) can be expanded from 3 to 19 zones
by adding the SlimZone
® Premier expansion
modules (SZEX). These modules add 2 zones to the
system per module, and up to 8 expansion modules
can be connected to the system allowing for a total
of 19 zones. The SlimZone
® Premier zone control
panel powers the SlimZone ® expansion modules.

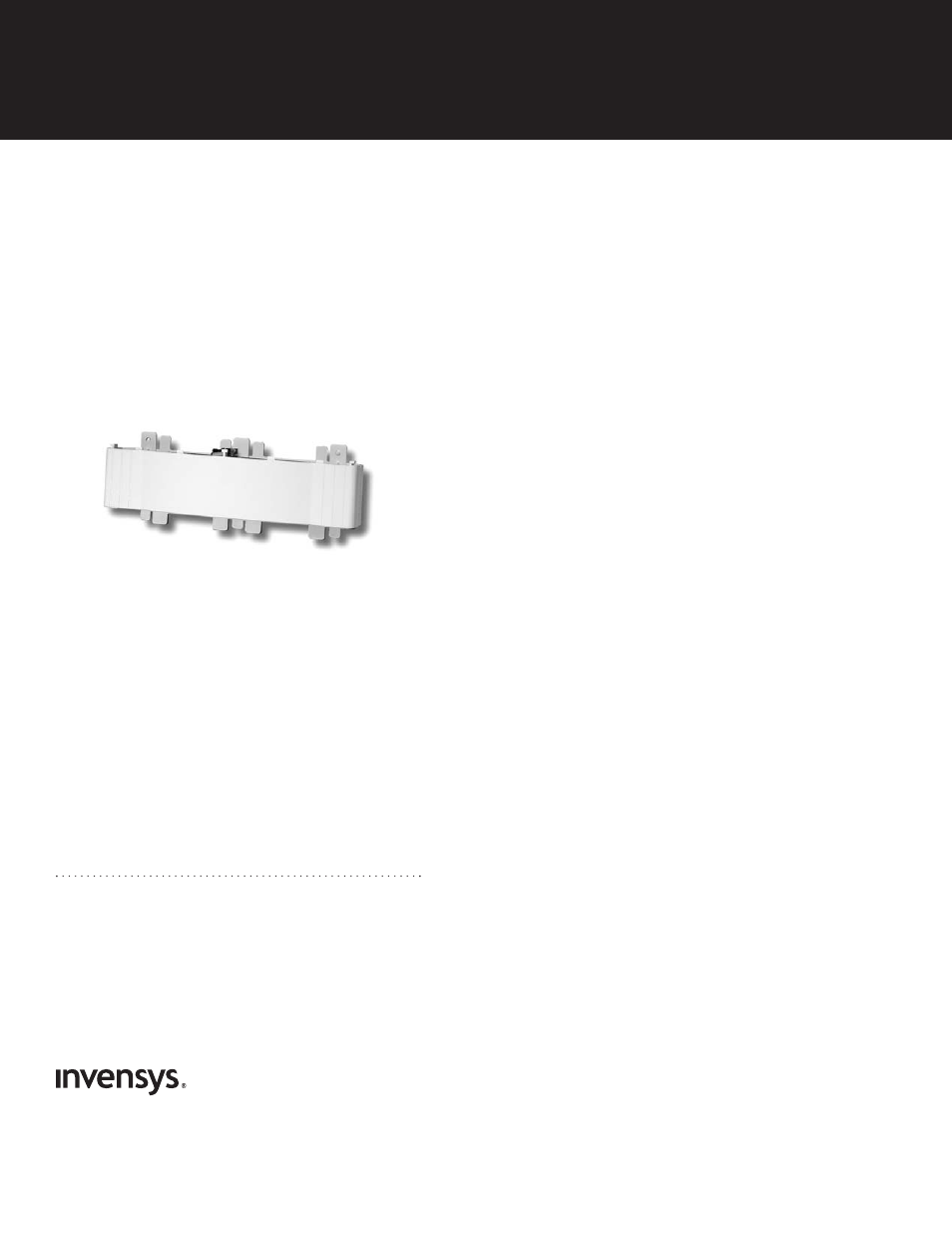

SlimZone ® Premier
2 Zone Expander Module
•
•
•
•
Climate Controls Americas
515 South Promenade Avenue
Corona California 92879-1736 USA
Telephone +1 800 951 5526 Facsimile +1 630 260 7299
[email protected]
Technical Service Telephone +1 800 445 8299
Technical Service Facsimile +1 630 260 7243
[email protected]
www.icca.invensys.com
©2004 Climate Controls Americas 6/04 - #150-1573E
