M90 Handguns - Maintenance
3 1 3 1 3 1 3 1 3 1
The M90 gun incorporates a new feature, that
being a locating air cap. Refer to Figure 3 for a
view showing the locating pin and receiver
holes. This feature gives the capability to spray
with a fan pattern in either horizontal or vertical
positions.

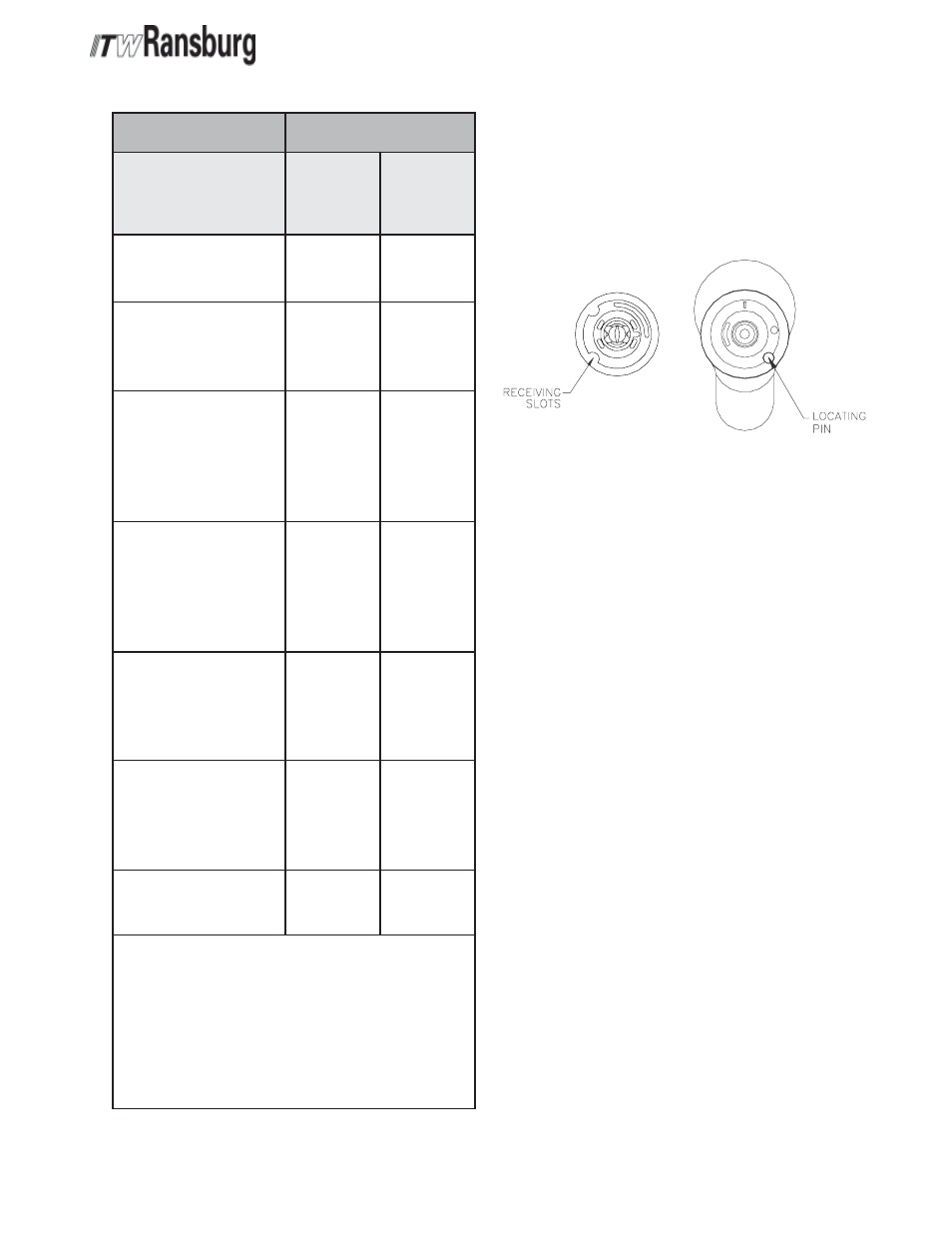

Figure 3: Air Cap Alignment Figure 3: Air Cap Alignment Figure 3: Air Cap Alignment Figure 3: Air Cap Alignment Figure 3: Air Cap Alignment
Figure 2: Nozzle Selection Guide Figure 2: Nozzle Selection Guide Figure 2: Nozzle Selection Guide Figure 2: Nozzle Selection Guide Figure 2: Nozzle Selection Guide
The first two digits of the nozzle dash number
indicate the spray pattern width in inches at a
distance of 10 inches from the target. The
second two digits indicate the orifice size in
thousandths of inches.
For example: 77080-1015 has a 10 inch spray
pattern width and an orifice size of 0.015.
Nozzle Identification Nozzle Identification Nozzle Identification Nozzle Identification Nozzle Identification
77080-0509
77080-0511
77080-0513
77080-0811
77080-0813
77080-0815
77080-0818
77080-1009
77080-1011
77080-1013
77080-1015
77080-1018
77080-1021
77080-1311
77080-1313
77080-1315
77080-1318
77080-1321
77080-1326
77080-1511
77080-1513
77080-1515
77080-1518
77080-1521
77080-1715
77080-1718
77080-1721
77080-1726
77080-1731
77080-1921
77080-1926
77080-1931
5 in.
5 in.
5 in.
8 in.
8 in.
8 in.
8 in.
10 in.
10 in.
10 in.
10 in.
10 in.
10 in.
13 in.
13 in.
13 in.
13 in.
13 in.
13 in.
15 in.
15 in.
15 in.
15 in.
15 in.
17 in.
17 in.
17 in.
17 in.
17 in.
19 in.
19 in.
19 in.
M90 Fluid Nozzle M90 Fluid Nozzle M90 Fluid Nozzle M90 Fluid Nozzle M90 Fluid Nozzle
Part # Part # Part # Part # Part #
Pattern Pattern Pattern Pattern Pattern
Width at Width at Width at Width at Width at
10 in. 10 in. 10 in. 10 in. 10 in.
Nozzle Nozzle Nozzle Nozzle Nozzle
Orifice Orifice Orifice Orifice Orifice
Size in
Size in Size in Size in Size in
Inches Inches Inches Inches Inches
0.009
0.011
0.013
0.011
0.013
0.015
0.018
0.009
0.011
0.013
0.015
0.018
0.021
0.011
0.013
0.015
0.018
0.021
0.026
0.011
0.013
0.015
0.018
0.021
0.015
0.018
0.021
0.026
0.031
0.021
0.026
0.031
