4. Inspect gasket for any damage. Replace if
required.
5. Check the applicator end of the cable assem-
bly to ensure the spring is attached to the cable.
Apply a generous coating of di-electric lubricant
(LSCH0009-00) to the applicator end and the
power supply end of the high voltage cable.
6. Attach the motor to the cable assembly using
the (2) slotted screws and the air inlet slide valve
assembly
7. Slide the entire assembly into the barrel insur-
ing the cable end and all other parts are properly
positioned. Insert the (4) socket head screws and
tighten only by hand.
† Ensure the power is “OFF” to the 9050
power supply prior to rotating the bell in step 9.
8. Mount the applicator in a padded vise and turn
the motor on by turn the switch “ON”. Listen to
the audible pitch of the motor.
9. Alternately tighten (4) socket head screws until
snug. If motor shaft begins to slow (audible pitch
changes), loosen screws slightly to relieve binding.
DO NOT over tighten screws so that gasket is
squeezed outward beyond the outer dimension
of the barrel.
† Over tightening of the (4) socket head
screws can break threaded inserts out of
plastic barrel.
MOTOR ASSEMBLY
REPLACEMENT
1. Follow instructions for removing the cable as-
sembly and motor assembly from the barrel (see
“Cable Assembly Replacement” in the “Mainte-
nance” section).
2. Replace the motor as required.
3. Follow the assembly instructions for replacing
the high voltage cable (see “Cable Assembly
Replacement” in the “Maintenance” section).
HANDLE ASSEMBLY
1. Invert the applicator and remove the (4) socket
head cap screws and lock washers from the un-
derside of the handle assembly with a 9/64-inch
hex key wrench. Refer to Figure 18.

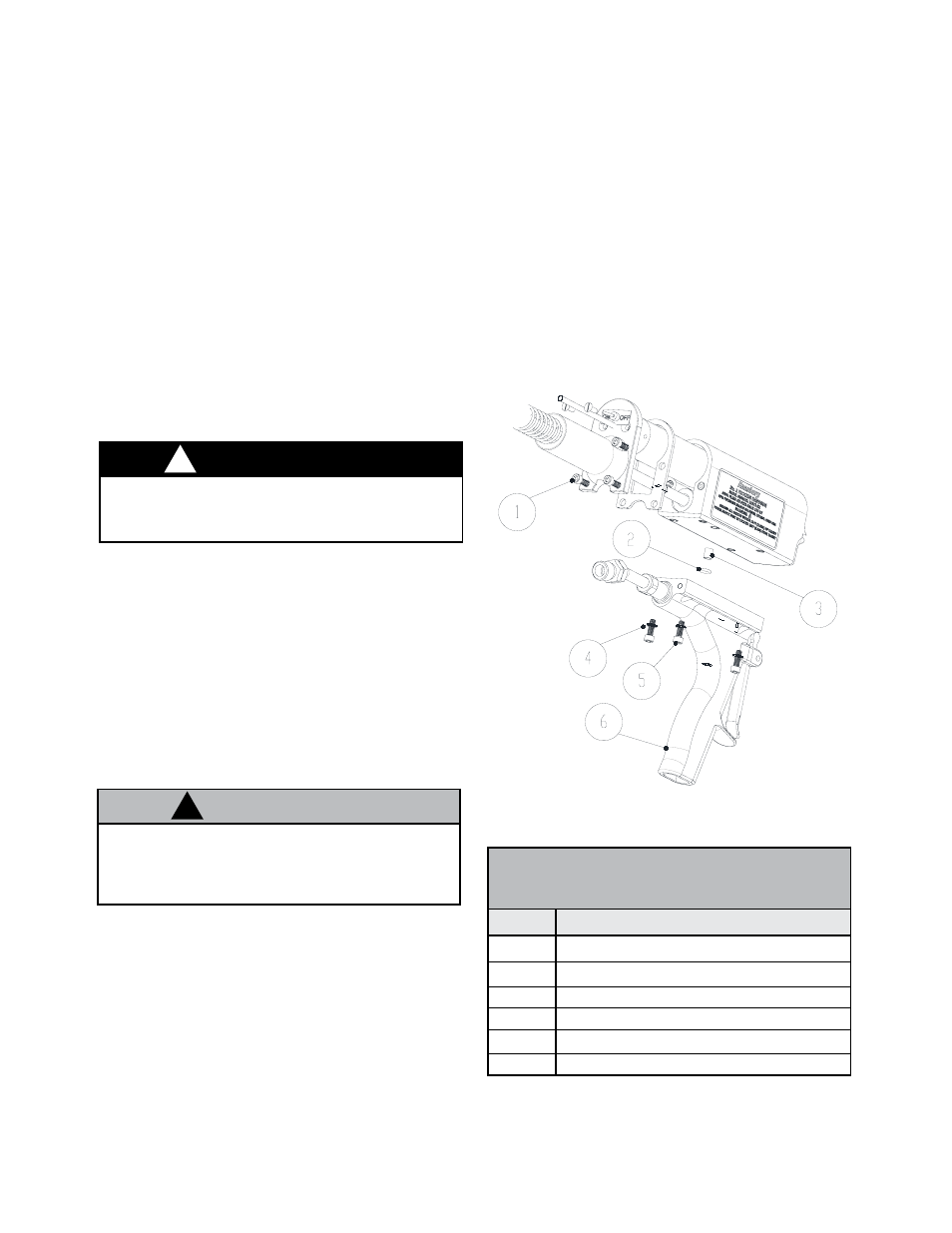

Figure 18: Handle Assembly Removal
C A U T I O N !
W A R N I N G !
Item #
1
2
3
4
5
6
HANDLE ASSEMBLY REMOVAL
(Figure 18)
Description
(2) Socket Head Screws
O-Ring
Bushing, Paint
(4) Lock Washers
(2) Socket Head Screws
Handle Assembly
