Cable/ eletric motor assembly, Ransburg – Ransburg No. 2 Process Handgun Electric Motor User Manual
Page 31
No. 2 Process Electric Motor Version - Maintenance
Ransburg
27
AH-13-01.1
Item #
1
2
3
4
5
6

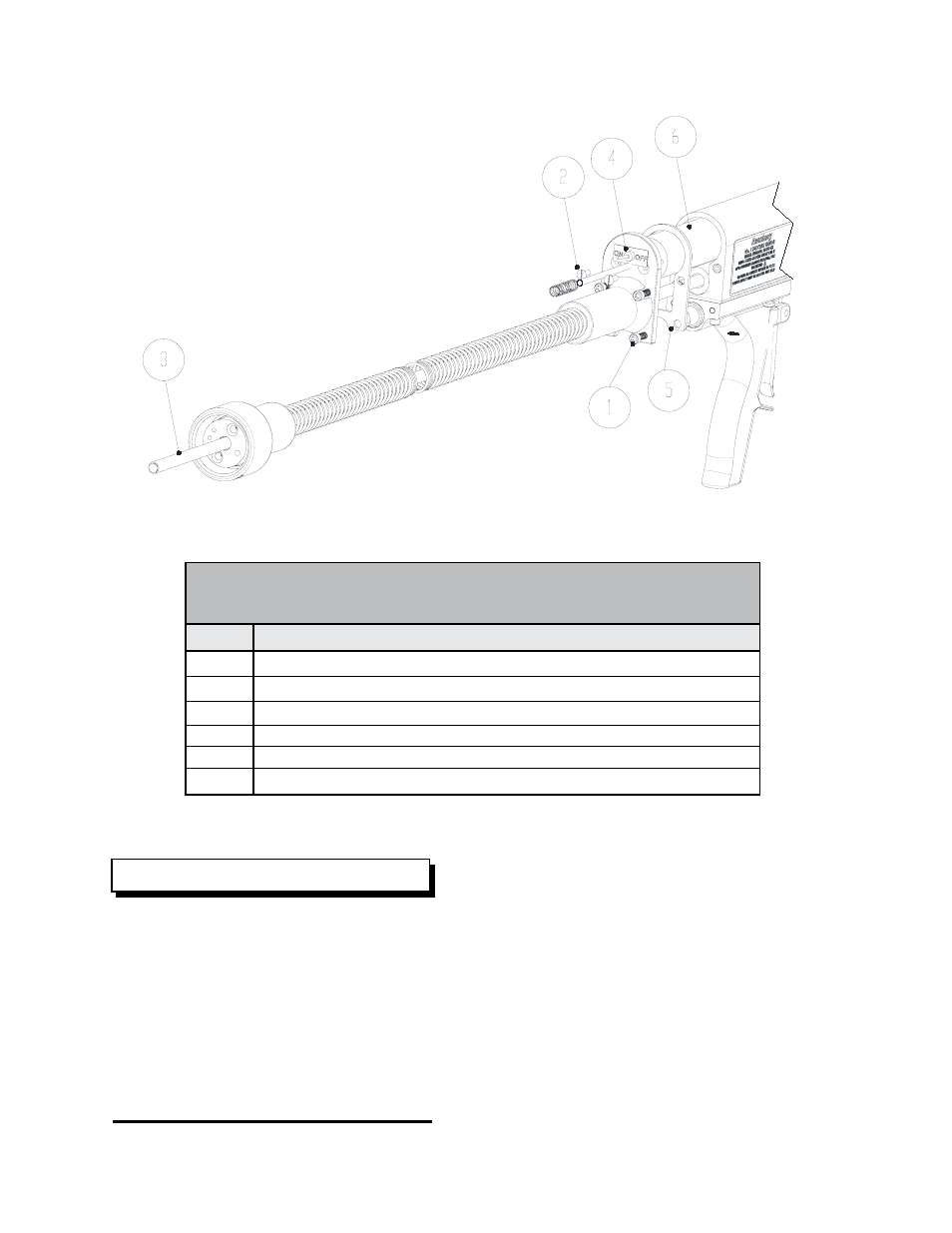

HIGH VOLTAGE CABLE AND ELECTRIC MOTOR
REMOVAL DIAGRAM
(Figure 17)
Description
(4) Socket Head Screws
(2) Slotted Head Screws
High Voltage Cable Assembly
Switch
Gasket
Electric Motor Assembly
NOTE
When spraying plural component
materials, the filter assembly should be
cleaned as soon as possible after spray-
ing has been completed.
Ransburg advises keeping extra paint
filter elements on hand. While one is be-
ing used, soak the other in the appropriate
solvent and change the filters out between
jobs.
Figure 17: High Voltage Cable and Electric motor Removal Diagram
CABLE/ ELETRIC MOTOR
ASSEMBLY
1. Remove the (4) socket head screws from the
rear of the applicator using a 9/64” hex key wrench.
2. Remove the two slot headed screws from the
assembly.
3. Pull the high voltage cable assembly straight
out of the assembly. The spacer, the gasket and
the electric motor will also pull out of the barrel.
