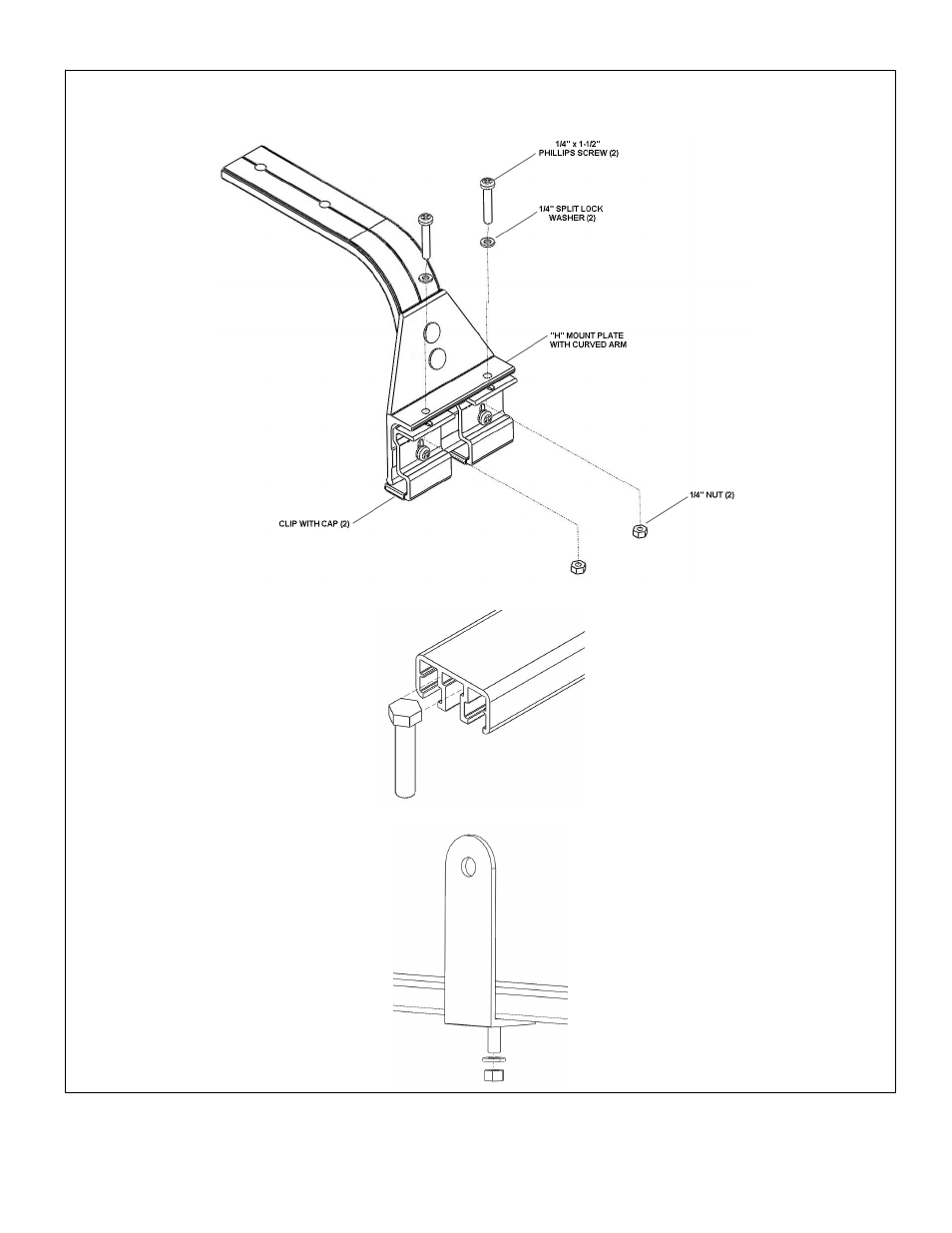

4. Loosely mount the adjuster bolt through the “H” mount plate and clip using (2) ¼” x 1-1/2” phillips screws, (2) ¼ split lock washers and (2) ¼”
nuts.
Do not tighten the screw as adjustments may need to be made when mounting to vehicle. Repeat for remaining mounts.
5. Assemble center load secure posts to crossbar by sliding (2) 3/8”-16 x 1-3/4” bolts into the center channel of the cross bar.
6. Mount the non labeled load secure posts to the crossbar so that the flat of the load secure post is against the side of the cross bar. Secure with
3/8” split lock washer and 3/8”-16 nut. Repeat for other load secure post.
